AR27.19-P-0200A Remove/Install Electrohydraulic Control Unit

REMOVAL
1. Place selector lever in position "P"
2. Remove transmission connector shield if equipped, then disconnect 13-pin connector
3. Loosen 13 pin connector guide bush and remove from transmission housing
4. Drain transmission oil by unscrewing oil drain plug
5. Detach oil pan
6. Remove transmission oil filter
7. Unscrew Torx socket head retaining bolts and remove electric hydraulic control module

INSTALLATION
- Install in reverse order, noting the following information:

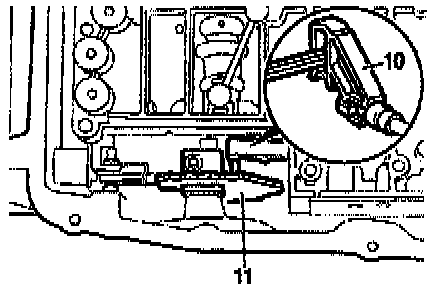

- When installing the electrohydraulic control module into the transmission housing, the plastic part of the selector valve (10) must engage the driver of the dentent plate (11)
- Tighten the following components as noted:
- Oil drain plug on torque converter: 20 Nm
- Bolt, oil pan to transmission housing: 8 Nm
- Bolt, electrohydraulic control module to transmission body: 8 Nm
- Fill transmission with suitable oil and check level.
