AR27.19-P-0200-01A Insert Selector Valve Into Driver of Detent Plate



AR27.19-P-0200-01A Insert Selector Valve Into Driver of Detent Plate

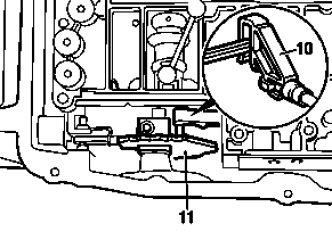

1 When inserting electrohydraulic control unit into transmission housing, plastic part of selector valve (10) must engage in driver of detent plate (11).
