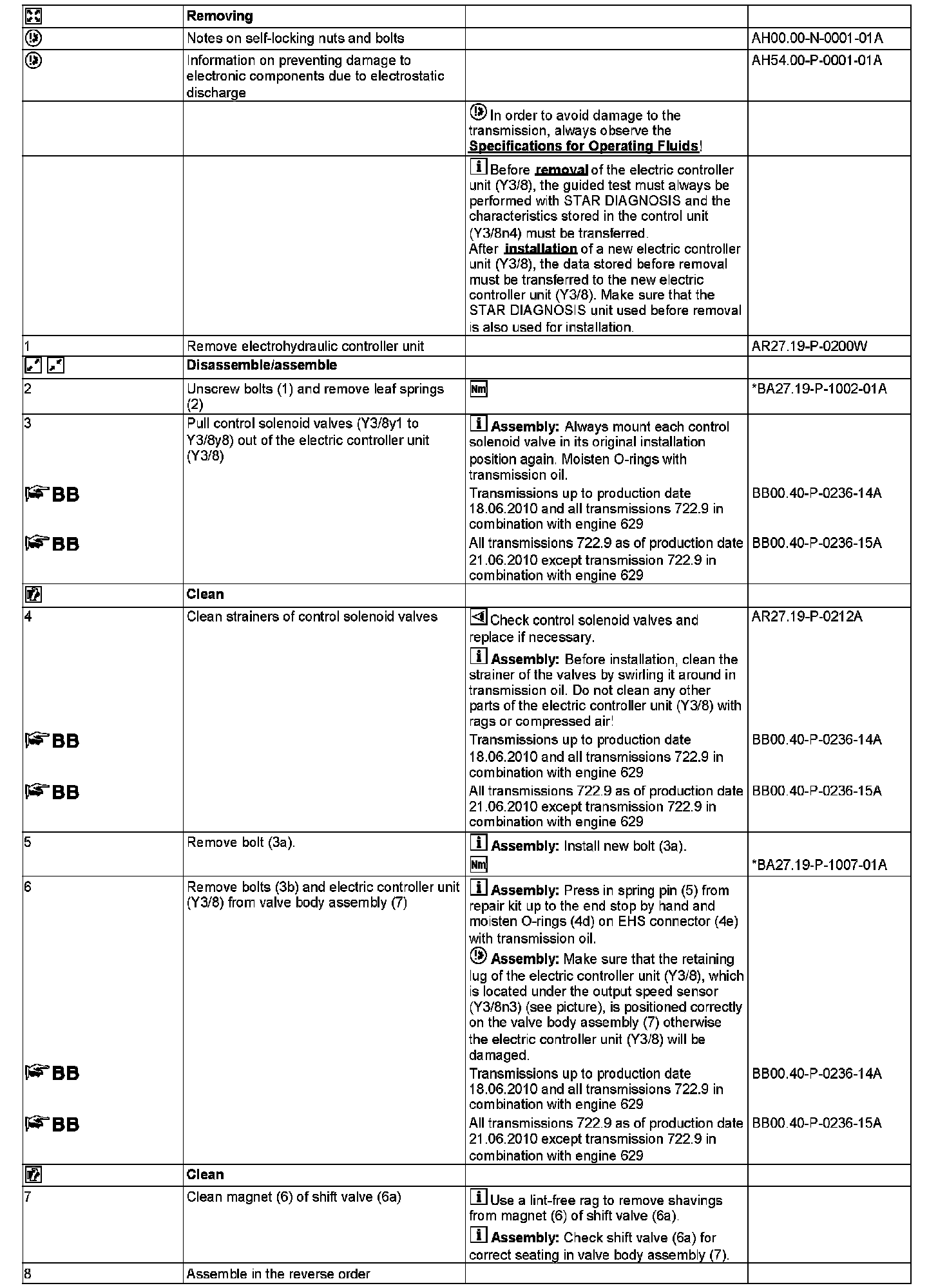

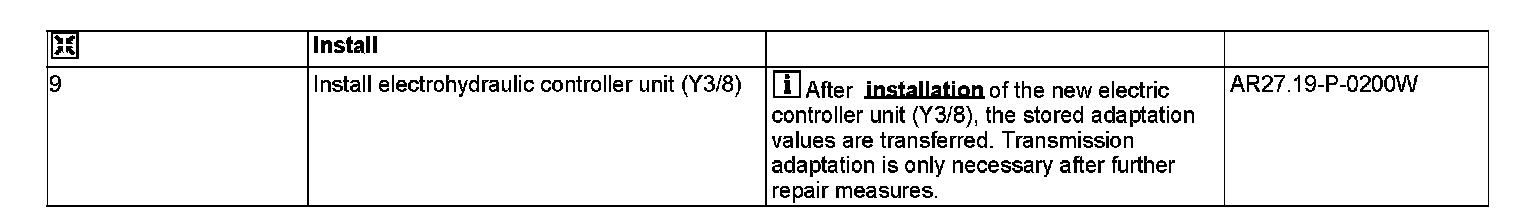

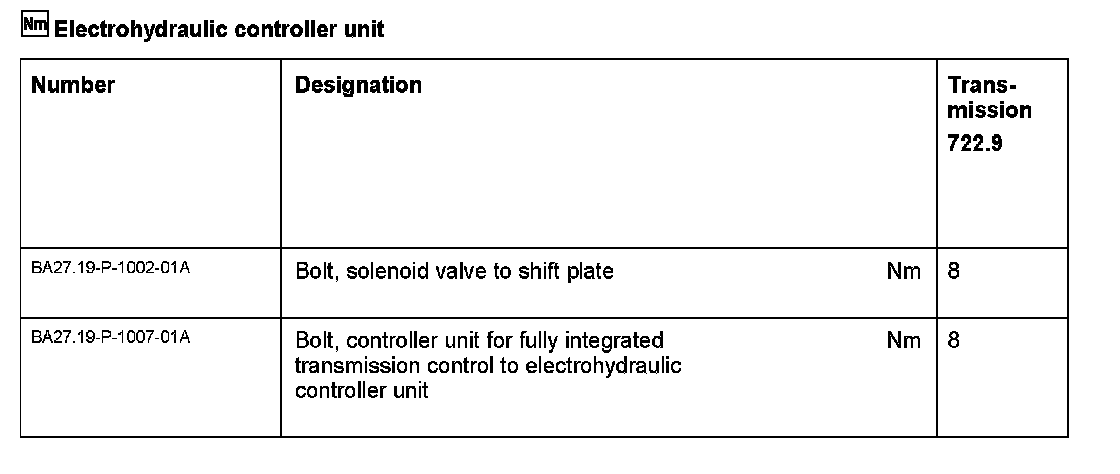

AR27.19-P-0220B Disassemble and Assemble Electrohydraulic Controller Unit

AR27.19-P-0220B Disassemble and Assemble Electrohydraulic Controller Unit
TRANSMISSION 722.9

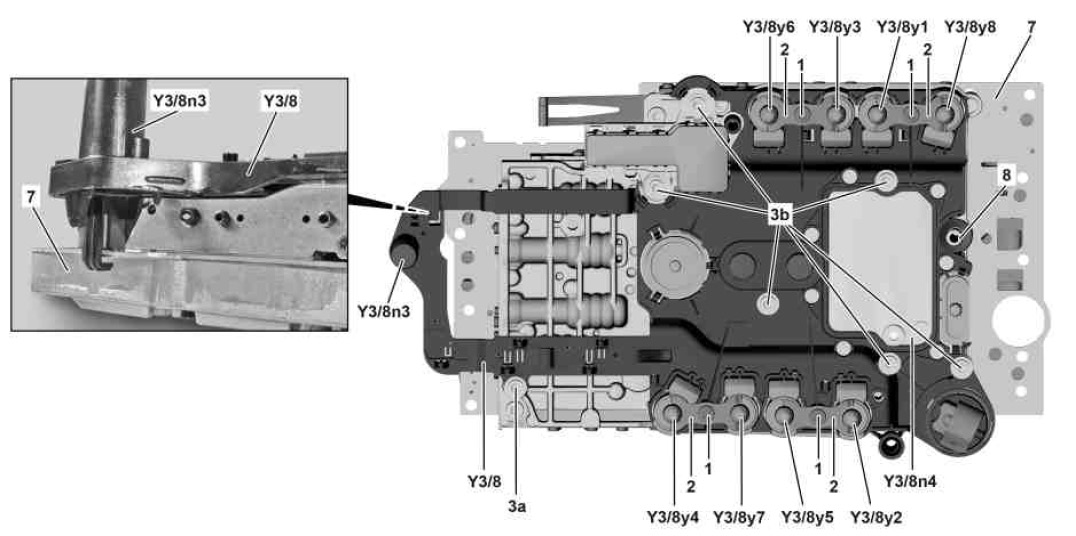

Electrohydraulic controller unit, model 221

1 Screw
2 Leaf spring
3a Screw
3b Screw
7 Shift plate
Y3/8 Electric control unit (VGS)
Y3/8n3 Output speed sensor (VGS)
Y3/8n4 Fully integrated transmission control (VGS) control unit
Y3/8y1 Working pressure control solenoid valve (VGS)
Y3/8y2 Clutch control solenoid valve K1 (VGS)
Y3/8y3 Clutch control solenoid valve K2 (VGS)
Y3/8y4 Clutch control solenoid valve K3 (VGS)
Y3/8y5 Brake control solenoid valve B1 (VGS)
Y3/8y6 Brake control solenoid valve B2 (VGS)
Y3/8y7 Brake control solenoid valve B3 (VGS)
Y3/8y8 Torque converter lockup clutch control solenoid valve (VGS)

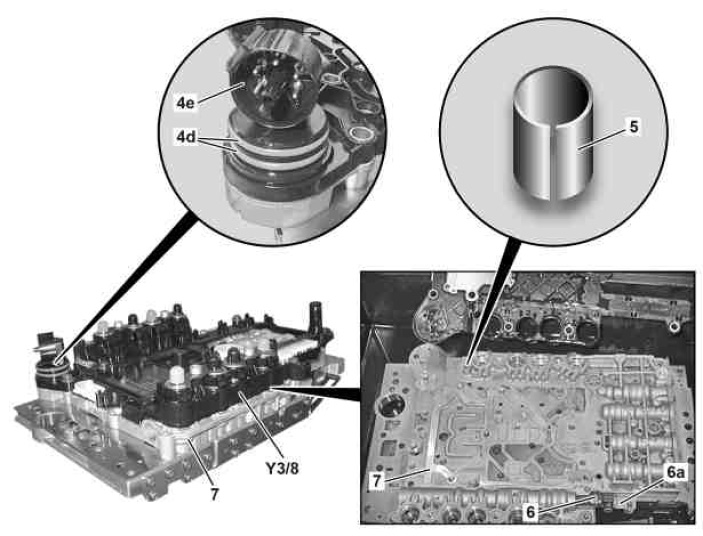

Electrohydraulic controller unit, model 221

4d O-rings
4e EHS connector
5 Roll pin
6 Magnet
6a Shift valve
7 Shift plate

Y3/8 Electric control unit (VGS)
