GF27.20-P-5101G Torque Converter Lockup Clutch, Location/Task/Design/Function



GF27.20-P-5101G Torque converter lockup clutch, location/task/design/function
- TRANSMISSION 722.6 in MODELS 129, 140, 163, 170, 202, 208, 209, 210
- TRANSMISSION 722.6 in MODELS 215, 220
- except CODE (479) Cylinder shutoff
- TRANSMISSION 722.6 in MODELS 203, 230
- up to Model Year 8

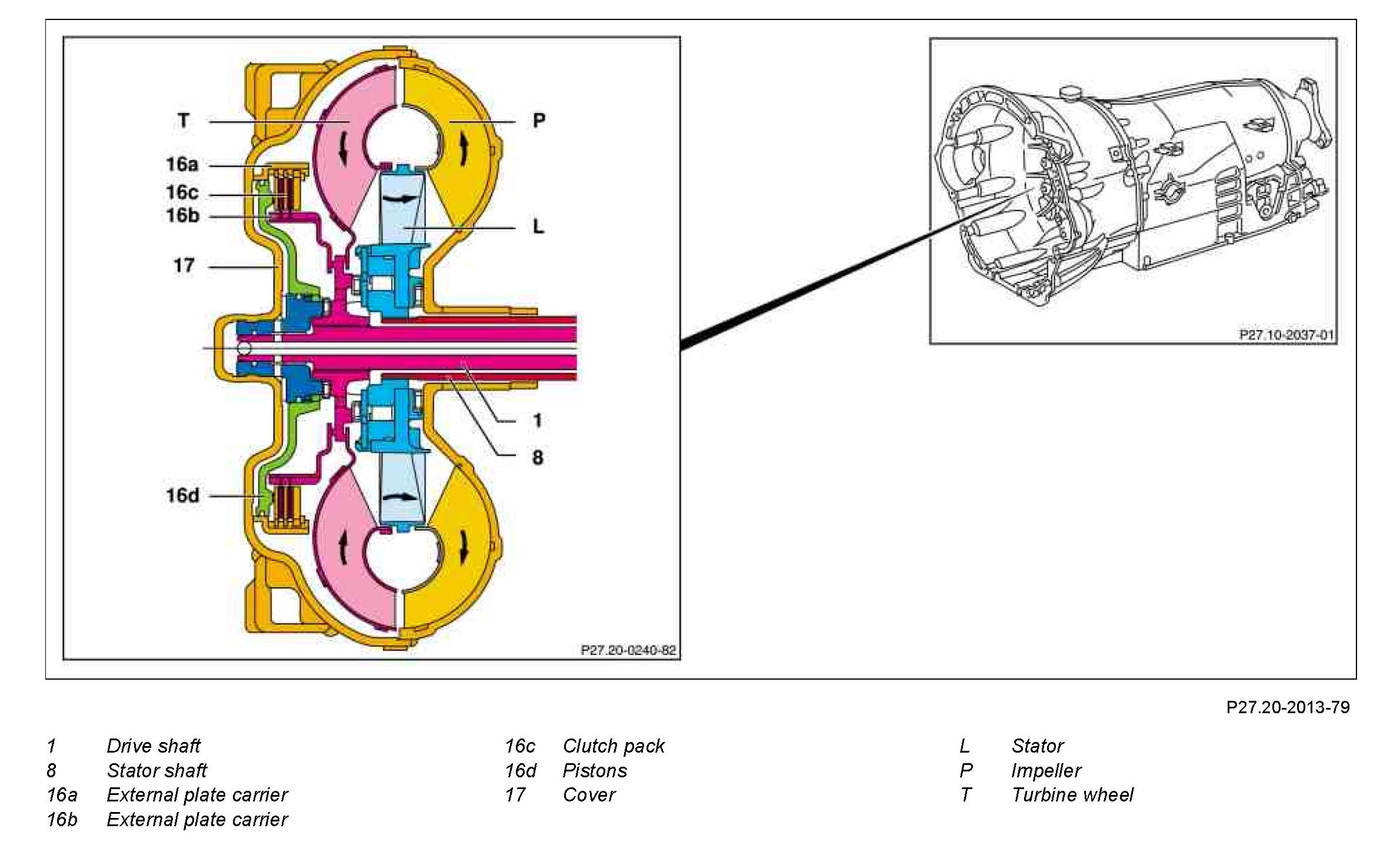

Component Identification:

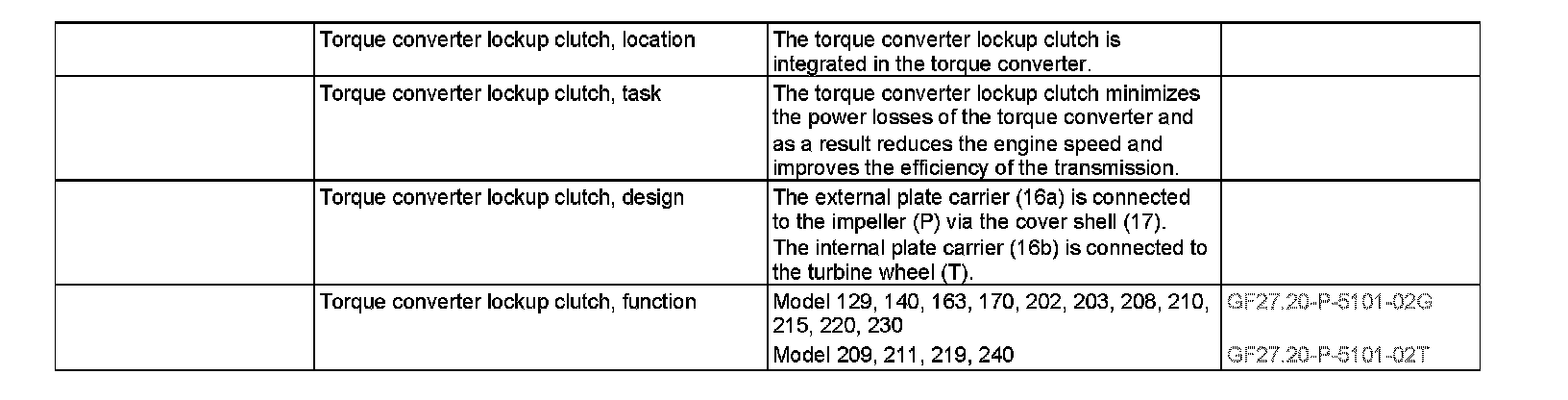

Torque converter lockup clutch:
