GF27.20-P-5100N Torque Converter, Location/Task/Design/Function
GF27.20-P-5100N Torque Converter, Location/Task/Design/Function

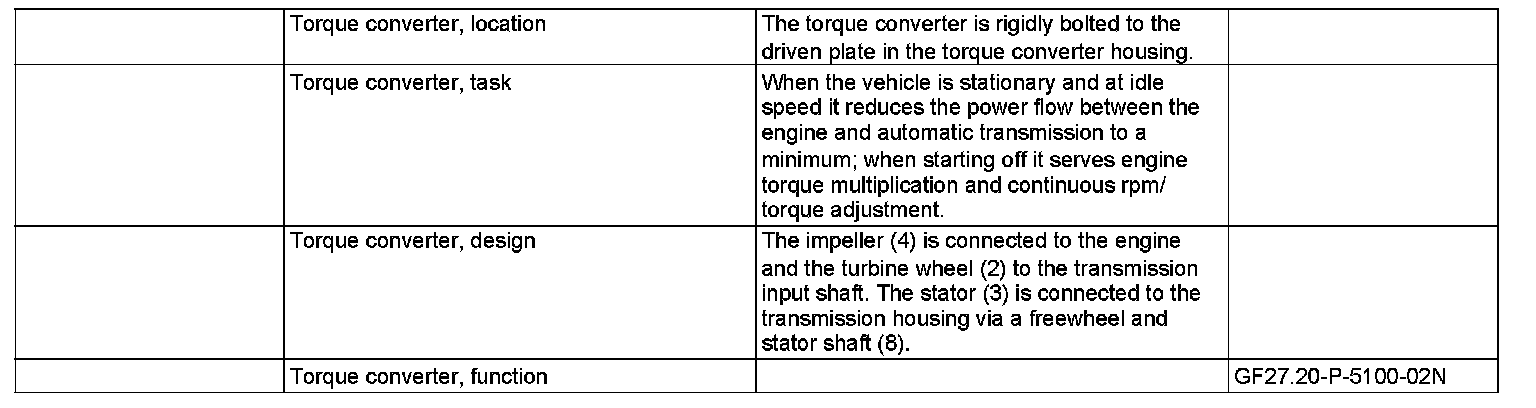

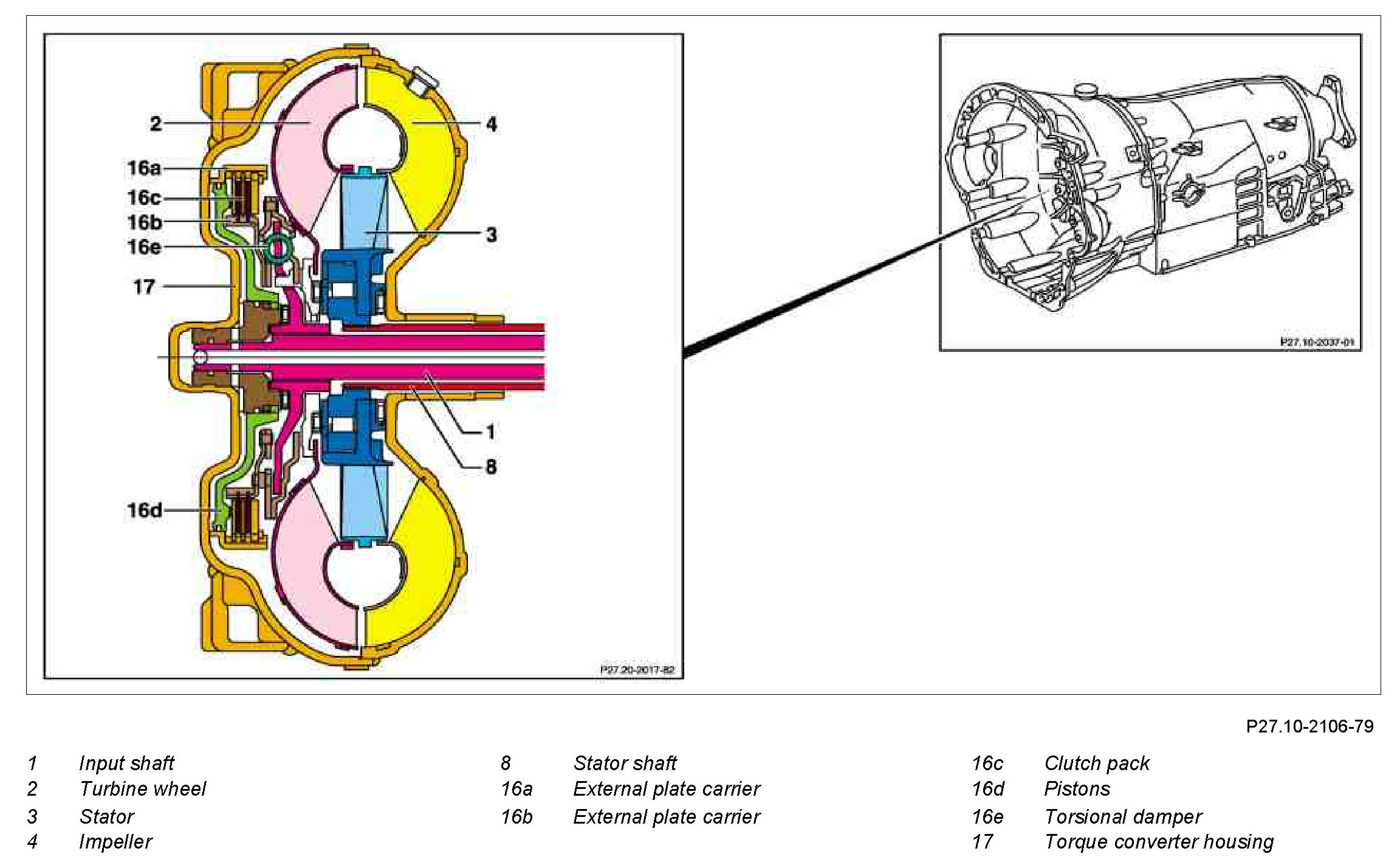

GF27.20-P-5100N Torque converter, location/task/design/function
- TRANSMISSION 722.9
