AR27.20-P-0100-01A Detach/Attach Torque Converter on Driver

AR27.20-P-0100-01A Detach/Attach Torque Converter on Driver








001 589 65 09 00
Wrench socket





115 589 03 59 00
Long wedge





Detaching
To unscrew or screw in do not use an impact wrench or compressed-air tool, otherwise the threaded unions in the driven plate will be damaged.

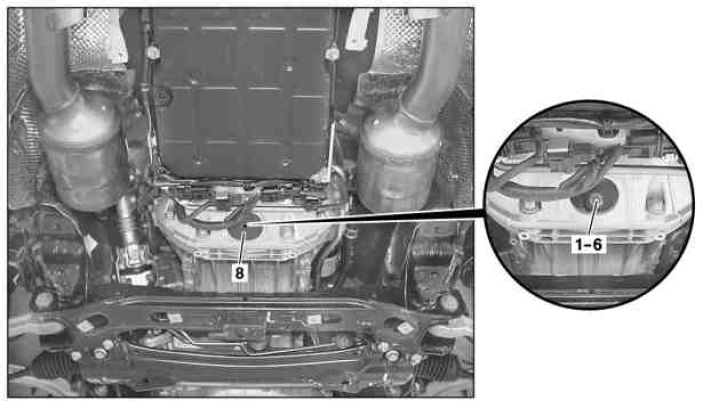

1 Remove cover (8).
2 Remove bolts (1 to 4 or 1 to 6) of the torque converter from the driven plate.
Continue turning the engine in the direction of engine rotation using socket on the crankshaft center bolt. If the center bolt is not accessible, continue turning the torque converter using a wide screwdriver.





Checking

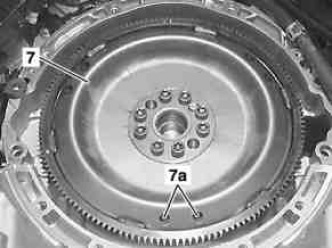

3 Check driven plate (7) for damage.
The driven plate (7) must be replaced if the threaded unions (7a) are damaged or loose.

Attaching
4 Mount torque converter (9) on driven plate (7).
Replace bolts (1 to 4 or 1 to 6).

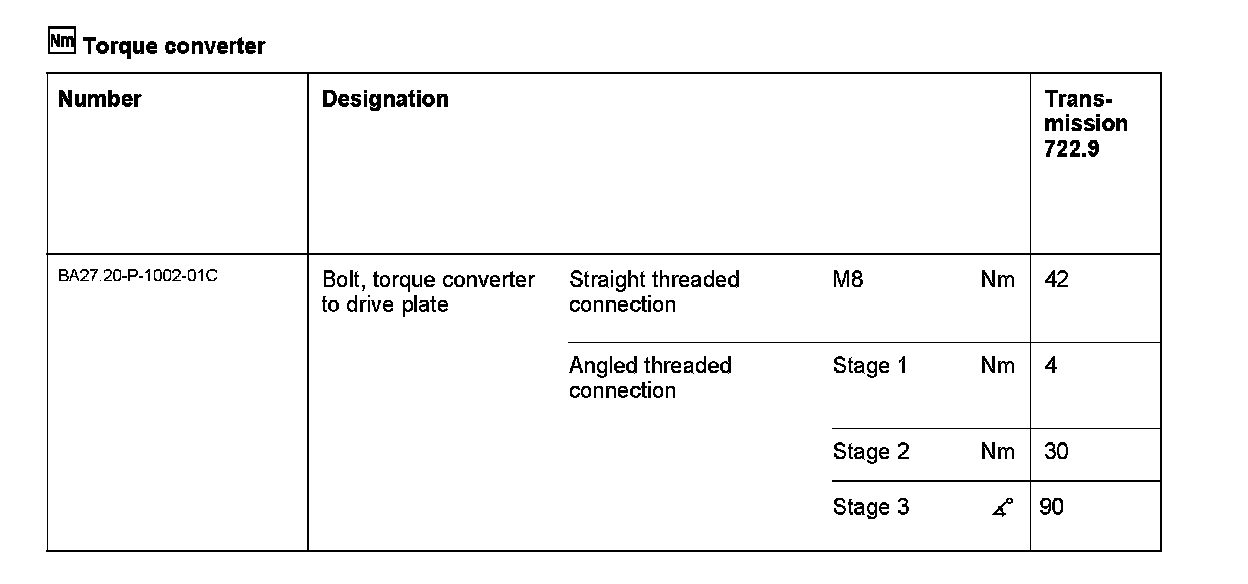

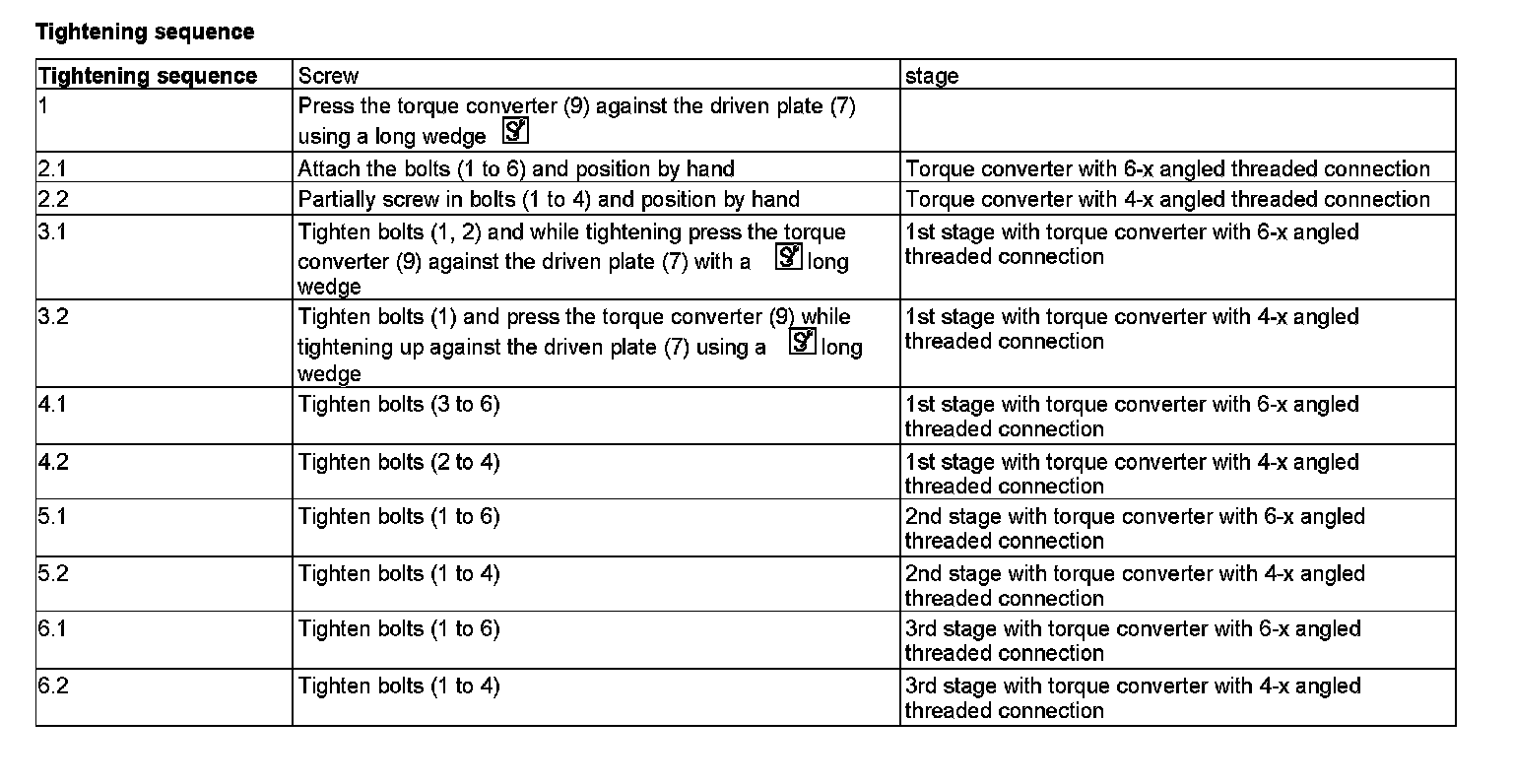

Observe tightening sequence, tightening torque and numerical sequence, otherwise the torque converter (9) or the driven plate (7) will be damaged.

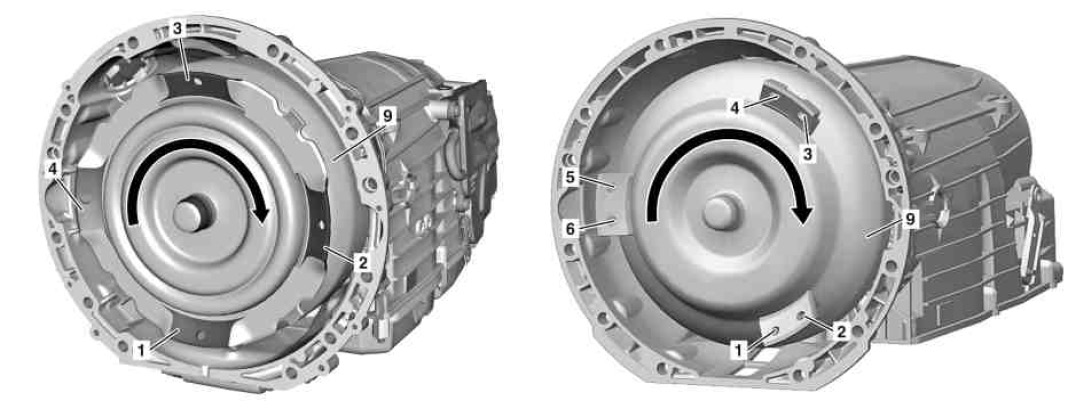

Torque converter with 4-x angled threaded connection
1 to 4 Screw
9 Torque converter

Torque converter with 6-x angled threaded connection
1 to 6 Screw
9 Torque converter
