Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Procedures >> Transmission 722.9

Transmission 722.9

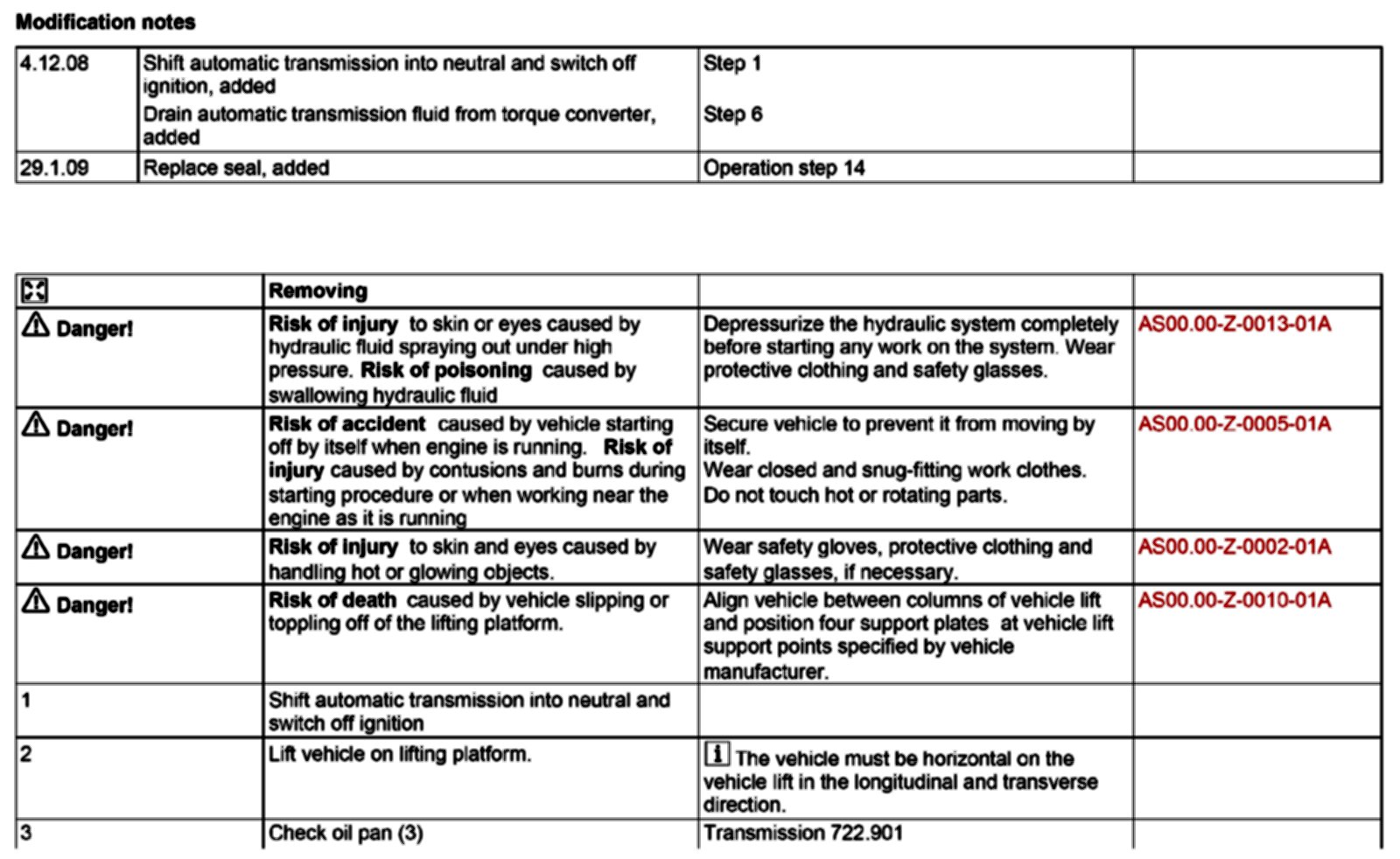

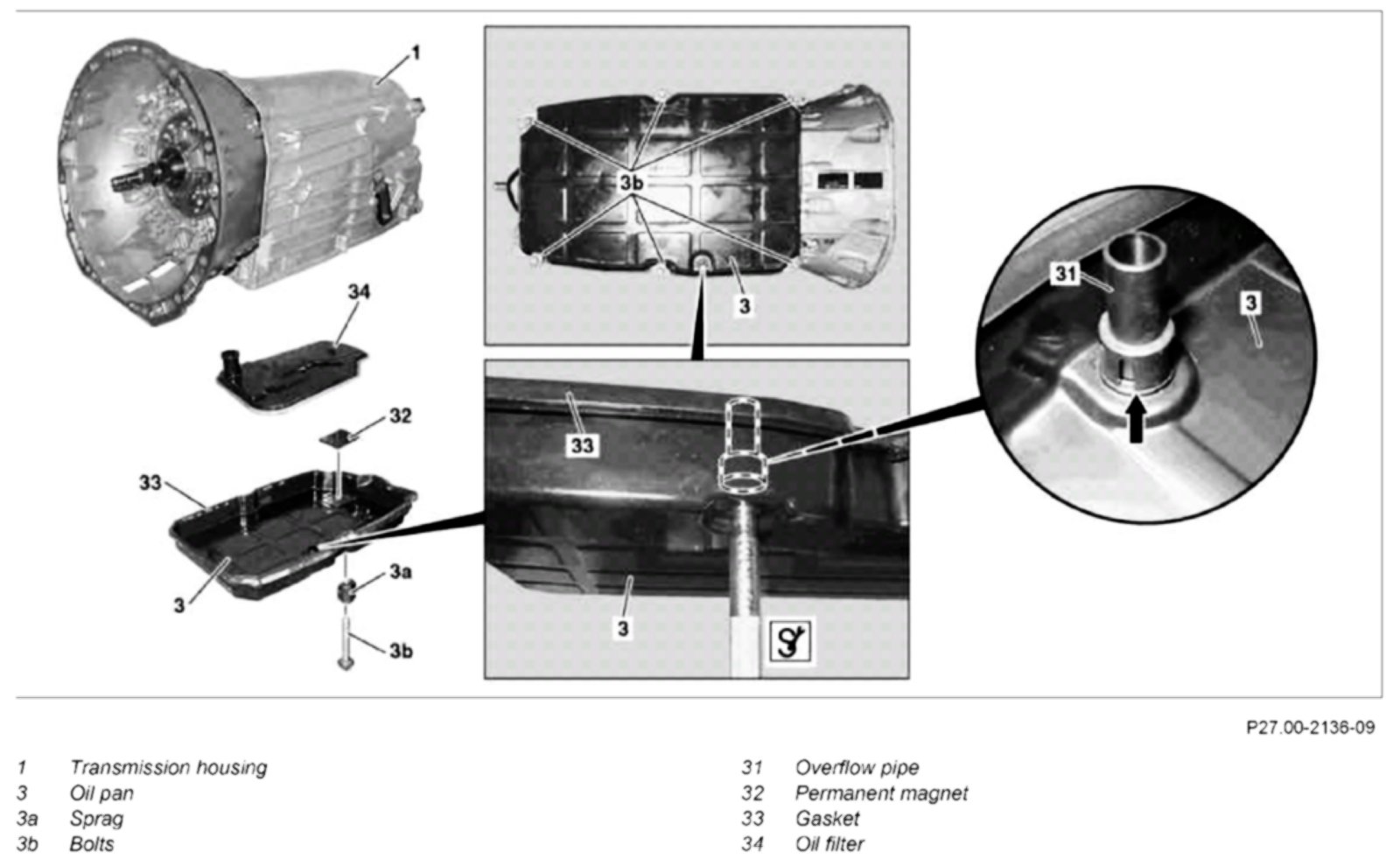

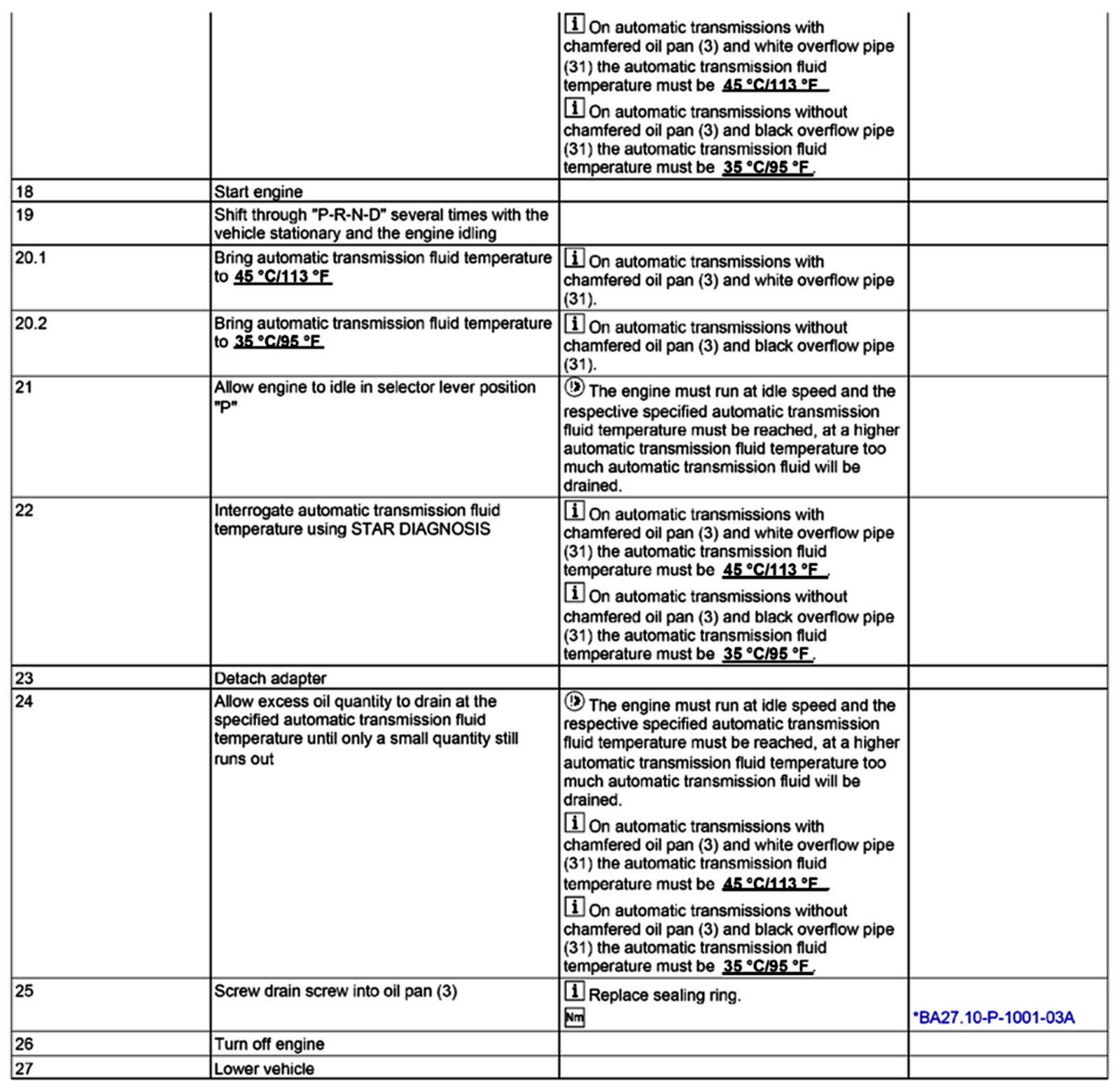

AP27.00-P-2702W Automatic transmission - oil and filter change
- with transmission 722.9
