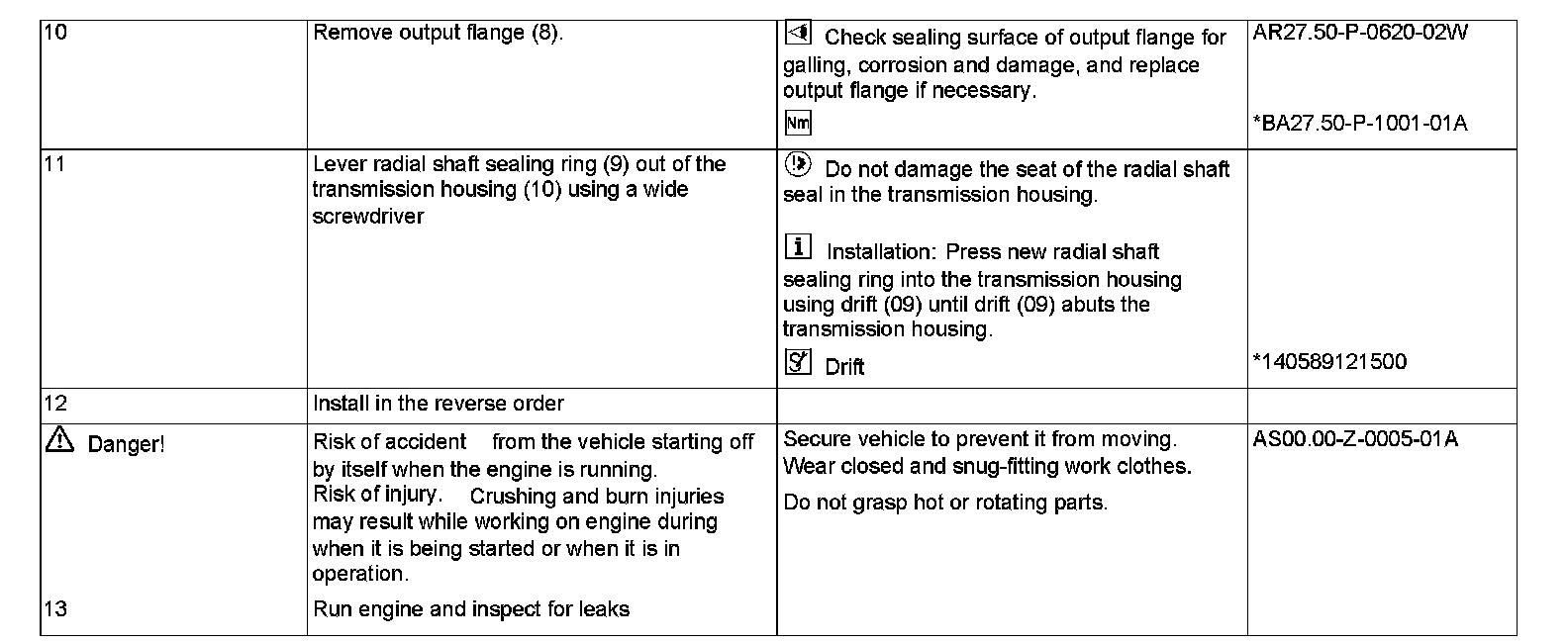

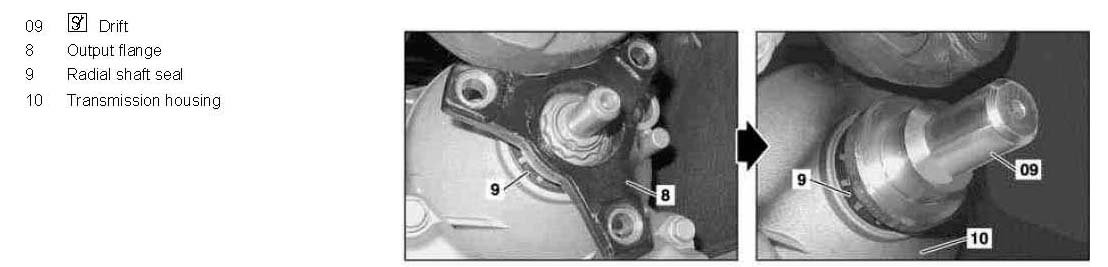

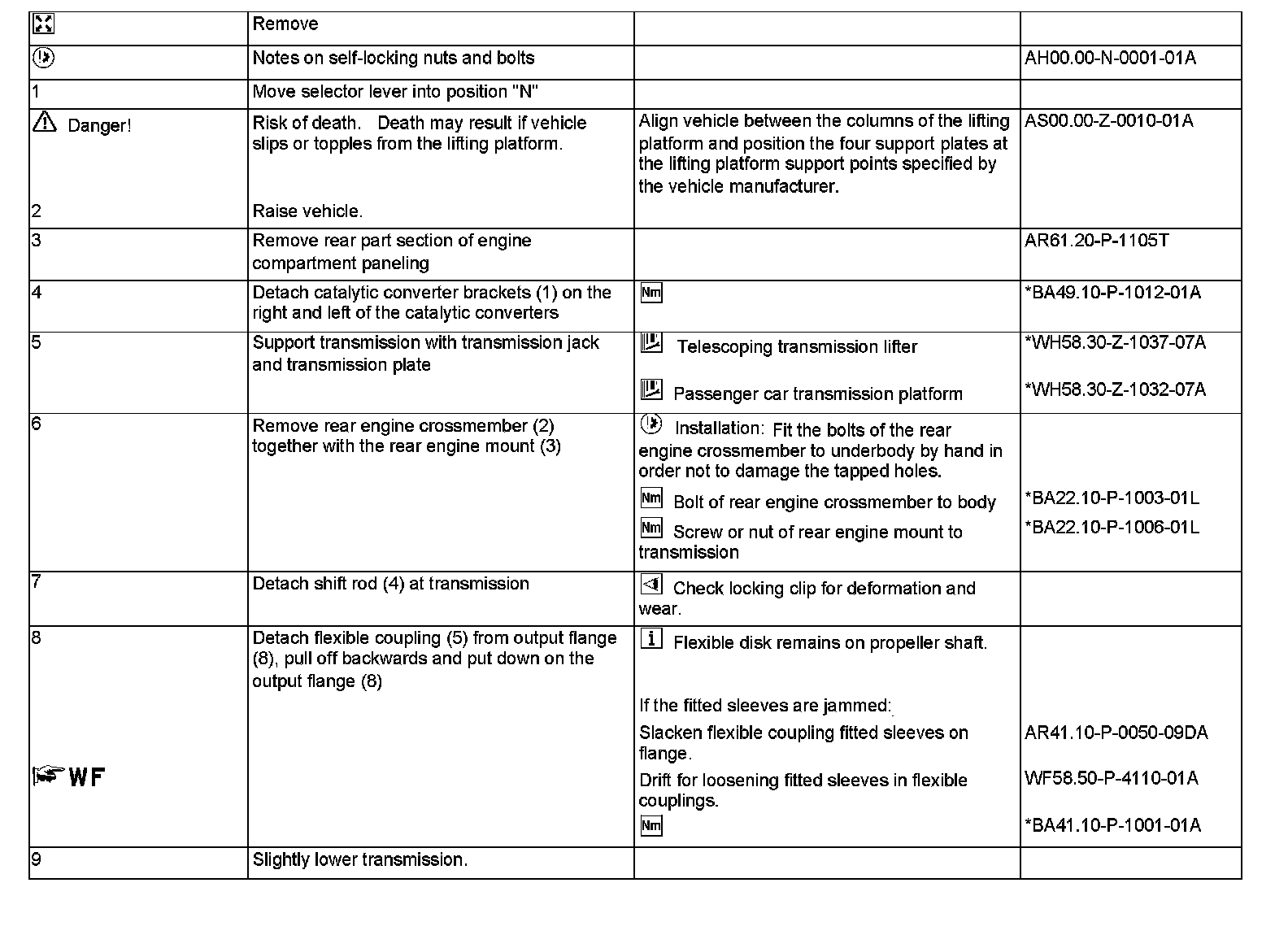

AR27.40-P-0205T Remove/Install Radial Shaft Seal at Output Flange




AR27.40-P-0205T Remove/Install Radial Shaft Seal at Output Flange

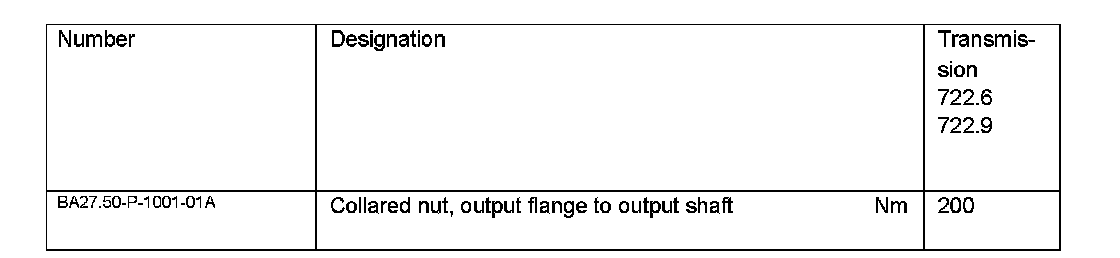

- Transmission 722.9






























Gear assembly:
