AR27.30-P-4970TI Remove/Install Radial Shaft Sealing Ring On Front Transmission Cover



AR27.30-P-4970TI Remove/install radial shaft sealing ring on front transmission cover
- Transmission 722.9

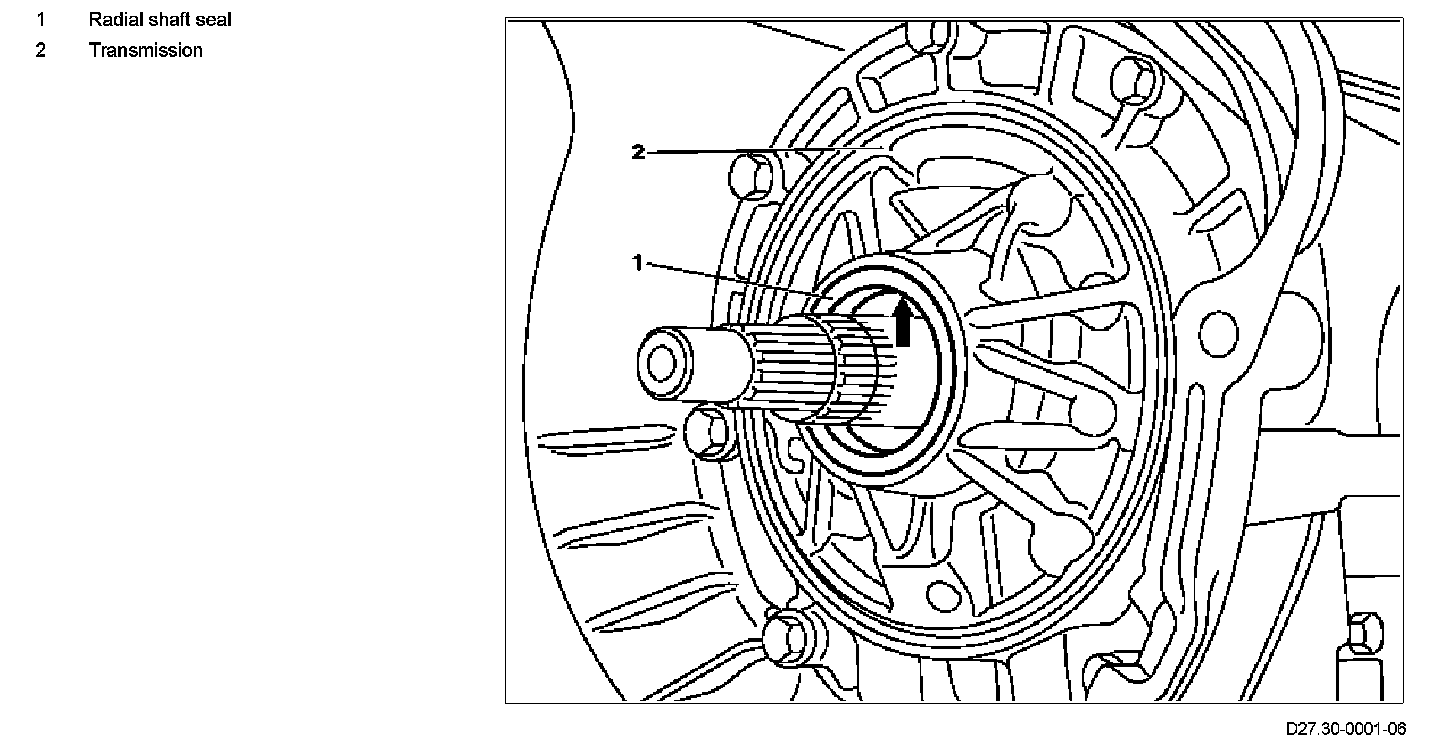

Component Identification:

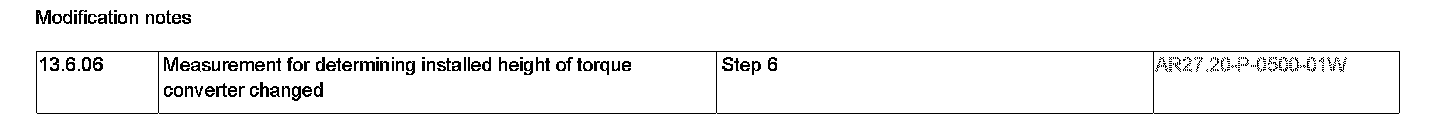

Modification notes:

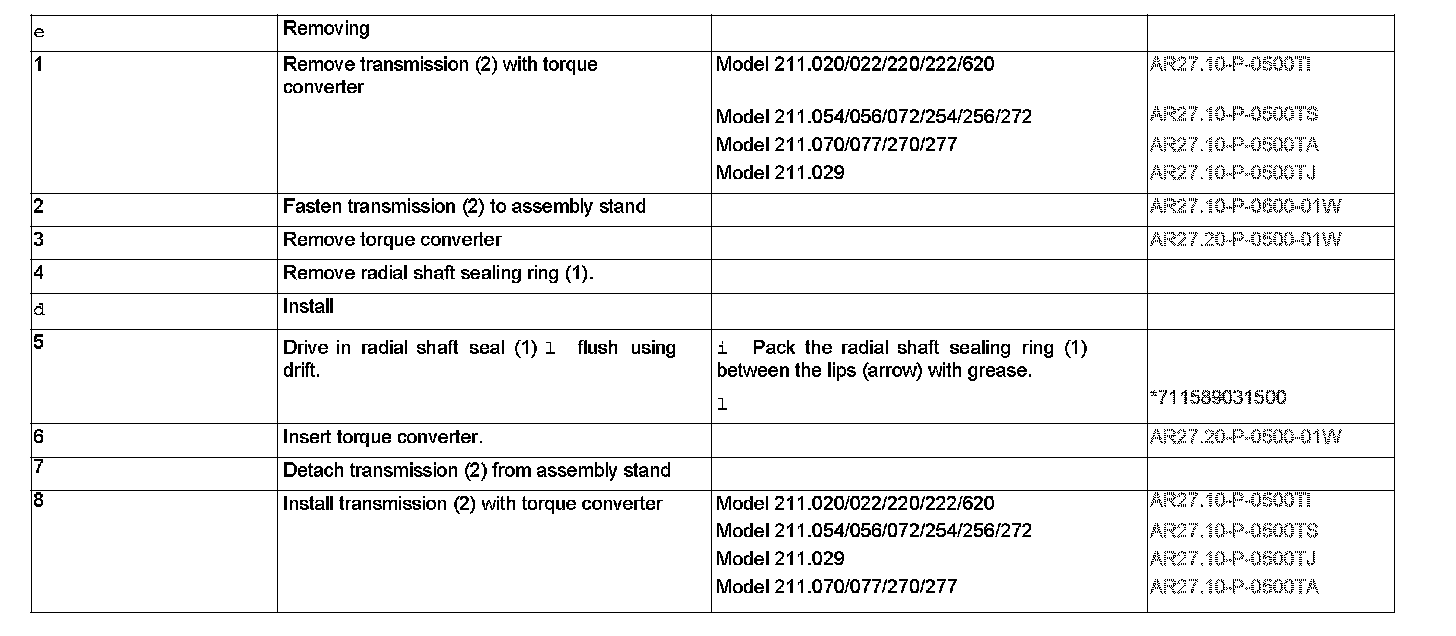

Steps 1-8:

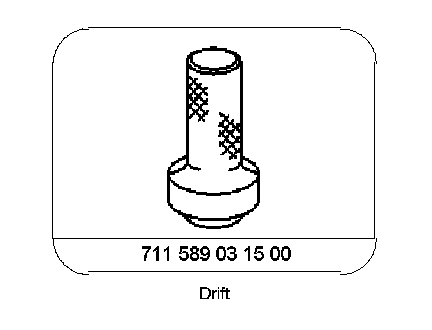

Special Tools:
