AR27.10-P-7030W Remove/Install Automatic Transmission Oil Pan




AR27.10-P-7030W Remove/Install Automatic Transmission Oil Pan
TRANSMISSION 722.9

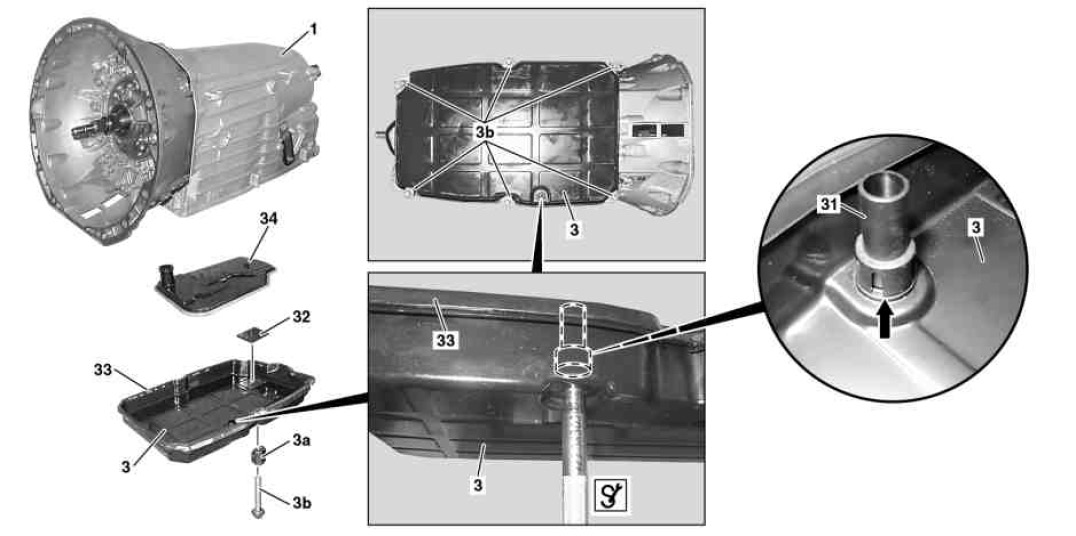

Illustration shows transmission oil pan without sloped surface and with black overflow tube

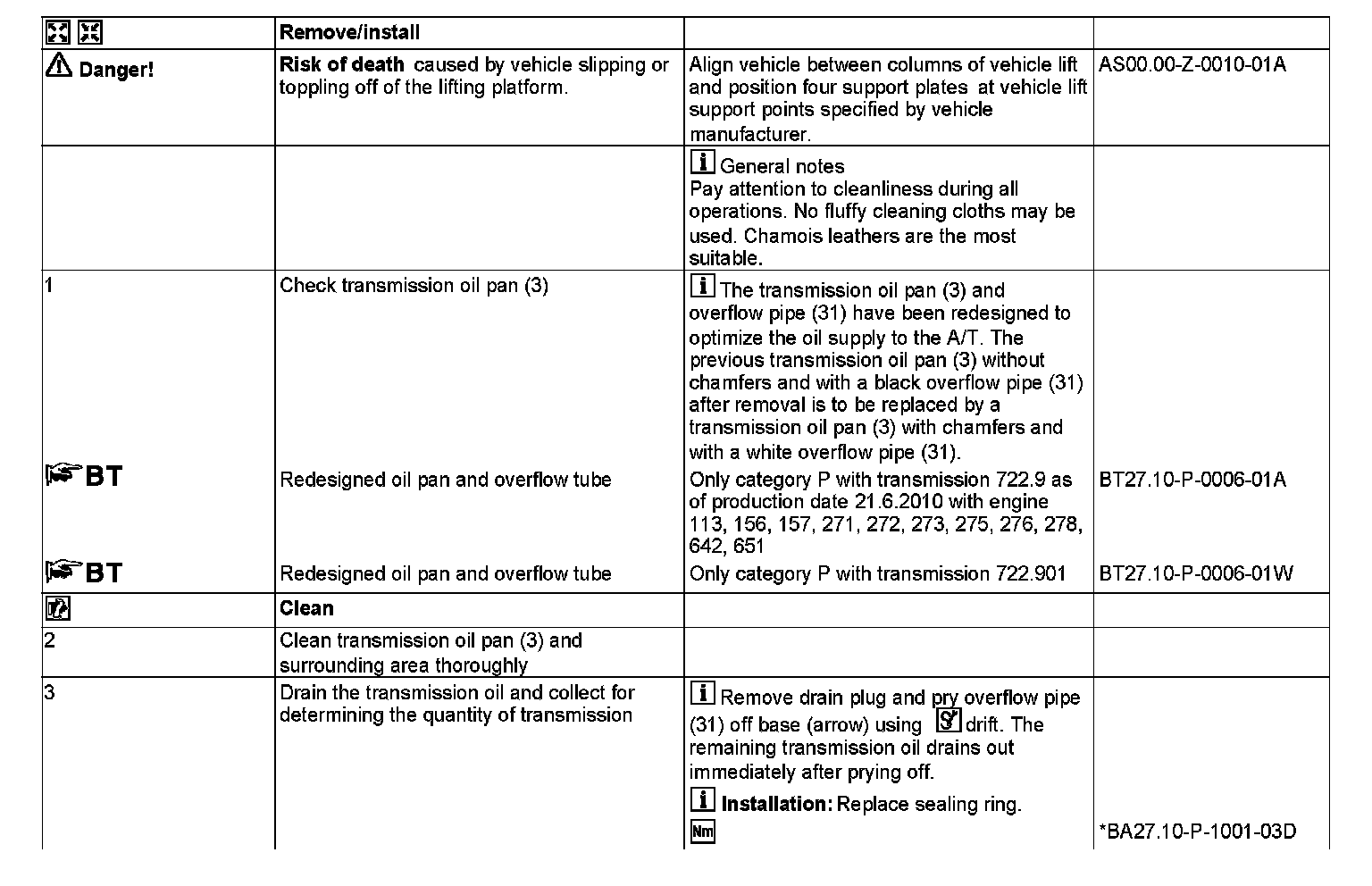

1 Transmission housing
3 Transmission oil pan
3a Sprag
3b Bolts
31 Overflow pipe
32 Magnet
33 Gasket
34 Oil filter

















722 589 03 15 00
Drift
