Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Fluid - A/T >> Service and Repair >> Procedures >> Transmission 722.5

Transmission 722.5

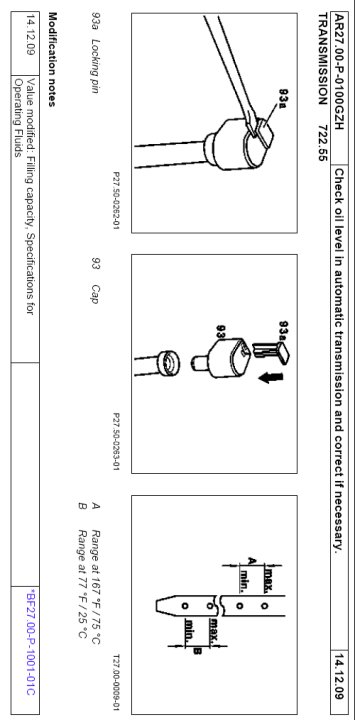

Check Oil Level in Automatic Transmission and Correct if Necessary




Transmission 722.55

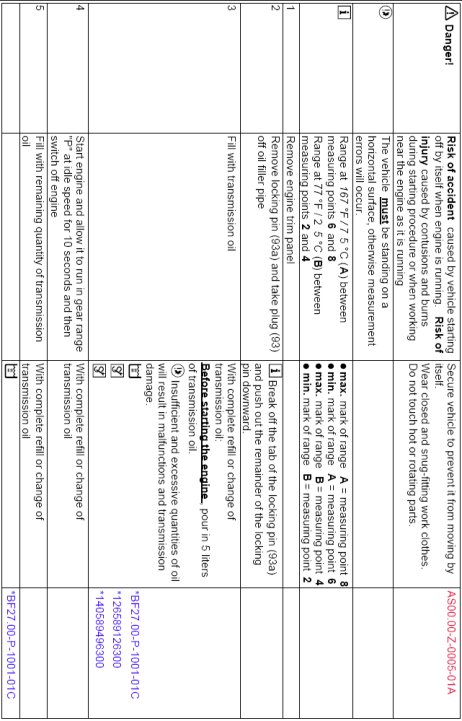

Steps 1 - 5

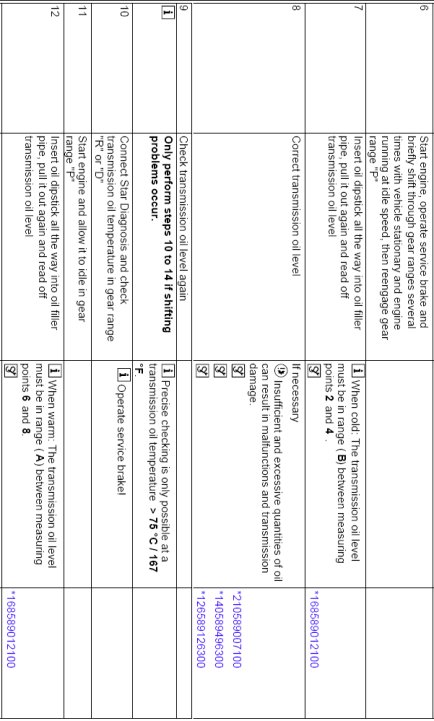

Steps 6 - 12

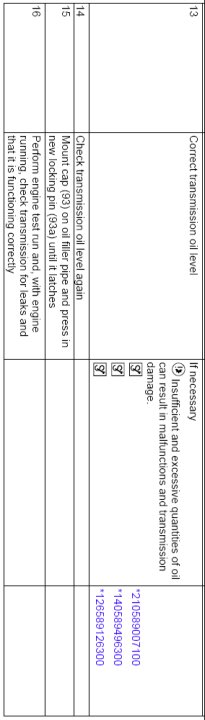

Steps 13 - 16

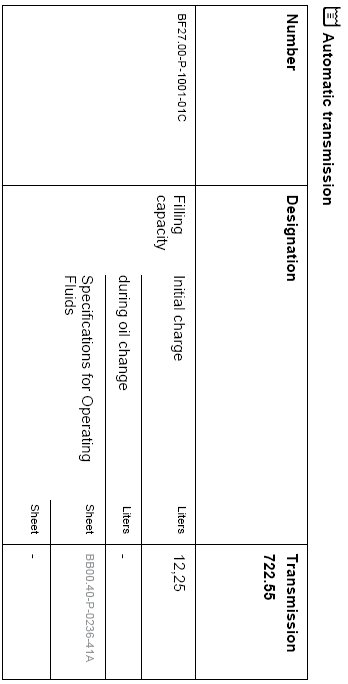

Filing Capacity




Tools
