GF27.60-P-5137G Overlap Regulating Valve, Location/Task/Function

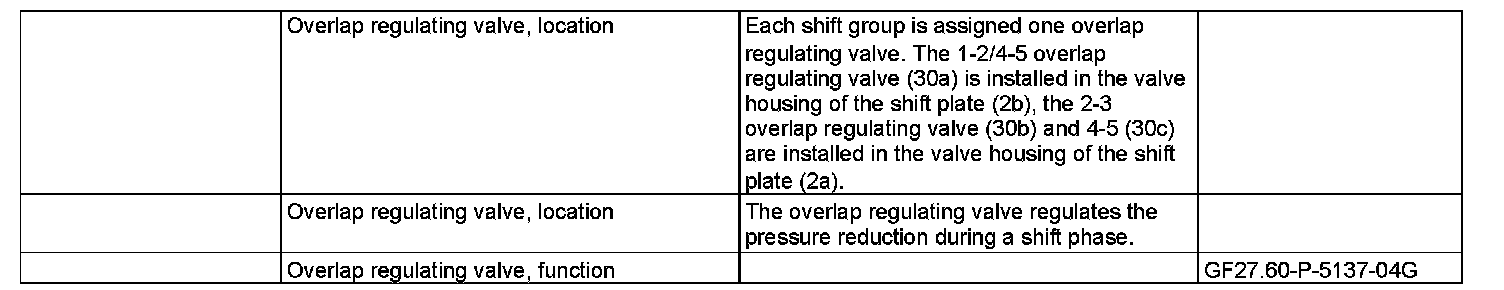

GF27.60-P-5137G Overlap regulating valve, location/task/function
- TRANSMISSION 722.6

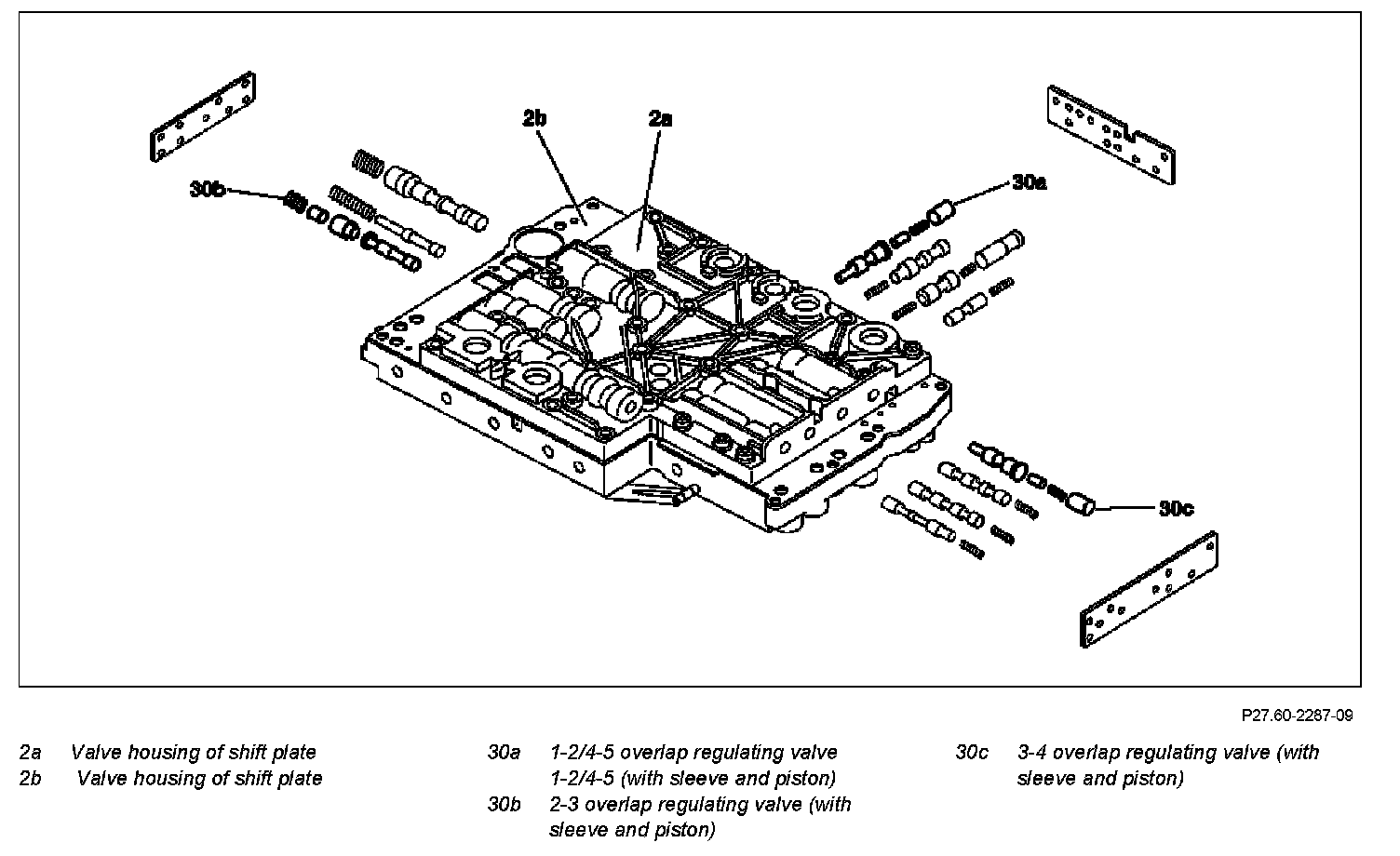

Component Identification:
