GF27.60-P-5103P R/P Lock, Location/Task/Design/Function
GF27.60-P-5103P R/P Lock, Location/Task/Design/Function

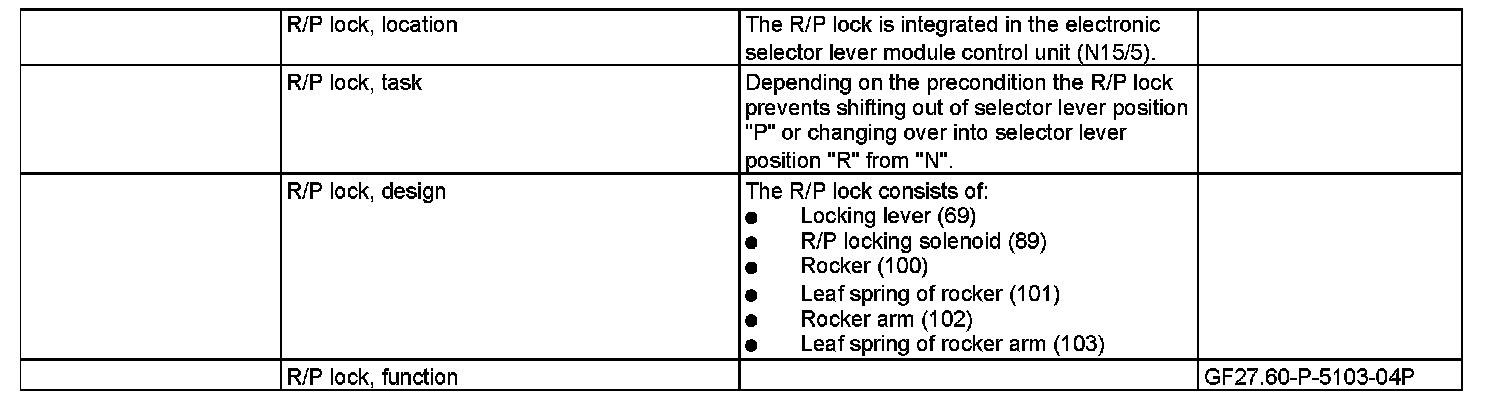

GF27.60-P-5103P R/P lock, location/task/design/function
- TRANSMISSION 722.6

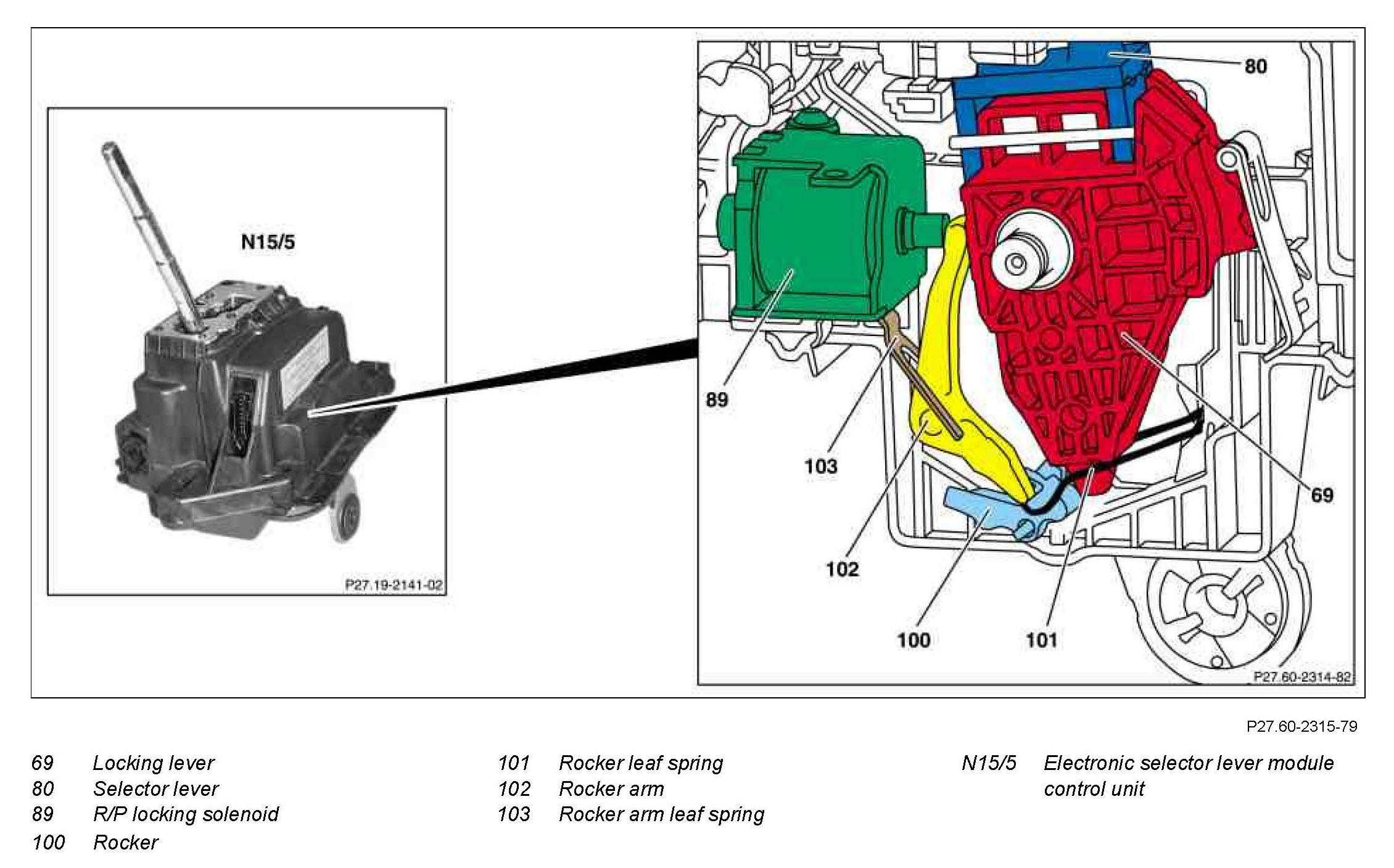

Component Identification:
