Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation >> GF27.20-P-5101N Location/Task/Design/Function of Torque Converter Lockup Clutch

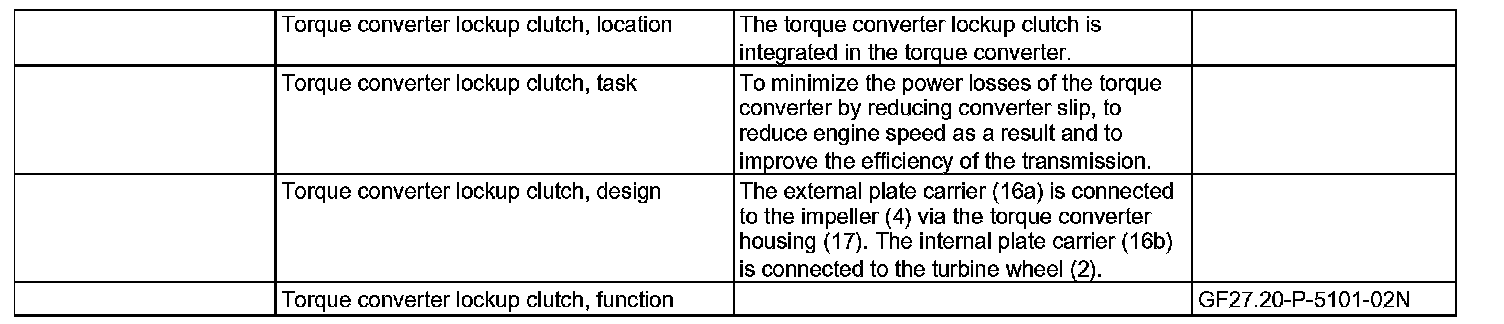

GF27.20-P-5101N Location/Task/Design/Function of Torque Converter Lockup Clutch



GF27.20-P-5101N Location/task/design/function of torque converter lockup clutch
- TRANSMISSION 722.9

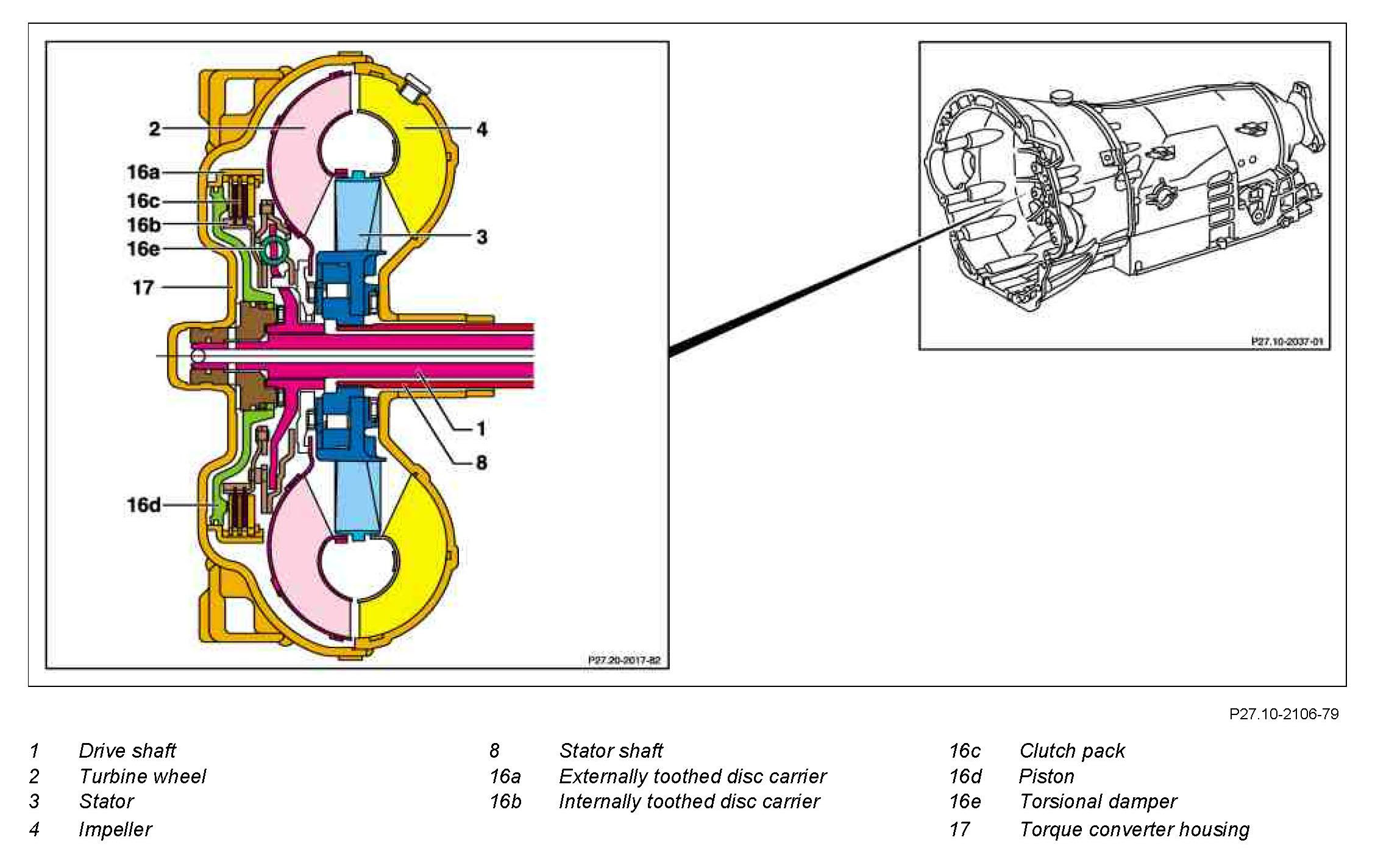

Component Identification:
