GF27.19-P-5138-03P Electronic Selector Lever Module Control Unit, Design



GF27.19-P-5138-03P Electronic selector lever module control unit, design
- Transmission 722.6

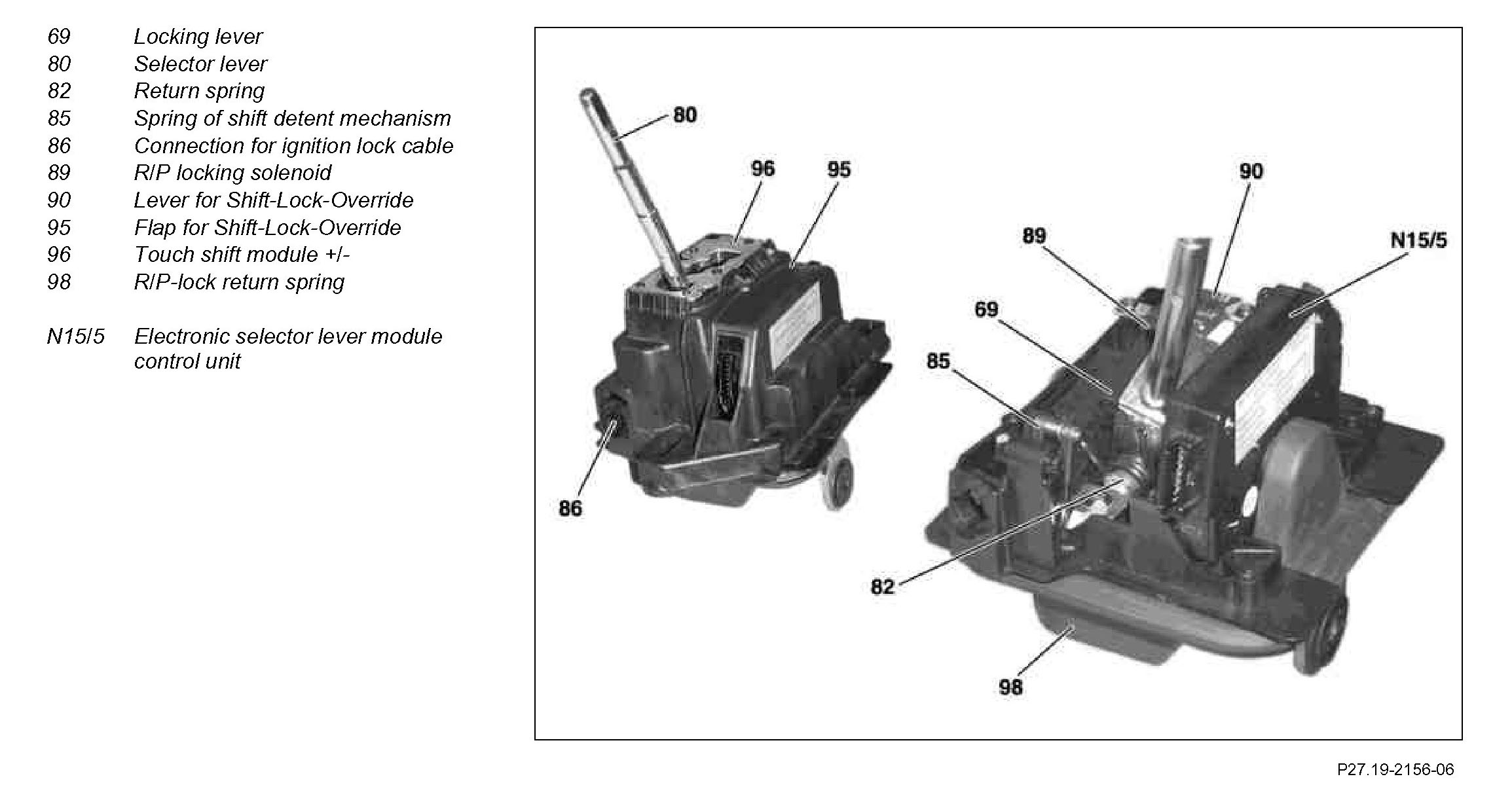

Component Identification:
