GF27.10-P-0001-07ACL Automatic Transmission (AT), Location of Mechanical Parts



GF27.10-P-0001-07ACL Automatic transmission (AT), location of mechanical parts
- Transmission 722.618/646/694/696

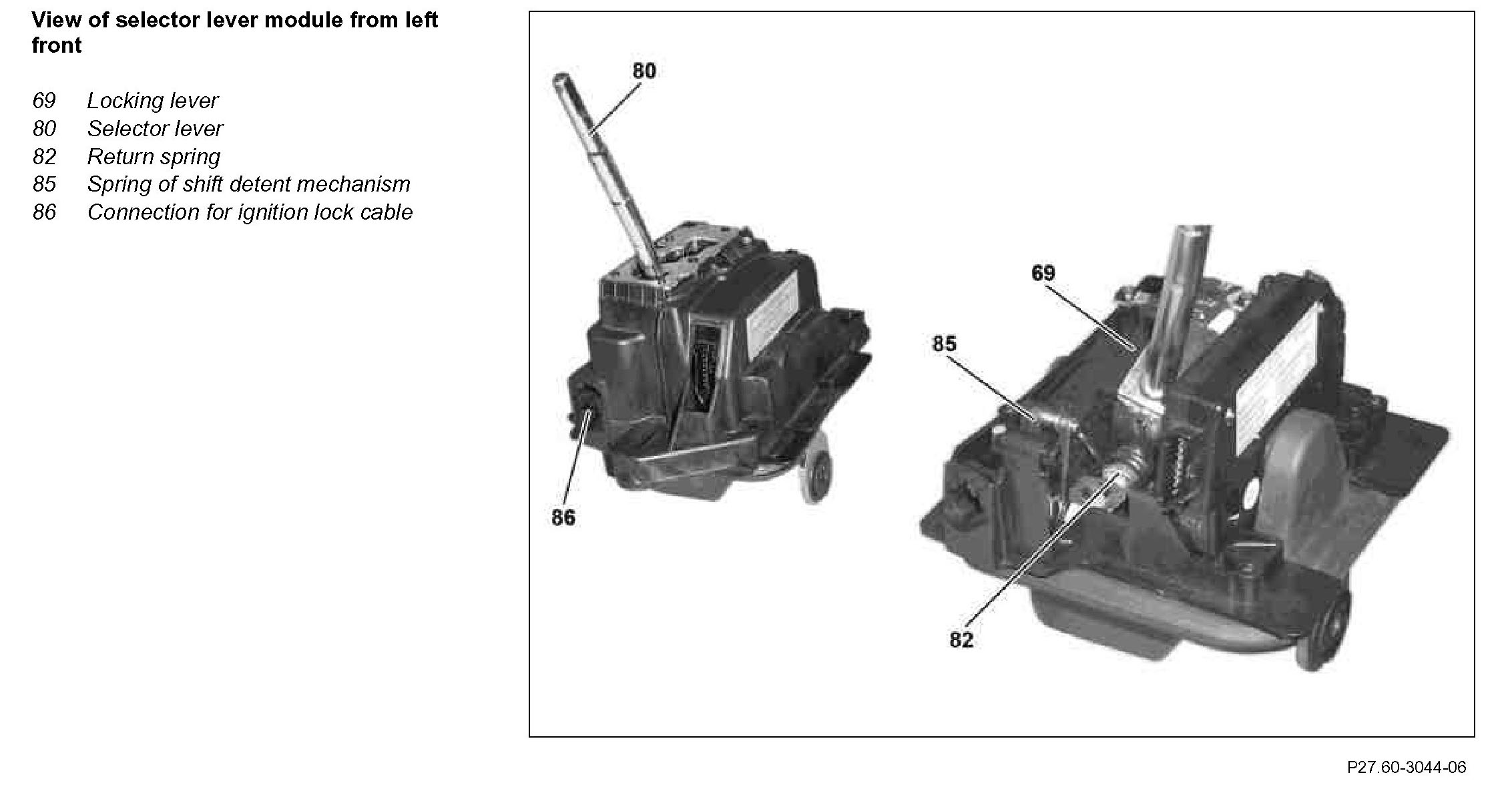

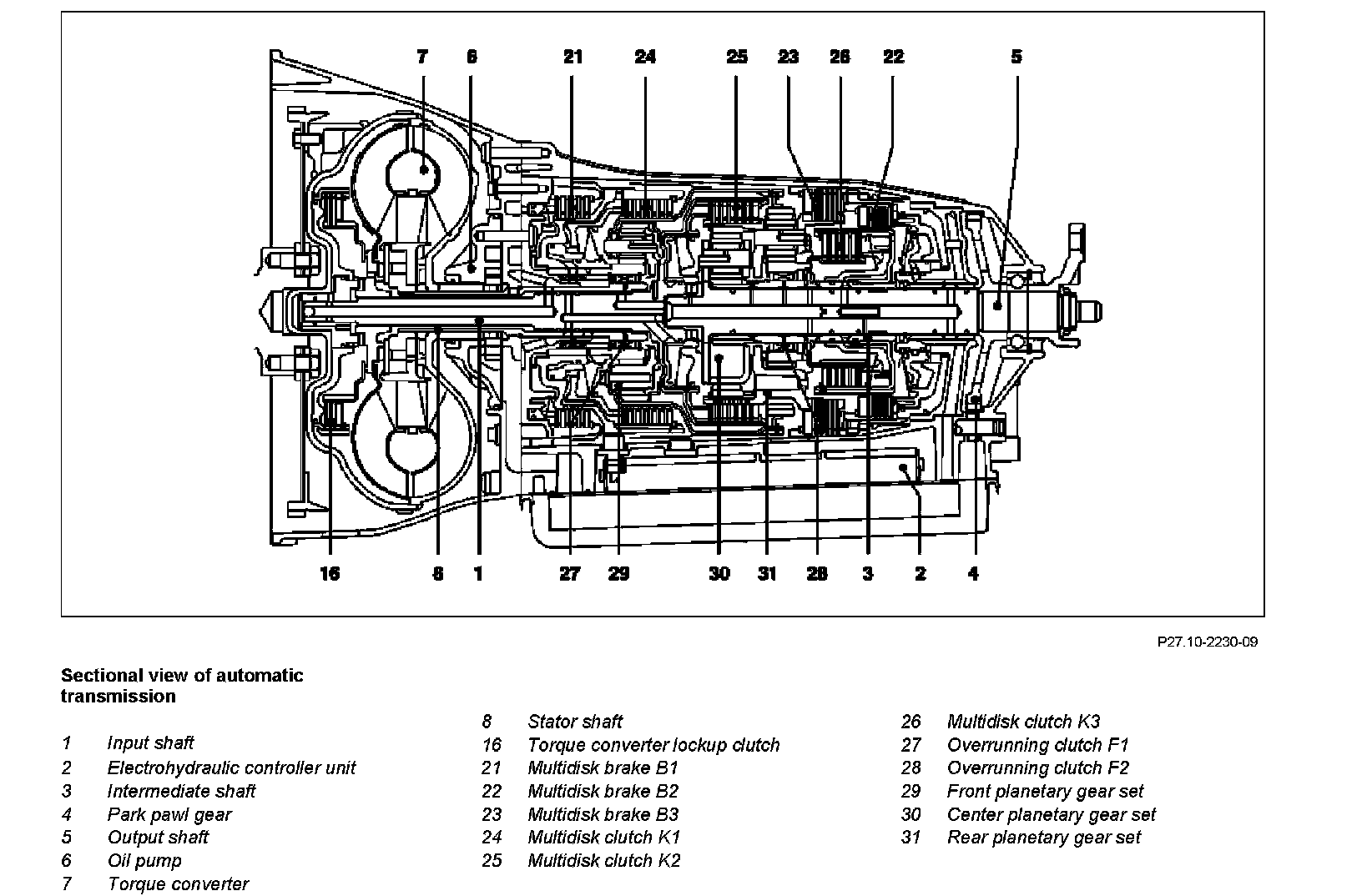

Component Identification:




Component Identification:
