GF27.10-P-0001-02TMZ Automatic Transmission (AT), Driver Information

GF27.10-P-0001-02TMZ Automatic transmission (AT), driver information
- TRANSMISSION 722.6
- with CODE (428) Steering wheel shift buttons

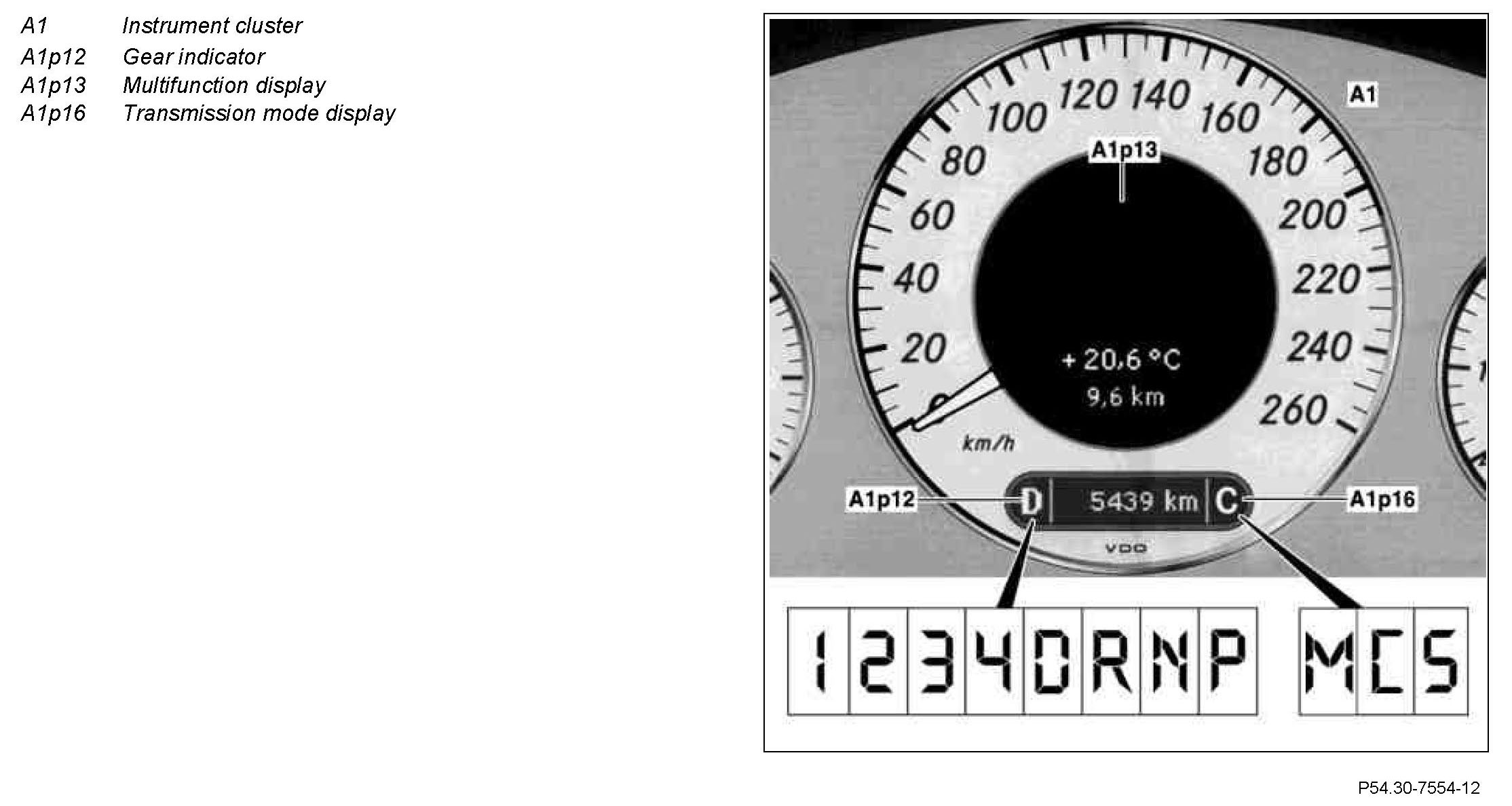

Component Identification:

Gear indicator (A1p12) in instrument cluster (A1) in sport program "S" and in comfort program "C"
Shows the driver the currently engaged shift range "1", "2", "3", "4" is currently selected or about the position of the selector lever "D", "R", "N" or "P".

Gear indicator (A1p12) in instrument cluster (A1) in manual program "M"
Shows the driver the gear shifted "1", "2", "3", "4", "5"

Transmission mode display (A1p16) in instrument cluster (A1)
Informs the driver which program "S" (sport program), "C" (comfort program) or "M" (manual program), is selected at the transmission mode switch (S16/5).
