Suspension - Front Suspension Squeaking/Grunting Noise

Date: May 12, 2009

Order No.: P-B-32.20/38a

Supersedes: P-B-32.20/38 dated April 26, 2006

Group: 32

Revision History

Revision Date Purpose

a 5/12/09 Applicable Models Updated (211 Added)

- 4/26/06 Initial issue

SUBJECT:
Model 171.454/456/473, up to Series Production F076559
All Model 211 Vehicles, without Airmatic Suspension (sales code 489)

Squeaking / Grunting Noises from Front Axle Area During Suspension Jounce Movements

If you receive customer reports in the above model vehicles of a squeaking / grunting noise from the front axle area during suspension jounce movements, perform the following to resolve.





Note:

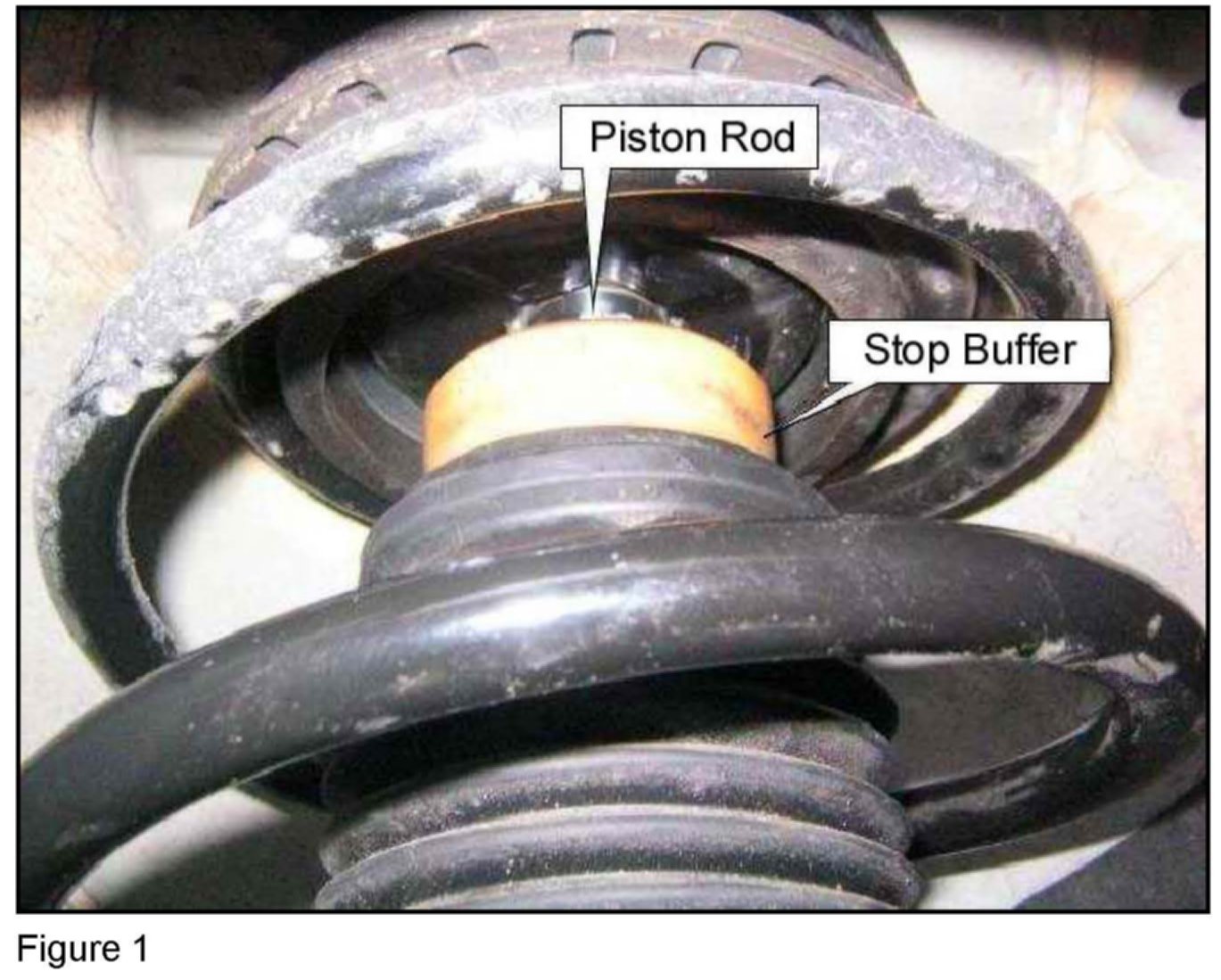

When the suspension is compressed to a sufficient extent at the front axle area, the front struts stop buffer(s) may deform which can cause frictional noises between the strut's piston rod and stop buffer (Figure 1).

1. Raise vehicle on a lift.

2. Pull the affected strut's stop buffer and boot downwards.

3. Lightly grease piston rod with lubricant.

4. Push stop buffer and boot back into the original position.

5. Lower vehicle.

Note:
The noise can be reproduced by rocking the vehicle at the front axle.





Parts Information

Note:

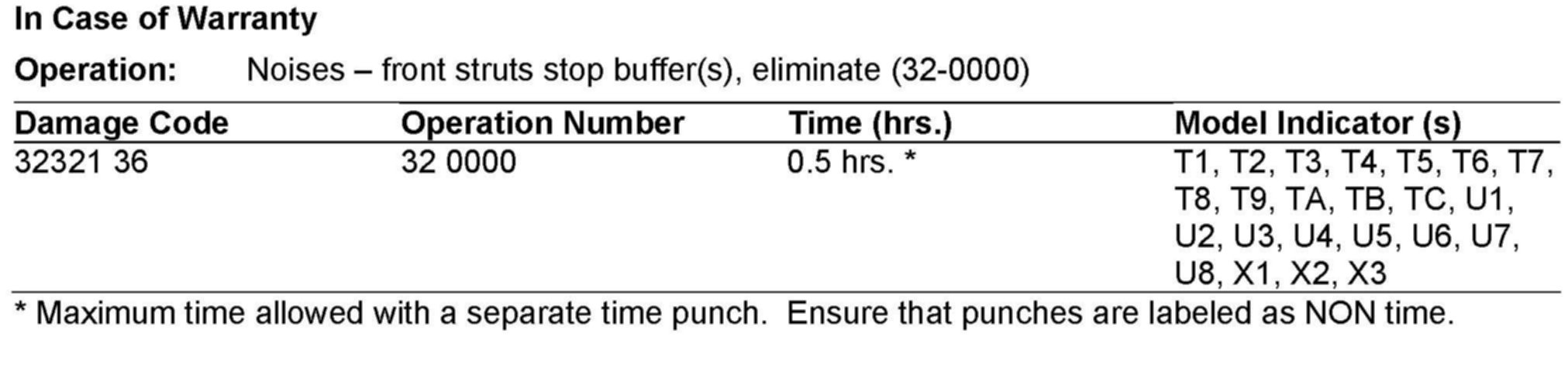

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on May 12, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table above.
