Restraints - Passenger Seat Weight Sensor Inoperative
Date: October 2, 2006Order No.: P-B-91.29/117
Supersedes:
Group: 91
SUBJECT:
Model211.026/056/065/070/072/076/077/082/083/087/090/256/265/276/277/282/283/287
MY 04 as of Production 19.2.04 and Later
Model 219.372/375/376/377, MY 07 and Later
Replacement of Weight Sensing Seat Sensors
If you receive customer reports in the above model vehicles of the passenger side Weight Sensing Seat (WSS) not functioning correctly the cause could be the WSS sensor mounted to each corner of the seat frame. The seat frame assembly should no longer be replaced as an assembly since it is possible to replace each individual WSS sensor. If it is determined one or more of the WSS sensors is at fault follow the procedure listed below to resolve.
1. Remove/install WSS sensors. Refer to WIS Document AR91.60-P-0811T.
NOTE:
Move seat fully forward and upward prior to disconnecting from power. This will ensure access to right front sensor bolt.
2. Use special tool 211 589 00 32 00 and STAR Diagnosis to recalibrate the WSS sensors. STAR Diagnosis path: Control Units -> Body -> WSS -> Initial Startup/Recalibration
NOTE:
All seat frame assemblies replaced under warranty for faulty WSS sensors will be debited back to the dealer.
This bulletin has been created and maintained in accordance with MBUSA-SLP S423QH001, Document and Data Control, and MBUSA-SLP S424HH001, Control of Quality Records.

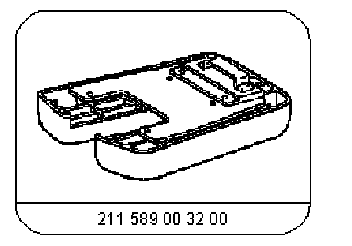

Special Tools
NOTE:
This special tool should already be in every MB Dealers Special Tool Inventory as it was released and automatically shipped in March 2002.

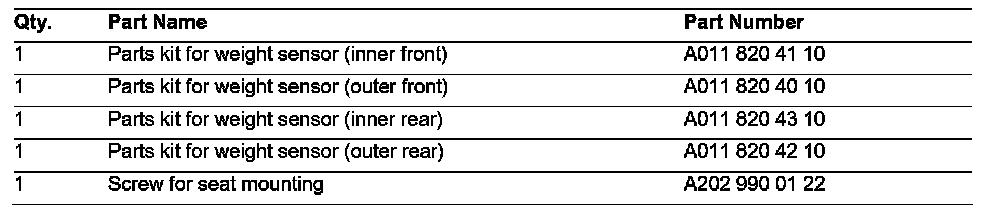

Parts Information
