Campaign - Glow Output Stage Control Module

01FILE:
SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION_PARTS & ACCESSORIES BINDER

Campaign No. 2007070003, August 2007

Revision Date Purpose

A 8/11/07 Correction of parts information footnote

- 8/10/07 initial issue

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT:
MODEL 211.022 BLUETEC

MODEL YEAR 2007

CHECK GLOW OUTPUT STAGE CONTROL MODULE AND REPLACE IF NECESSARY (OM642 ENGINE)

This Service Campaign has been initiated because DCAG has determined that on the affected vehicles engine running characteristics can be improved during cold starts in low temperatures with the installation of a replacement glow output stage control module. Dealers will check the part number of the glow output stage control module and replace if necessary.

Prior to performing this Service Campaign:

^ Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired. If necessary, repair the subject vehicle during the vehicle's next service.

^ Please review the entire Service Campaign bulletin and follow the procedure steps exactly as described.

^ Please note that Recall and Service Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.

Approximately 584 vehicles are affected.

Procedure

A. CHECK GLOW OUTPUT STAGE CONTROL MODULE

1. Remove engine cover.

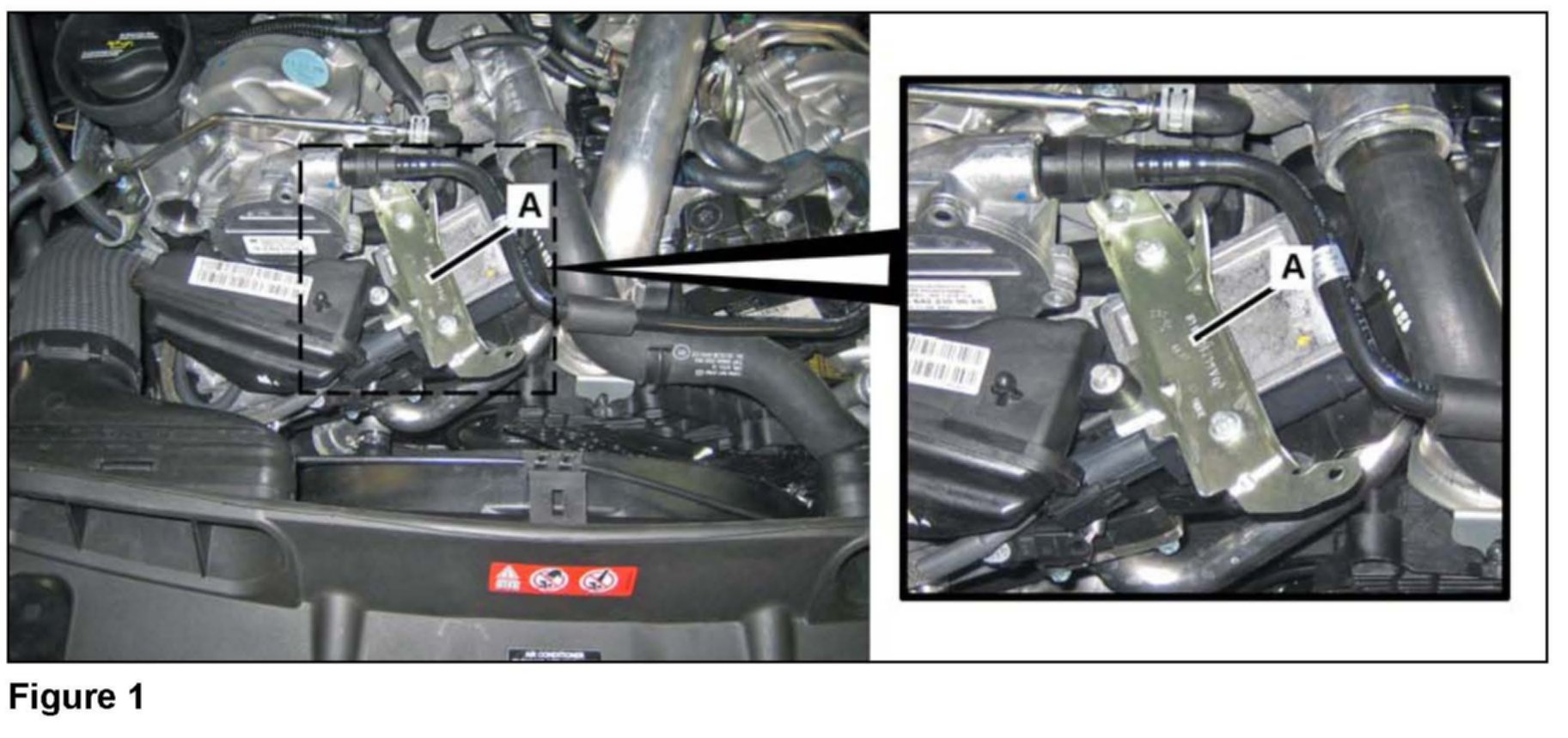

2. Remove preglow system glow output stage control module bracket (A, Figure 1).

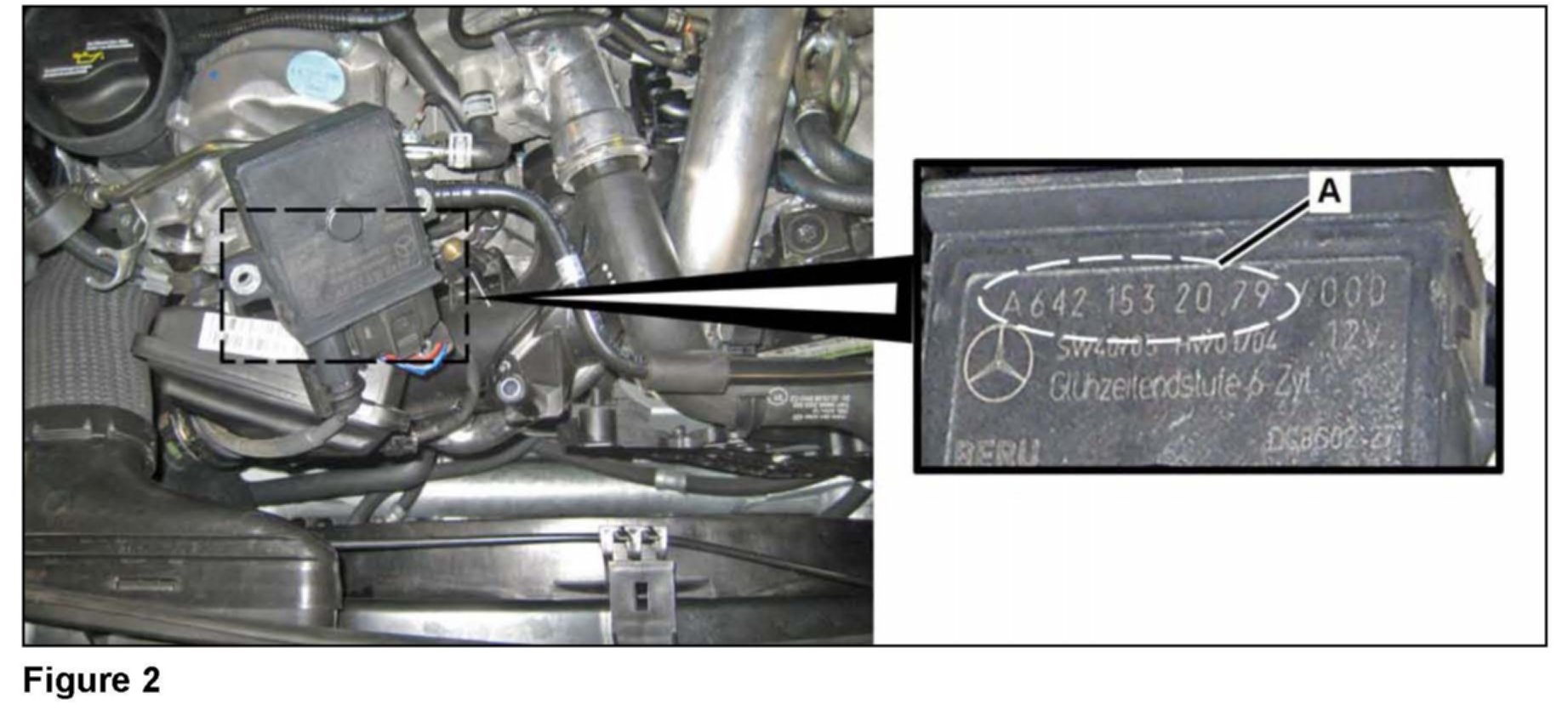

3. Check control module part number (A, Figure 2) located on underside of glow output stage.

^ If the part number is A 642 153 22 79: Proceed to next step.

^ If the part number is not A 642 153 22 79: Proceed to Procedure B to replace control module.

4. Reinstall in reverse order.

^ Torque glow output stage control module bracket bolts to 10 Nm.

B. REPLACE GLOW OUTPUT STAGE CONTROL MODULE

1. Disconnect electrical connectors and replace glow output stage control module.

2. Reinstall in reverse order.

^ Torque glow output stage control module bracket bolts to 10 Nm.

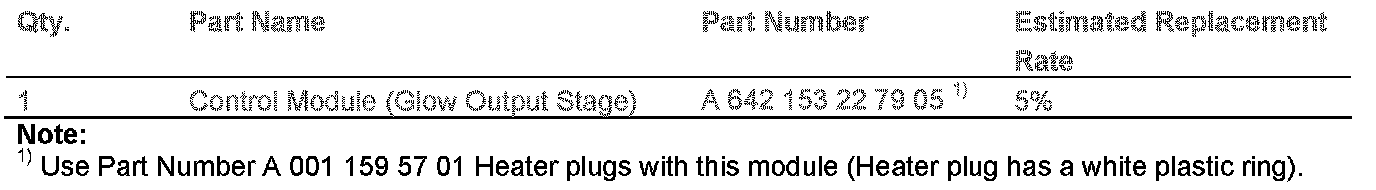

Parts Information

Note:
^ Please be aware that only the part number(s) referenced in the Campaign Bulletin is approved for use to repair the vehicle. Repairs performed using any other part(s) will not have been performed in accordance with the campaign. Accordingly, warranty claims submitted with reference to an improper part number(s) will be denied.

^ Please note that the information in the most current versions of EPC and StarTime supersedes the parts and warranty information in the Campaign Bulletin.

^ The following allowable labor operation should be used when submitting a warranty claim for this repair:





Warranty Information
