Body - Structural Adhesive Availability

Date: June 2007

Order No: P-B-00.45/85

Supercedes:

Group: 00

SUBJECT:
MODEL 171, 211, 216, 219, 221

Body Adhesive

The adhesive Betamate 2096 from Dow is now available under the replacement part no. A 009 989 36 71. The quality of this adhesive is identical to that in the repair kit A 215 986 00 00 (3M DP490), but it is more favorably priced.

The pack size of approx. 50 ml is the same.

The new adhesive kit A 009 989 36 71 must be used for the repair procedures described in all WIS which require body adhesive.

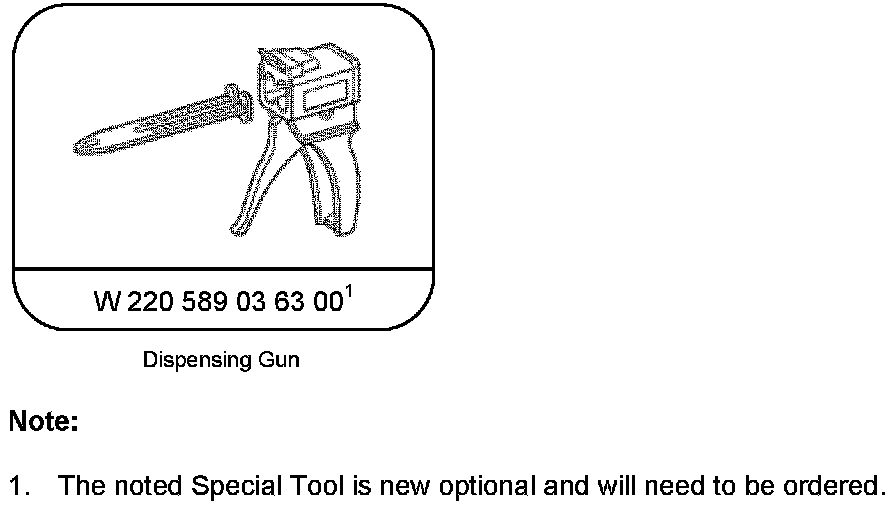

The structural adhesive must be applied using the adhesive metering gun W 220 589 03 63 00.





Workshop Equipment





Special Tools
