ABS - System Aborts During Diagnostic Procedure
Diagnosis aborts when working on SBC control unit using SDconnect in wireless modeTopic number LI42.46-P-048678
Version 1
Design group 42.46 Sensotronic Brake Control (SBC)
Date 01-22-2010
Validity Model 211, 219 with SBC (up to code 806)
Model 230
Reason for change
Reason for block
Complaint:
When using the SDconnect diagnosis multiplexer in wireless mode (WLAN), diagnosis aborts occur during the SBC bleeding process or in the subsequent test steps for activating the SBC brake system.
Cause:
Fluctuations in the WLAN signal strength during the SBC bleeding process or in the subsequent test steps for activating the SBC brake system.
Remedy:
Before starting the diagnosis session, connect the SDconnect diagnosis multiplexer to the Star Diagnosis unit using the green Star Diagnosis connecting cable provided in the package.
This prevents aborts from occurring due to fluctuations in the WLAN signal strength during the diagnosis session.
Plugging in the cable connection during an already active diagnosis session does not prevent the faults from occurring because the change from WLAN to a cable connection during an active diagnosis session is not recognized.

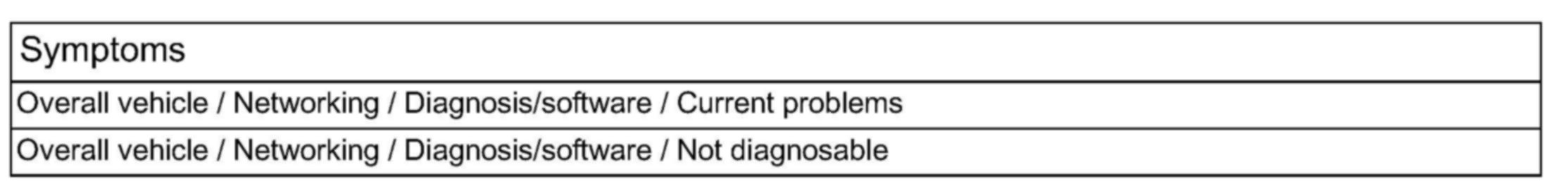

Symptoms

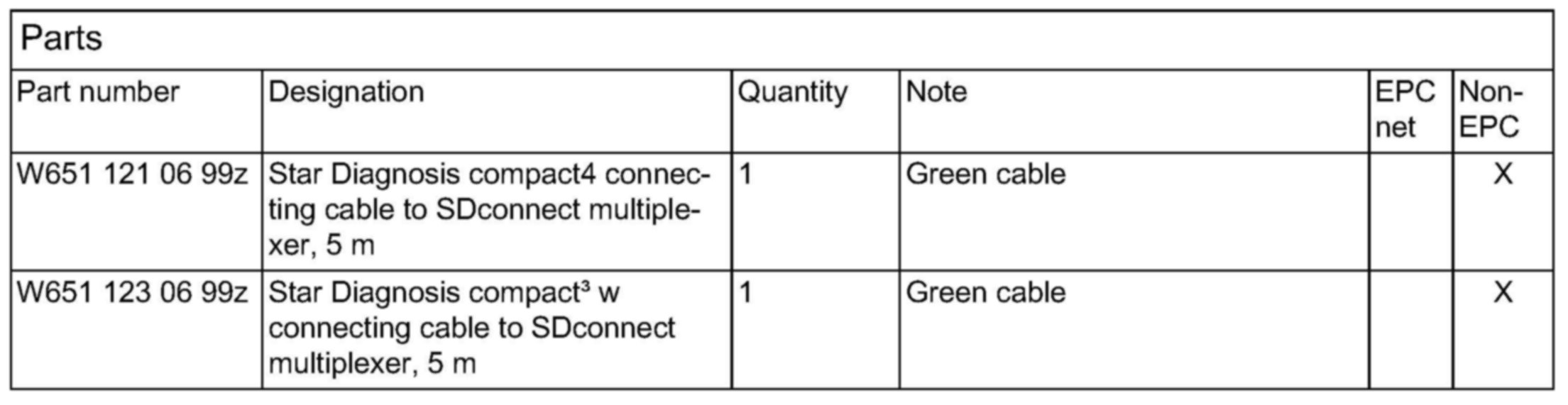

Parts

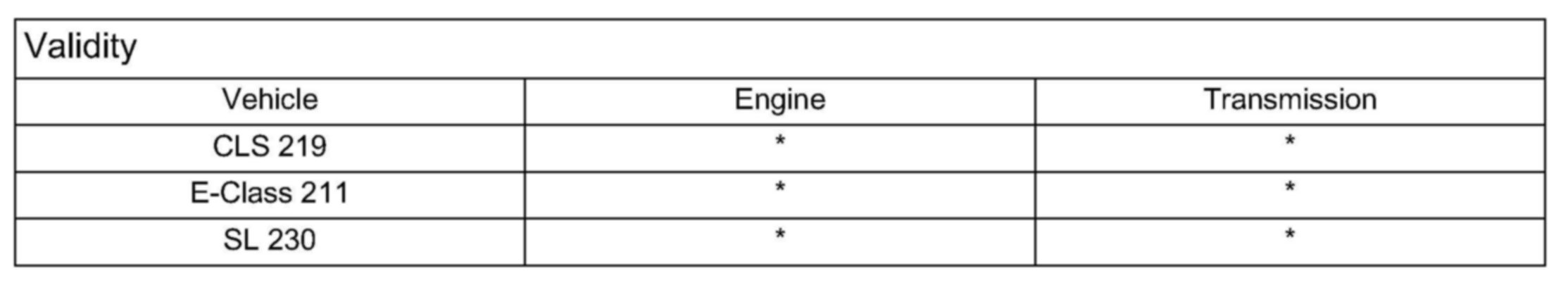

Validity
