AR46.00-P-2000A Locate noises from the
steering

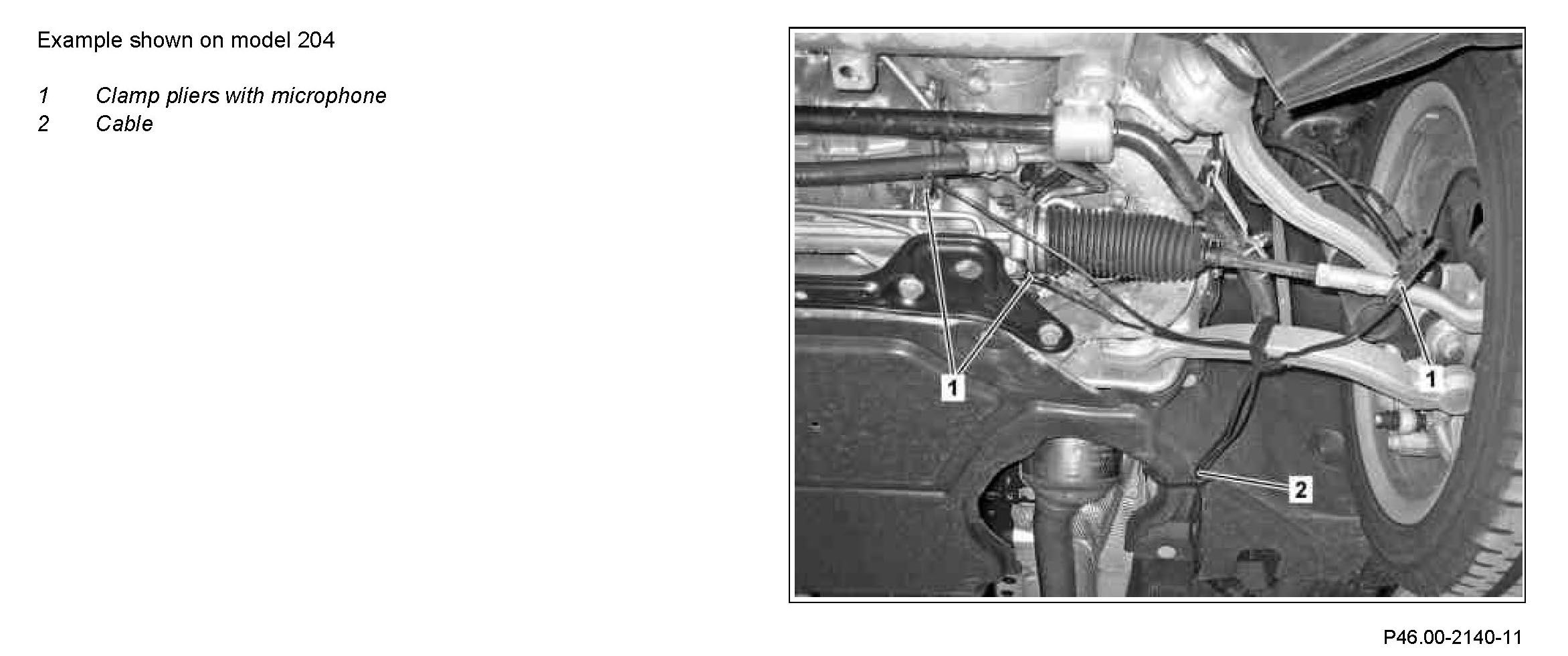

Component Identification:

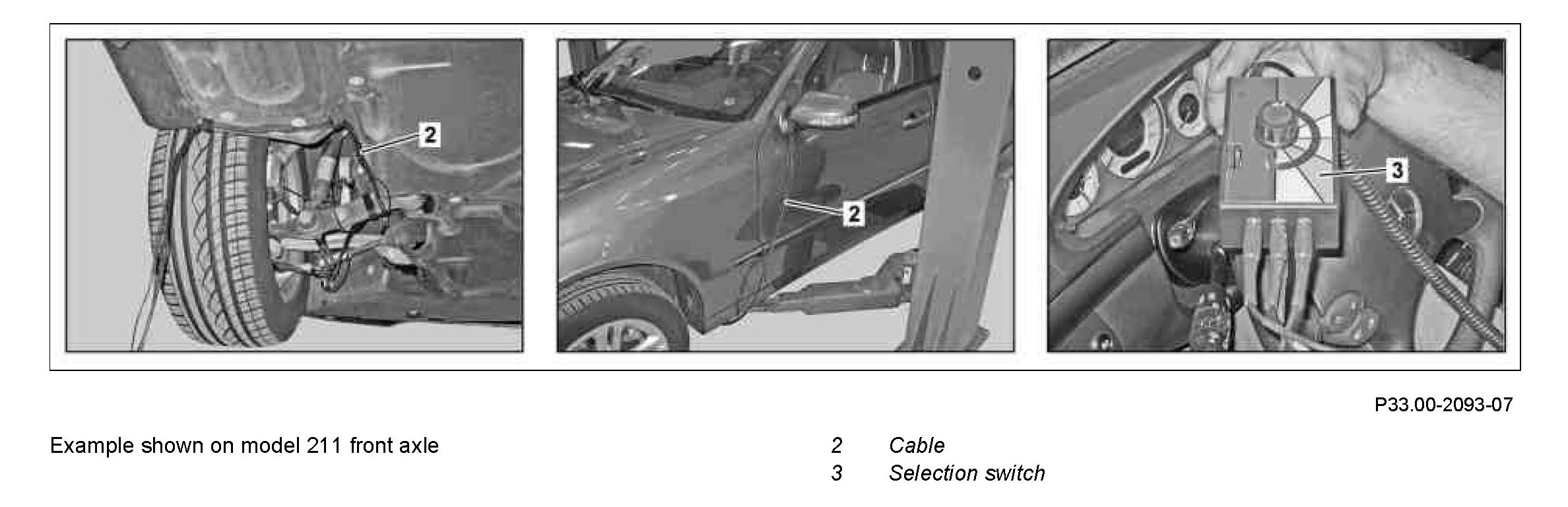

Component Identification:

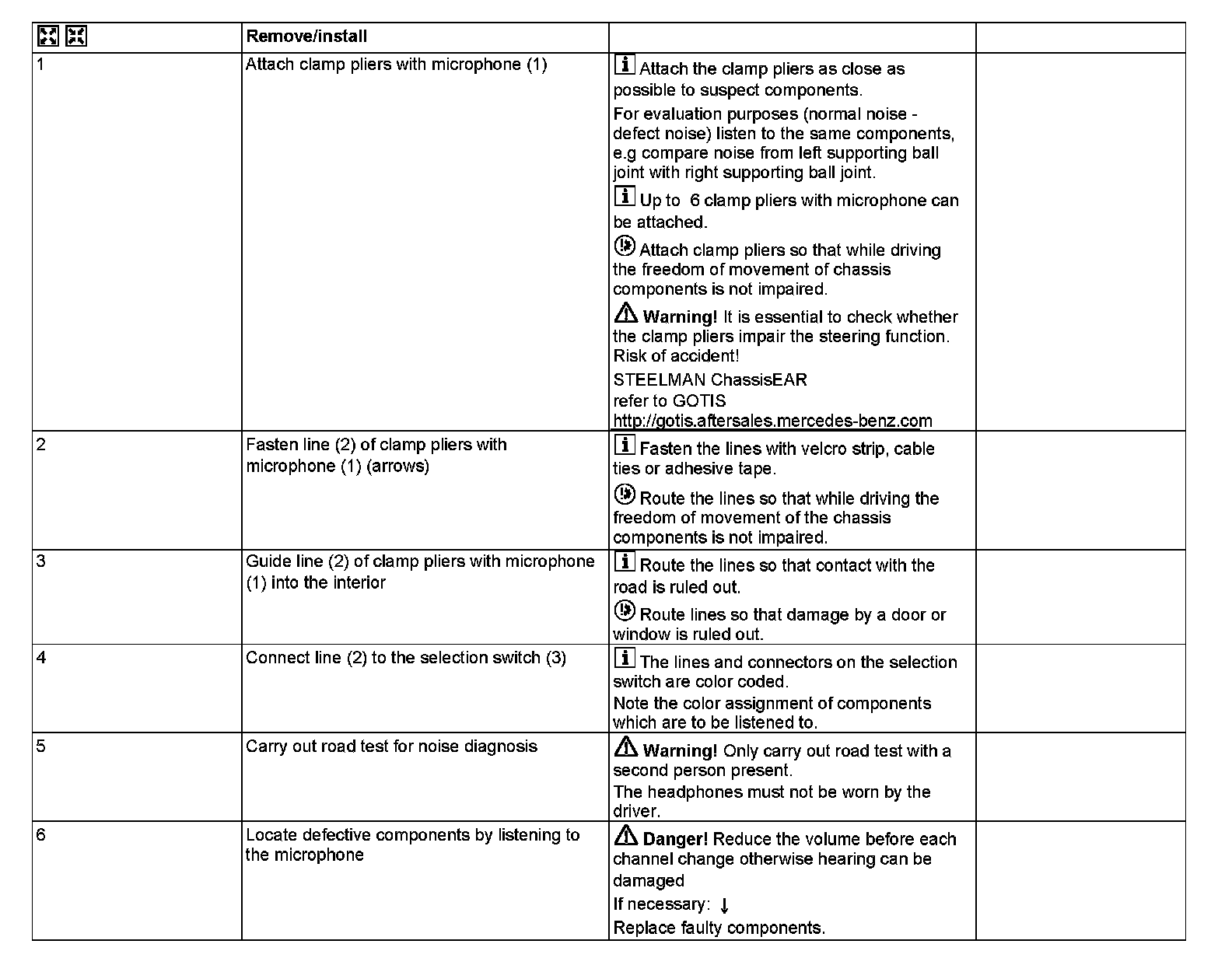

Steps 1-6:
