AR32.25-P-1018TS Disassemble/Assemble Suspension Strut

AR32.25-P-1018TS Disassemble/assemble suspension strut
- except CODE (489) Airmatic (semi-active air suspension) [model 211.0/2]
- except CODE (487) Active Body Control (ABC) [model 230]
- except CODE (P99) Special model "AMG Black Series" [model 230]

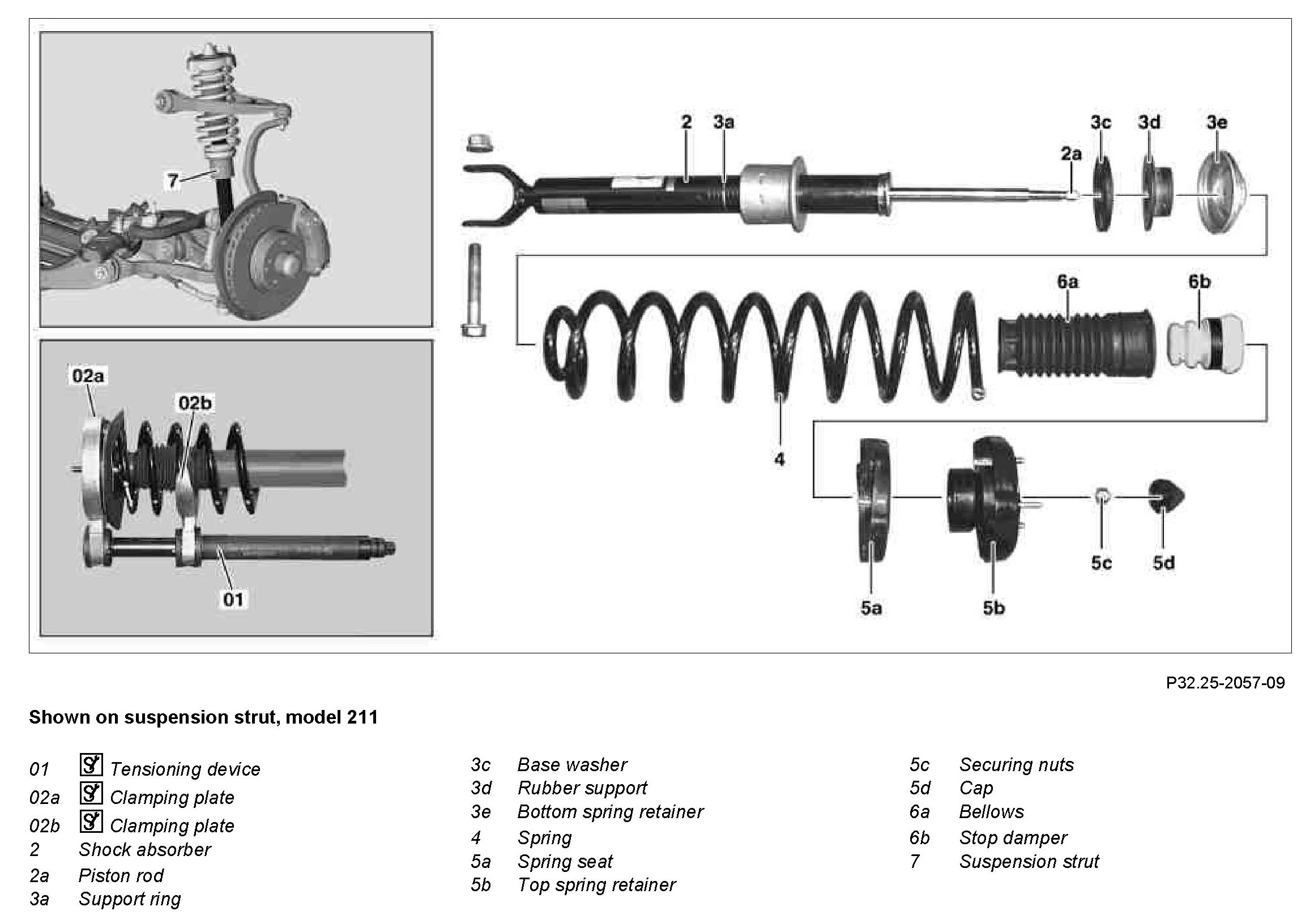

Component Identification:

Modification Notes:

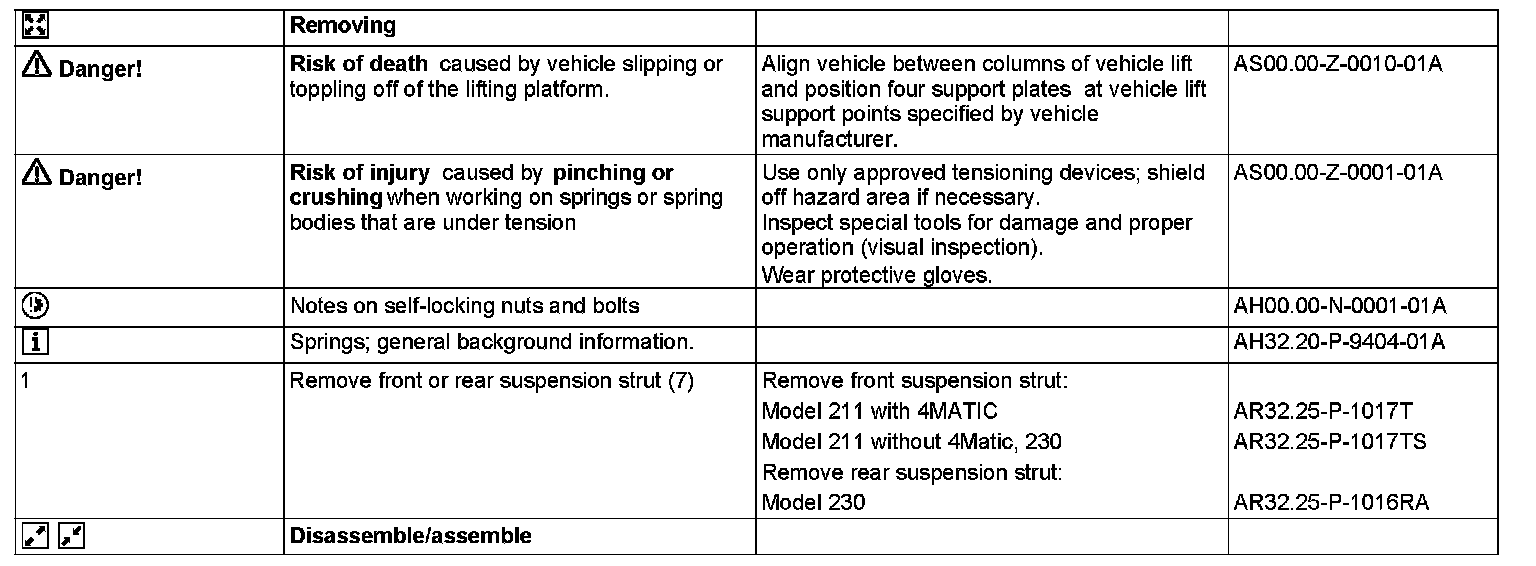

Step 1:

Steps 2-14:

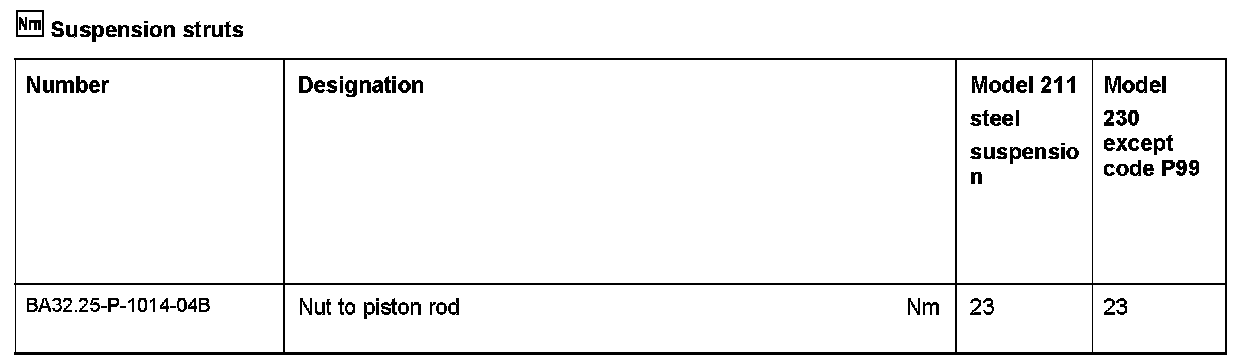

Suspension Struts:

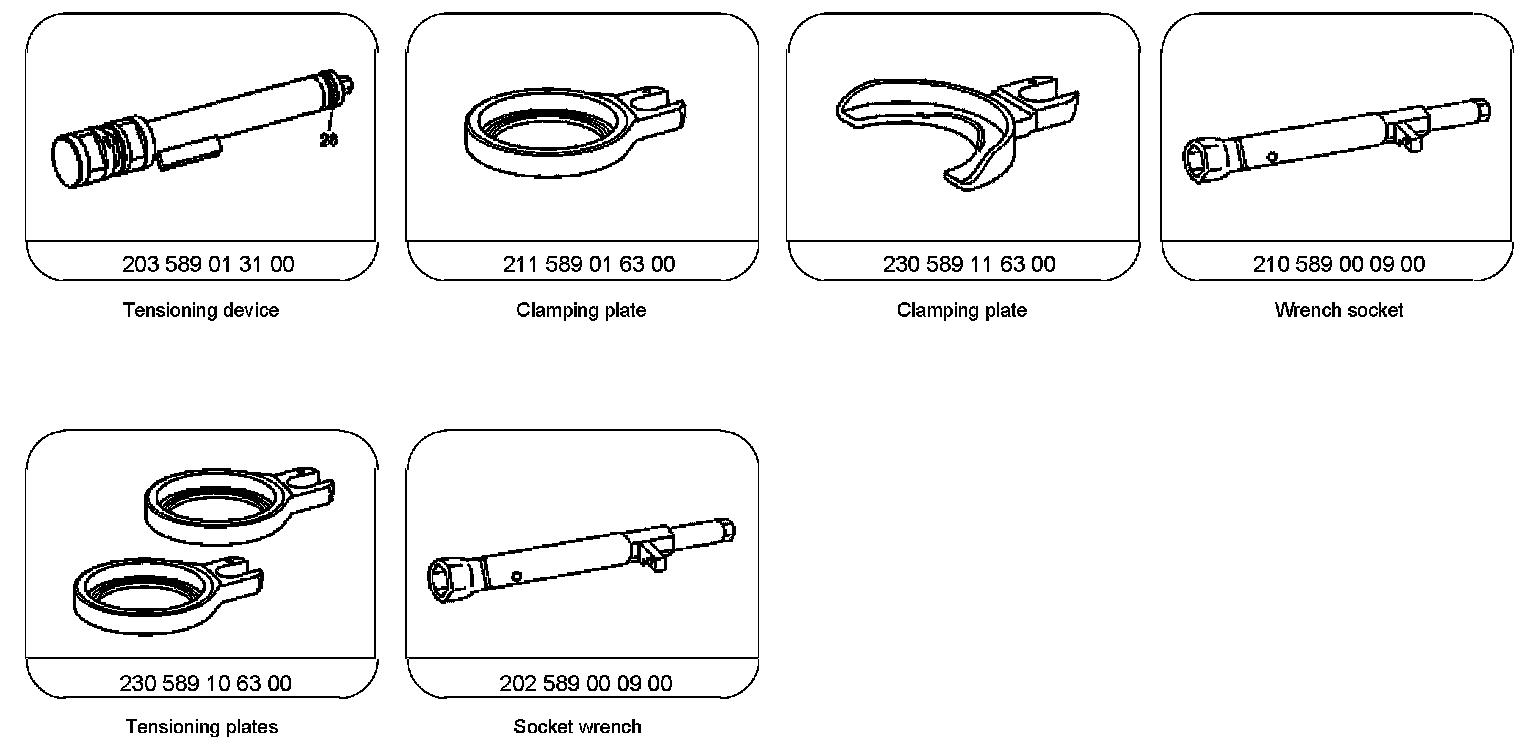

Special Tools:
