AR32.20-P-0200P Remove/Install Front Spring

AR32.20-P-0200P Remove/Install Front Spring
- except CODE (P98) Black Series [model 209]
- except CODE (489) Airmatic [model 211]
- except CODE (487) Active Body Control (ABC) [model 230]







Work instructions


DANGER:
- Risk of fatal injury if the vehicle slips off the lifting platform
- Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.

CAUTION: Notes on self-locking bolts and nuts

NOTE: Remove front wheels

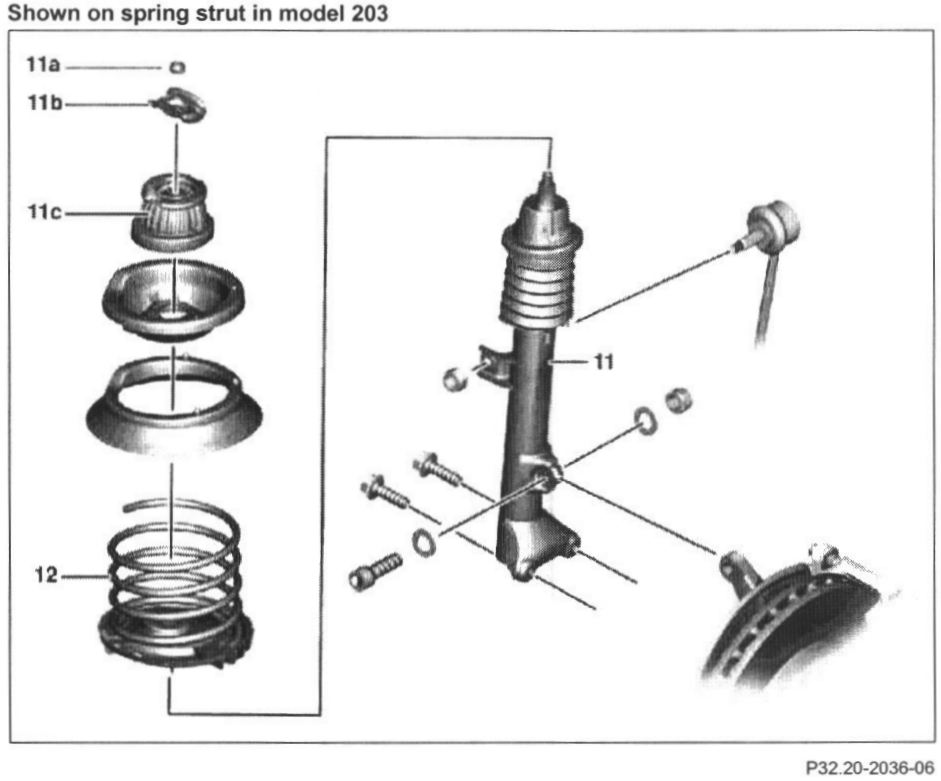

11 Spring strut
12 Front spring

NOTE:
- Removing and installing spring strut
- Disassembling and assembling spring strut
