Procedures

AR32.20-P-0200-06T Clamping rear spring
- except CODE (489) Airmatic (semi-active air suspension)


Danger!
Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension. Use only approved tensioning devices; shield off hazard area if necessary. Inspect special tools for damage and proper operation (visual inspection). Wear protective gloves.

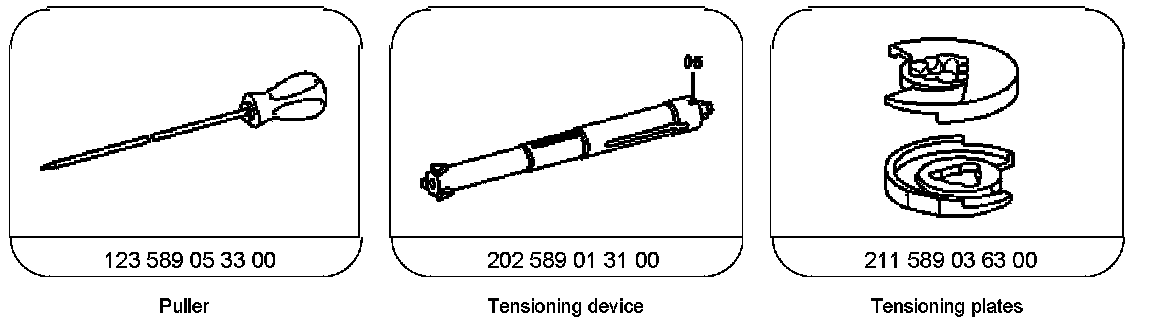

Special Tools:

Component Identification:

1 Remove plastic cone in the upper rubber mount of the rear spring using puller.

The plastic only serves as an initial assembly aid and is not installed again.

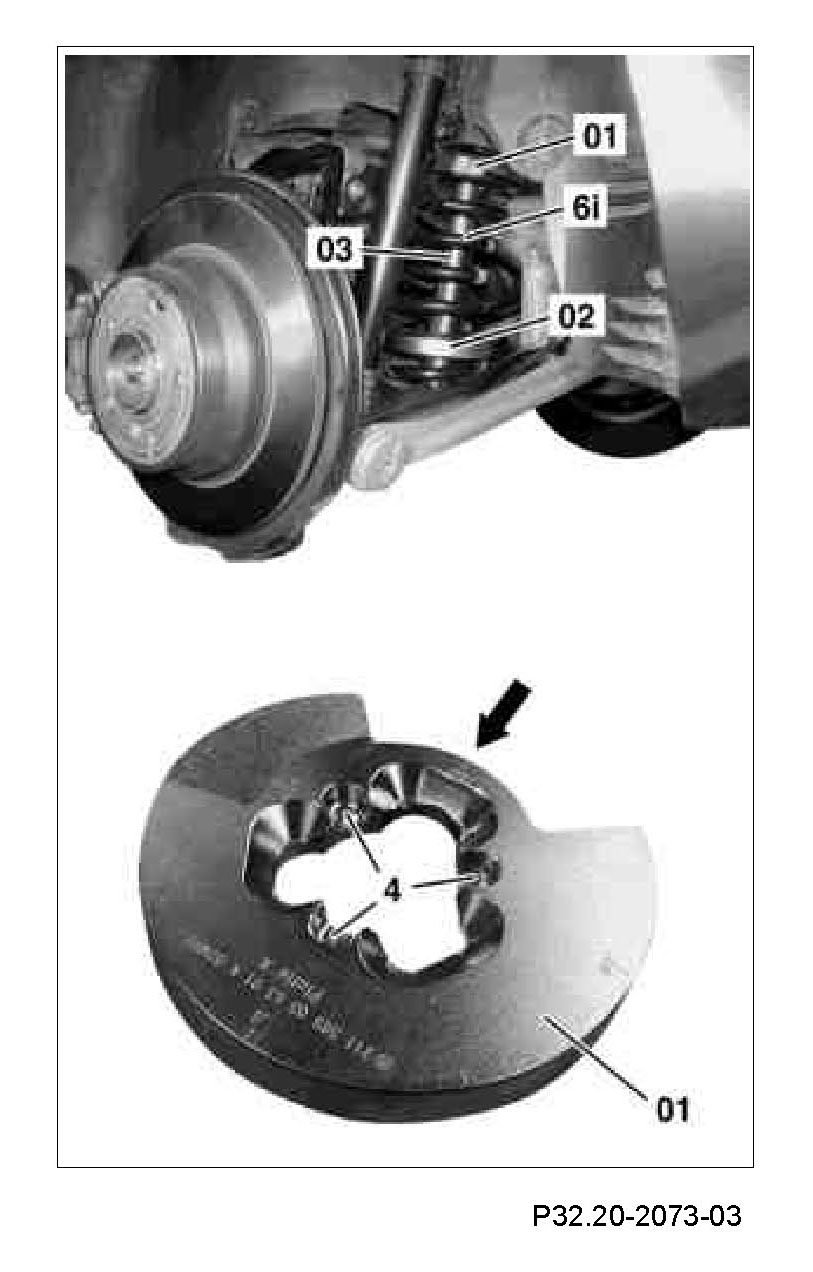

2 Insert top clamping plate (01) and bottom clamping plate (02) on the rear spring (6i).

Clamp as many coils of the spring as possible.

3 Turn the notches (arrow) of the clamping plates (01, 02) towards the inside of the vehicle.
4 Insert tensioning device (03) in clamping plates (01, 02) and engage in the recesses (4) of the upper clamping plate (01).
5 Clamp rear spring (6). In the process secure rear spring (6i) to prevent it from twisting.

Do not use any impact wrench/driver, otherwise the tensioning device (03) will be damaged.

6 Mark position of clamping plates (01, 02) relative to the rear spring (6i) with oil-based chalk.
7 Relieve the load on rear spring (6i).
8 Transfer markings to the new rear spring (6i).

When installing a new rear spring (6i).
