GF32.25-P-1000-02E Spring Strut, Design

GF32.25-P-1000-02E Spring strut, design
- with CODE (489a) Airmatic (semi-active air suspension)

Component Identification:

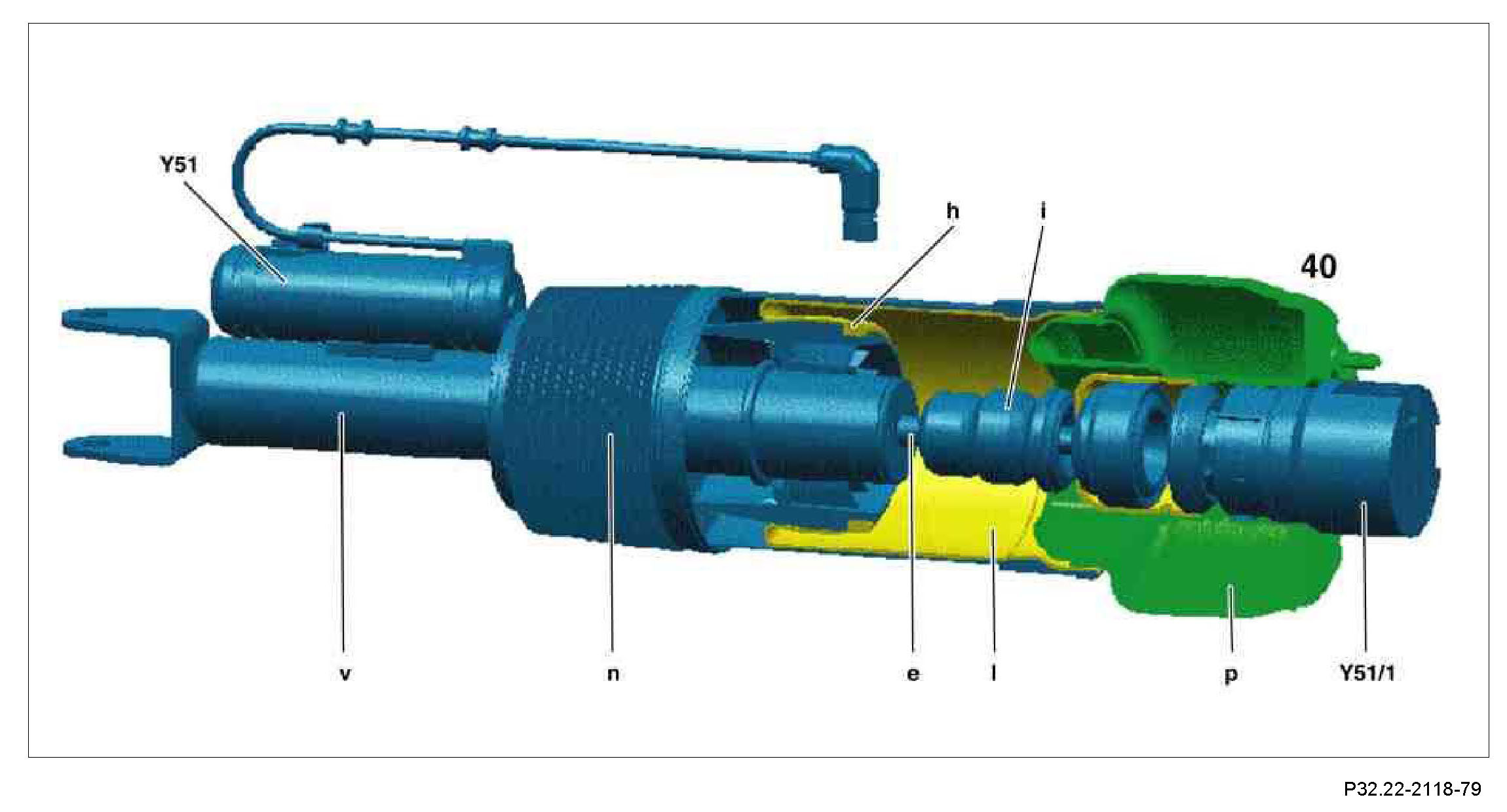

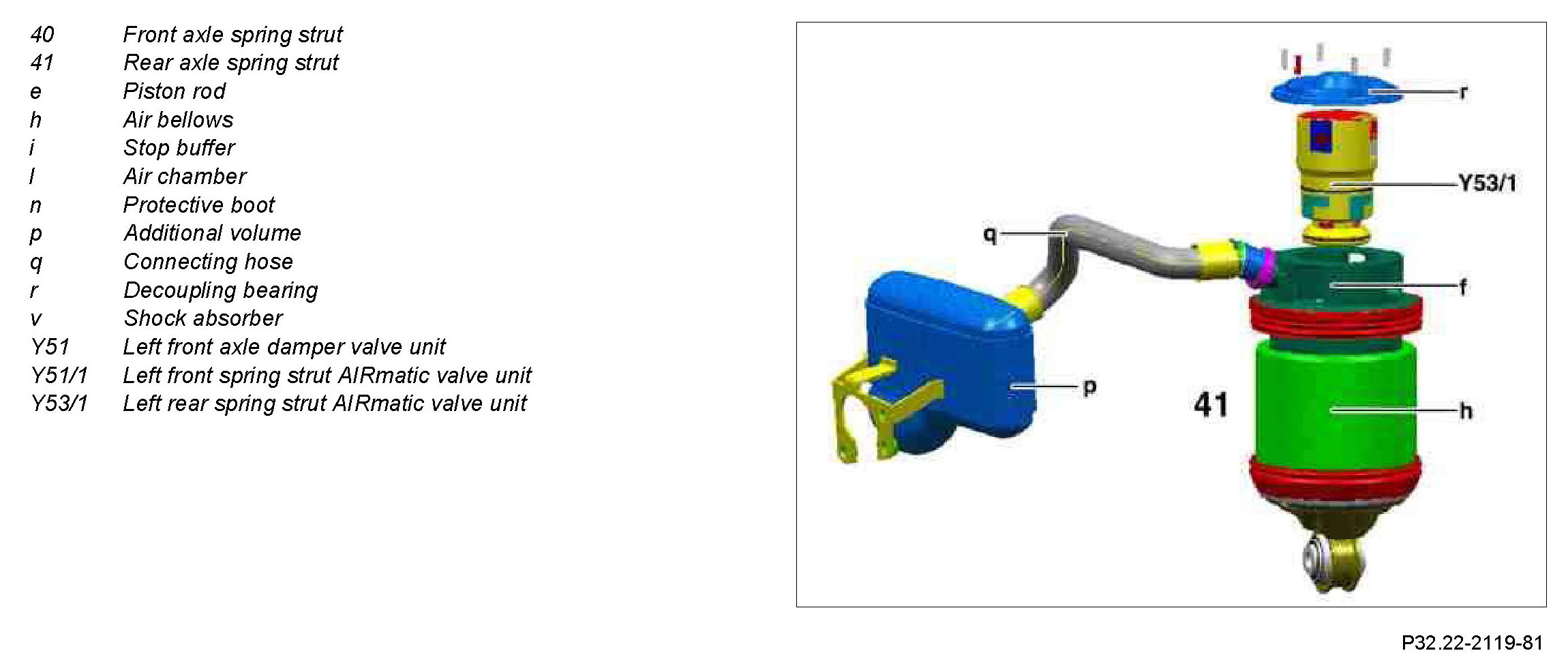

The front axle spring strut incorporates a single-tube gas-filled shock absorber and a chamber for the additional air volume. On the rear axle the shock absorber is mounted separately. A separate reservoir is used for the additional air volume.

The ADS damper valve is attached to the shock absorber for each wheel.
