Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Subframe >> Rear Subframe >> Service and Repair >> Removal and Replacement >> AR35.10-P-0051T Remove/ Install Front Center Assembly Suspension on Rear Axle Carrier

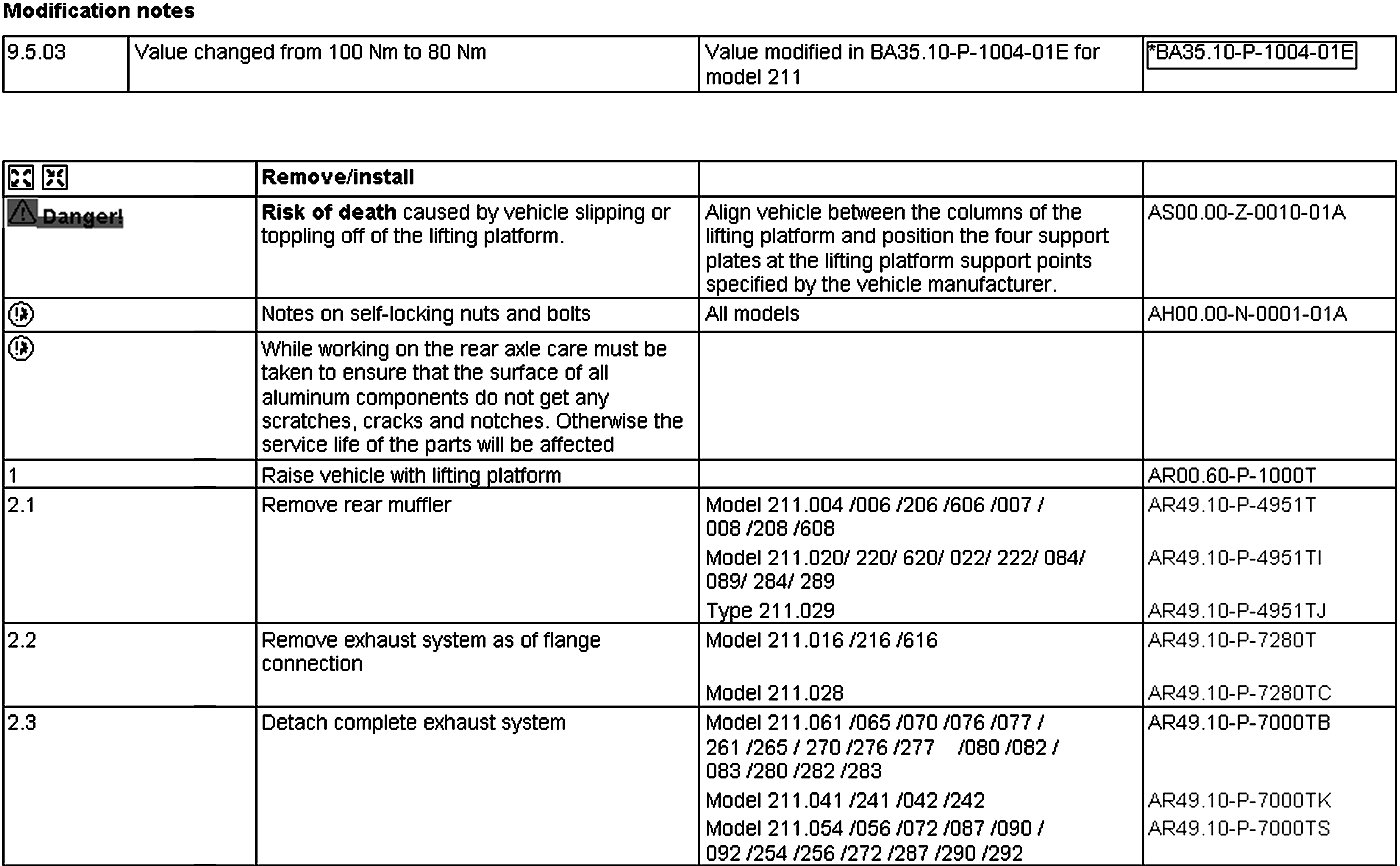

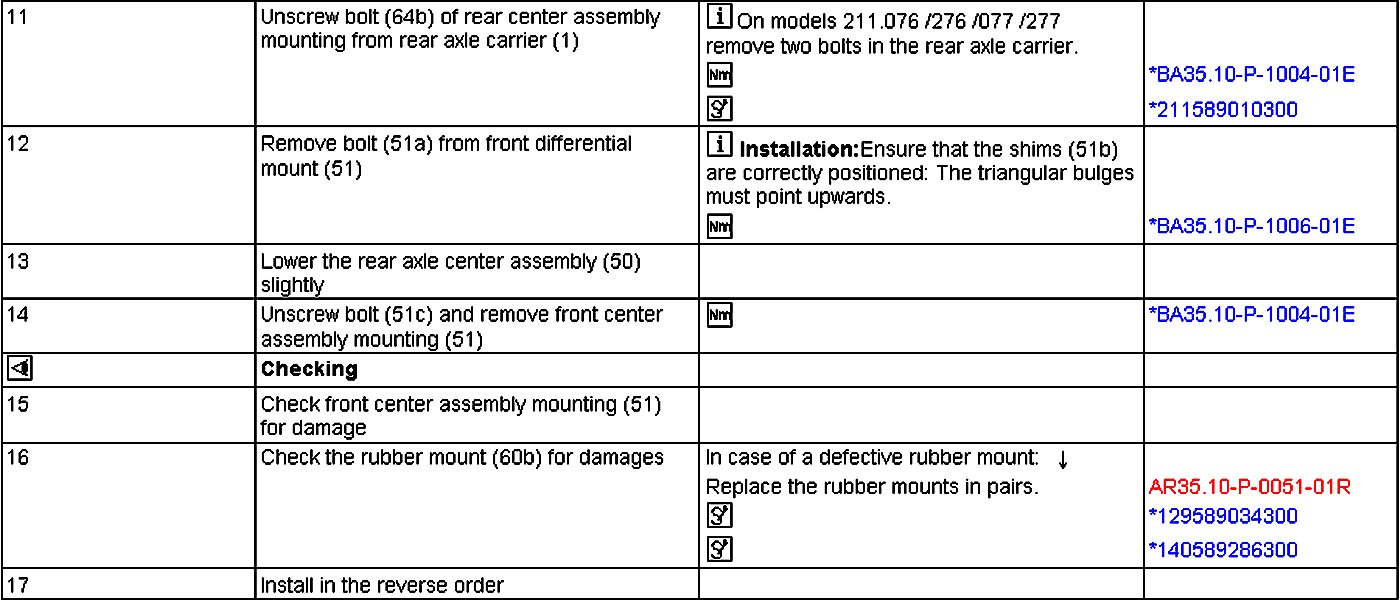

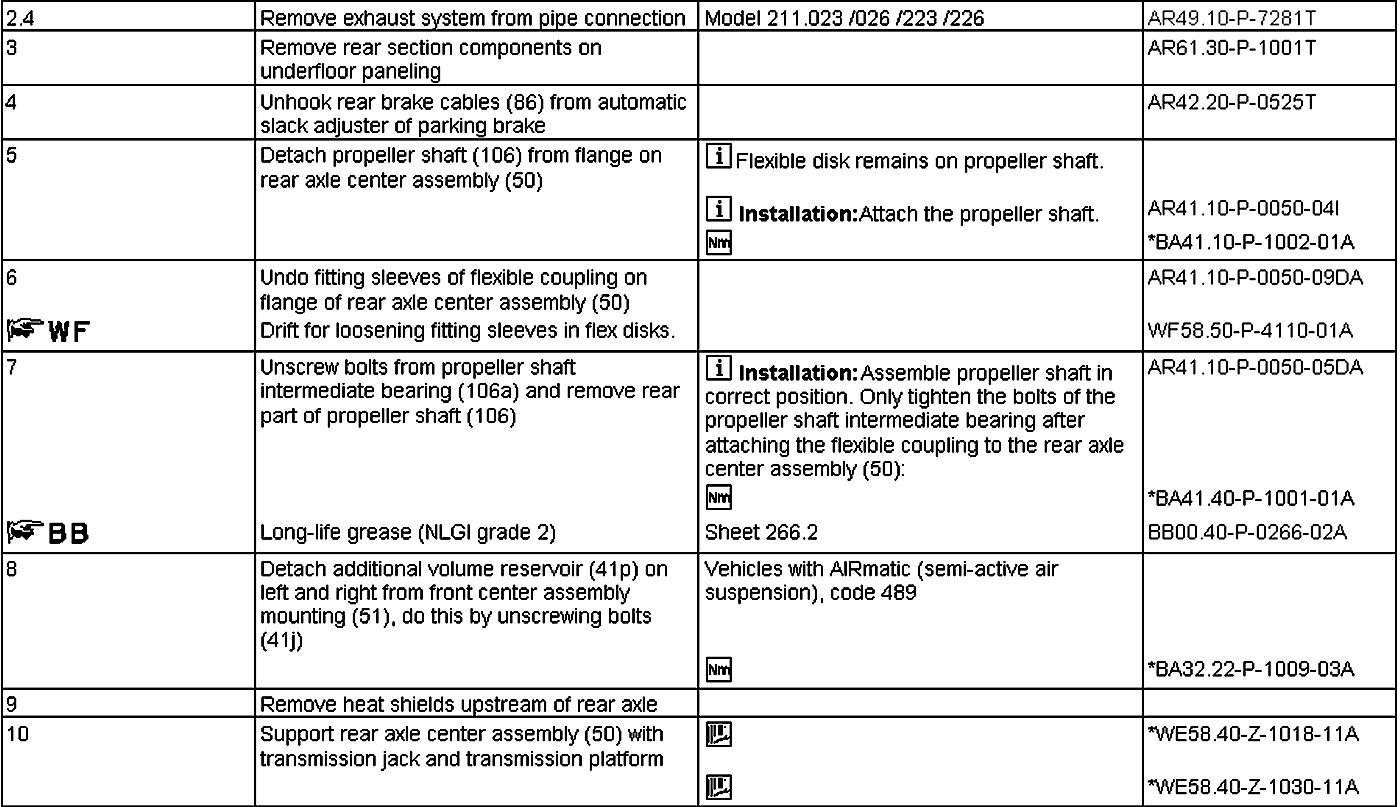

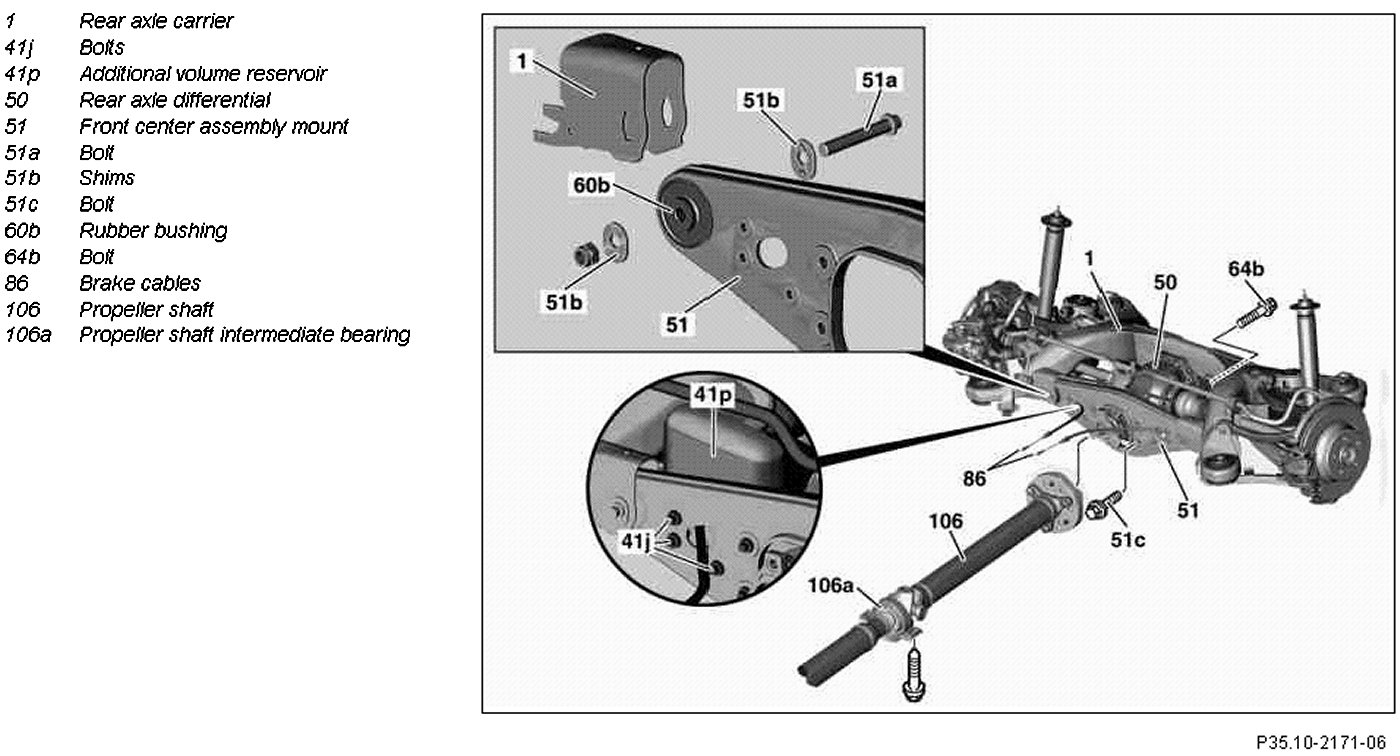

AR35.10-P-0051T Remove/ Install Front Center Assembly Suspension on Rear Axle Carrier




AR35.10-P-0051T Remove/ Install Front Center Assembly Suspension on Rear Axle Carrier
