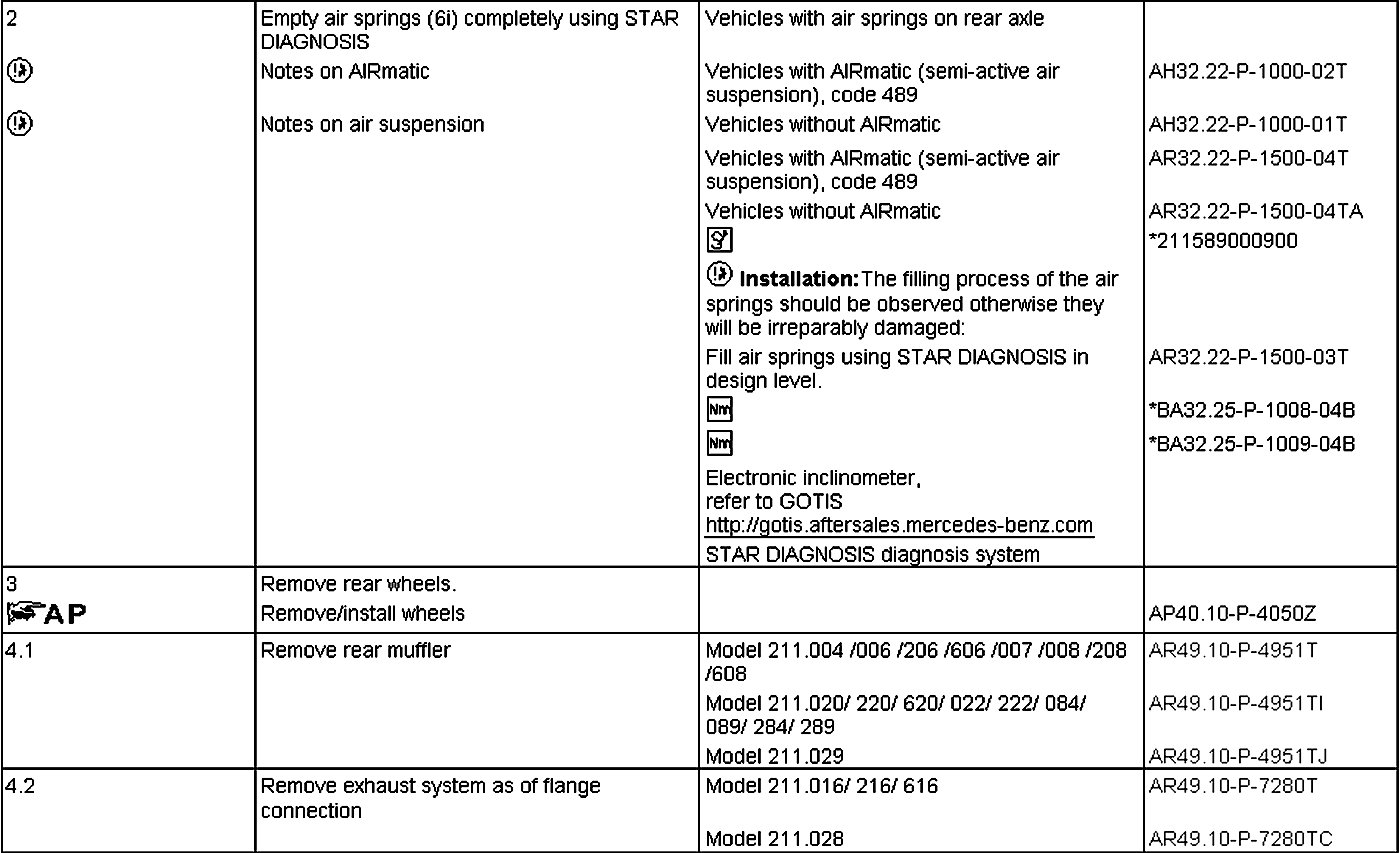

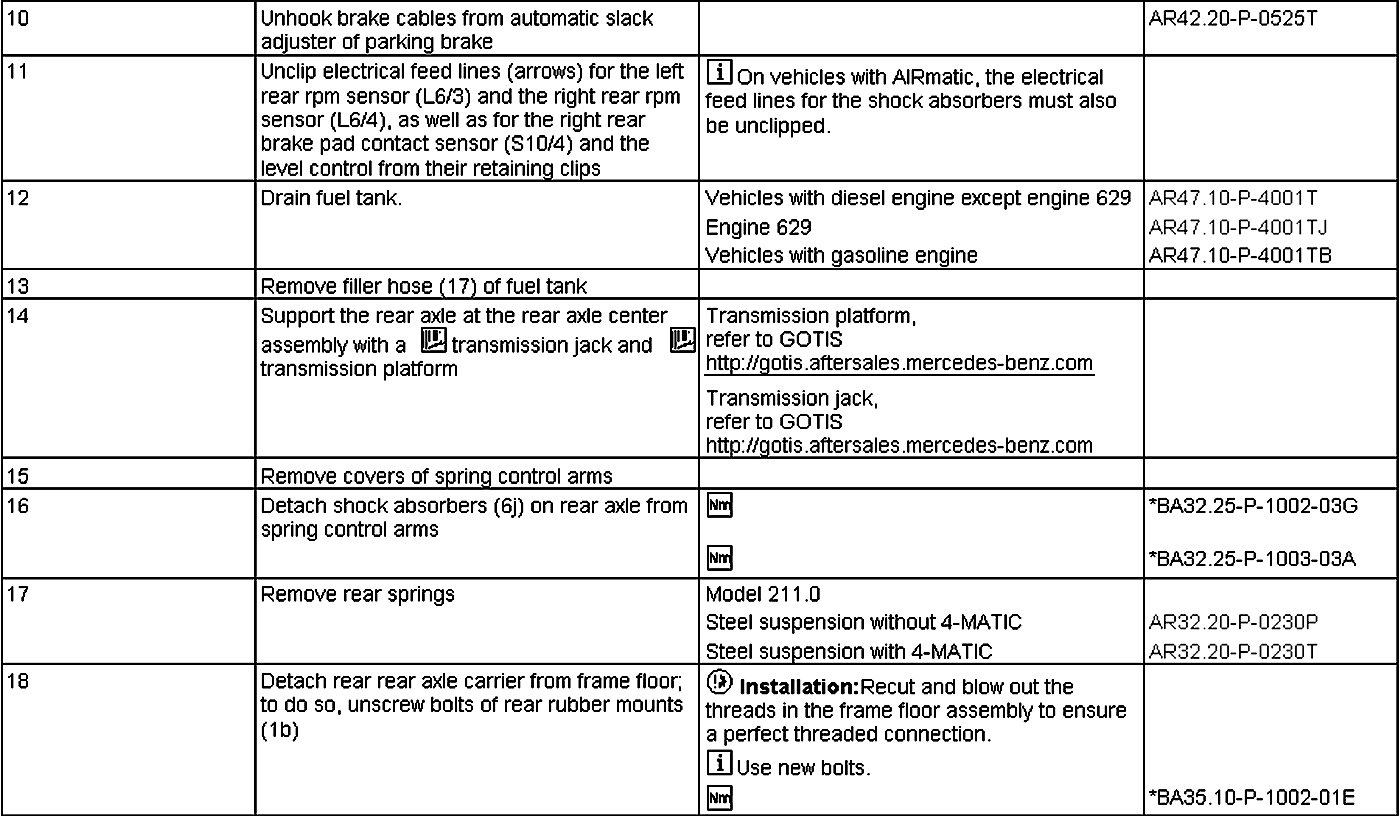

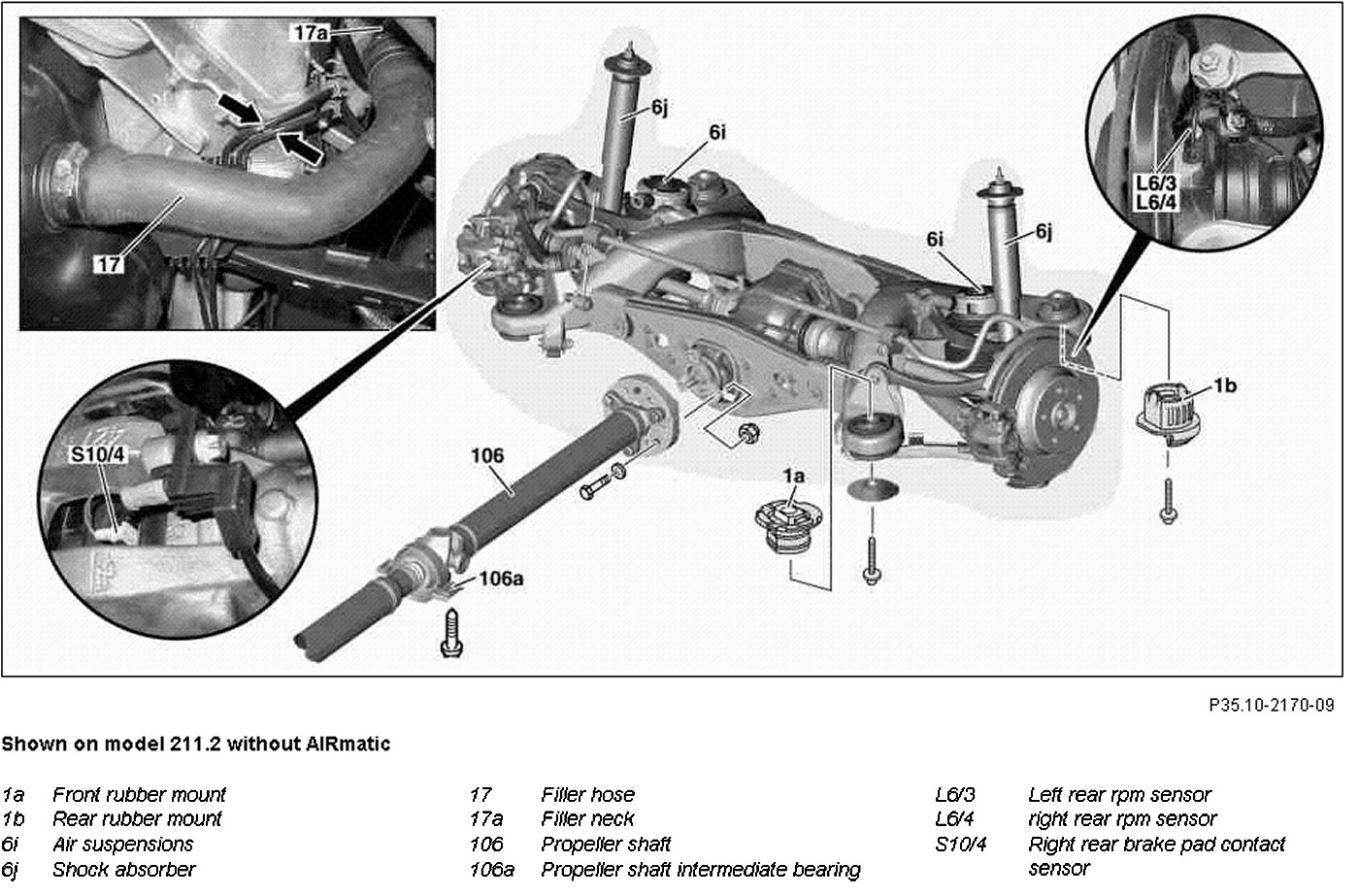

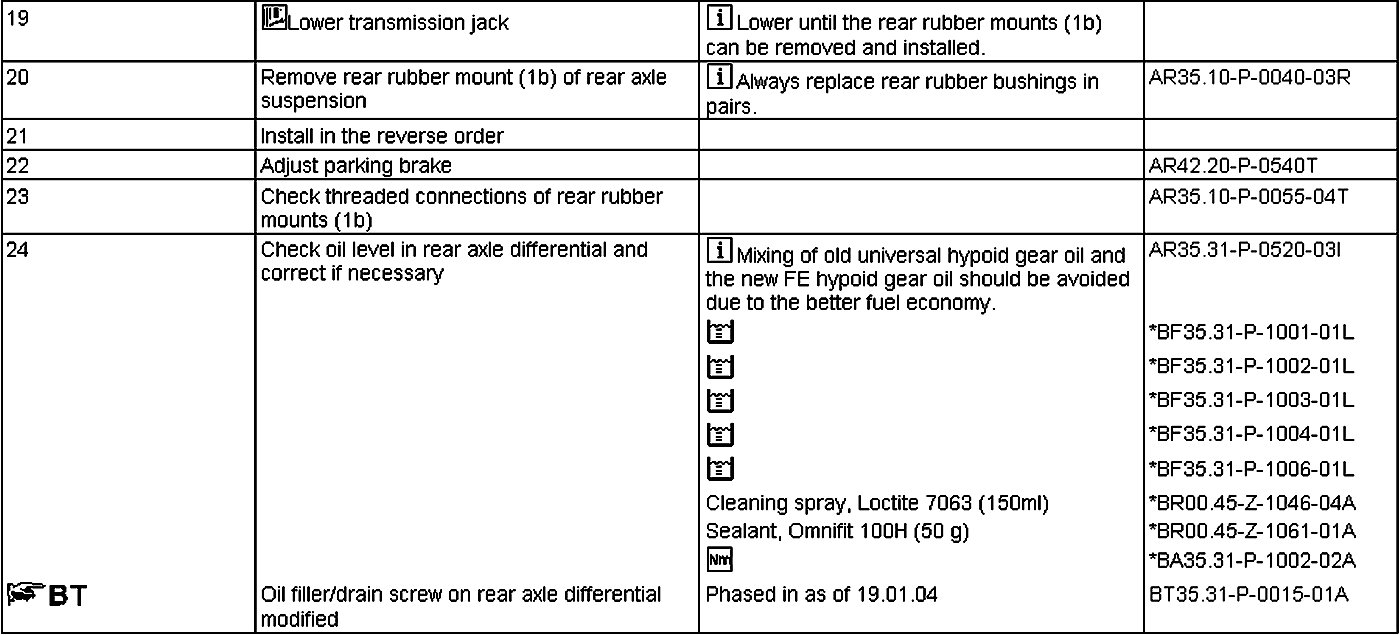

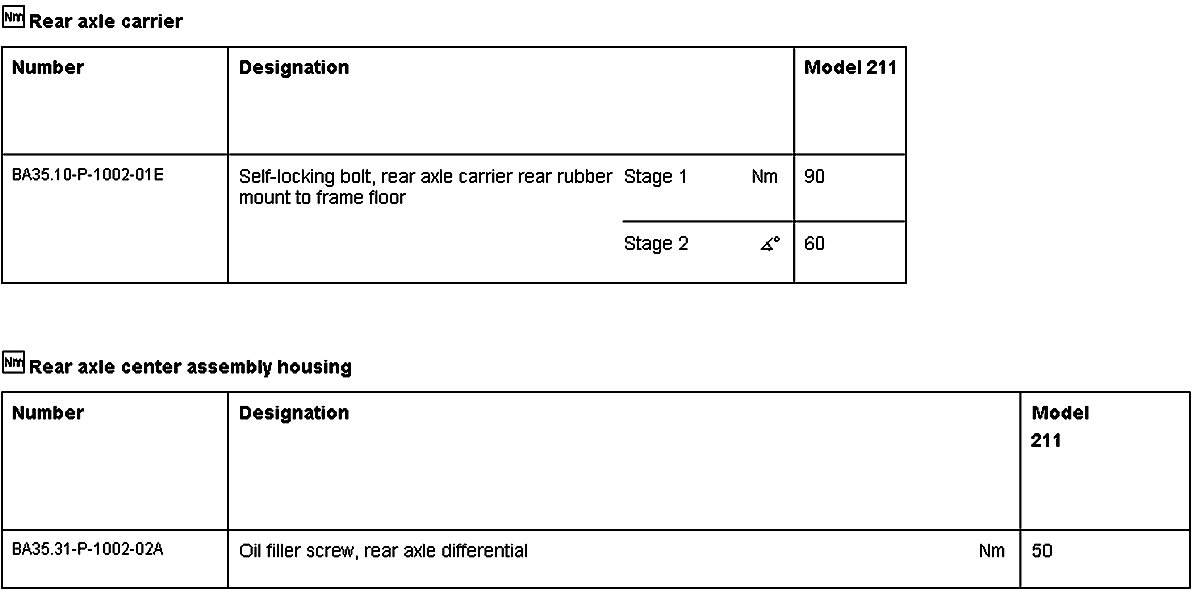

AR35.10-P-0042T Rear Rubber Bushing, Rear Axle Mount - Removal and Installation
AR35.10-P-0042T Rear Rubber Bushing, Rear Axle Mount - Removal and Installation
AR35.10-P-0042T Rear Rubber Bushing, Rear Axle Mount - Removal and Installation
