Procedures



AR32.20-P-0310M Install new stabilizer bar pivot bushing
- in spring control arm
- except CODE (487) Active Body Control (model 220, 230)

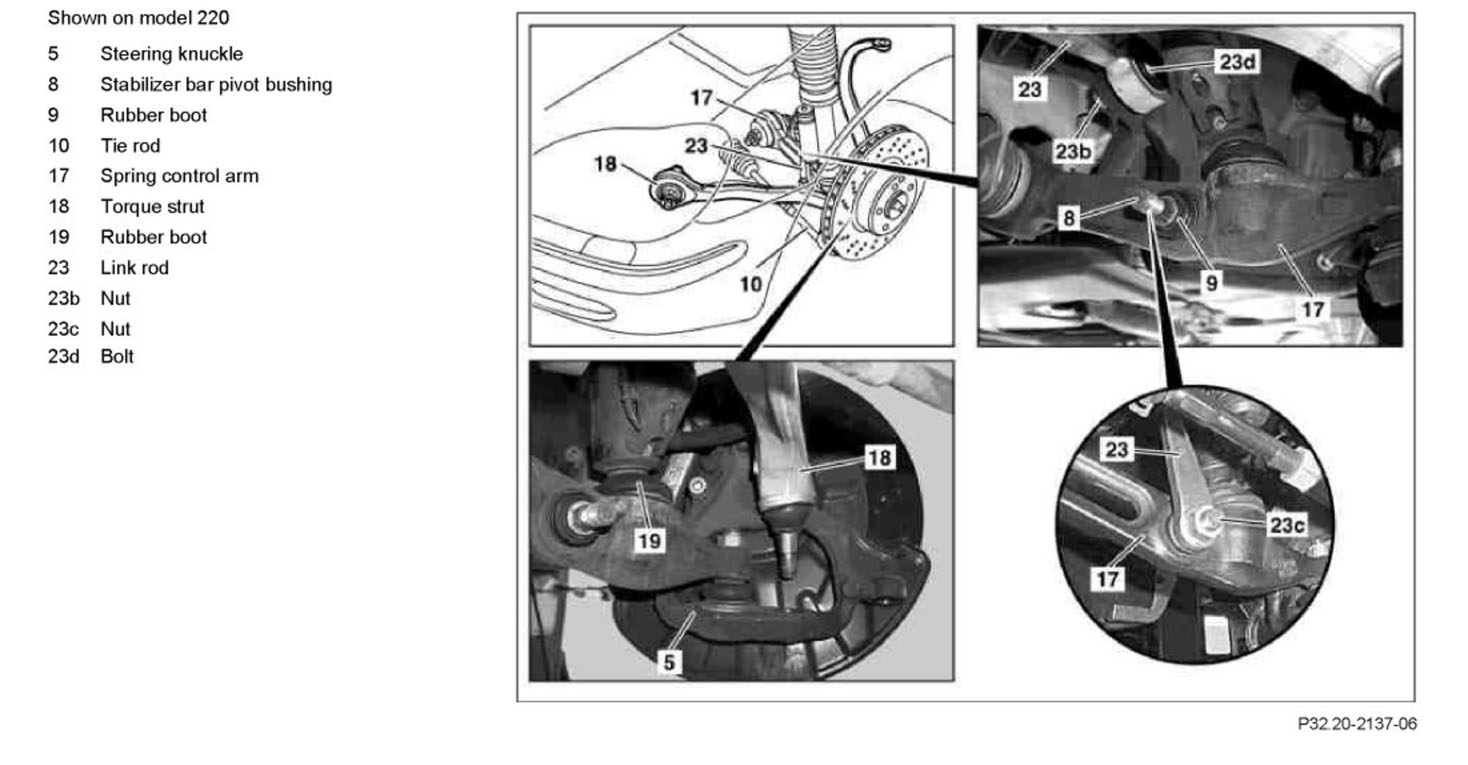

Component Identification:

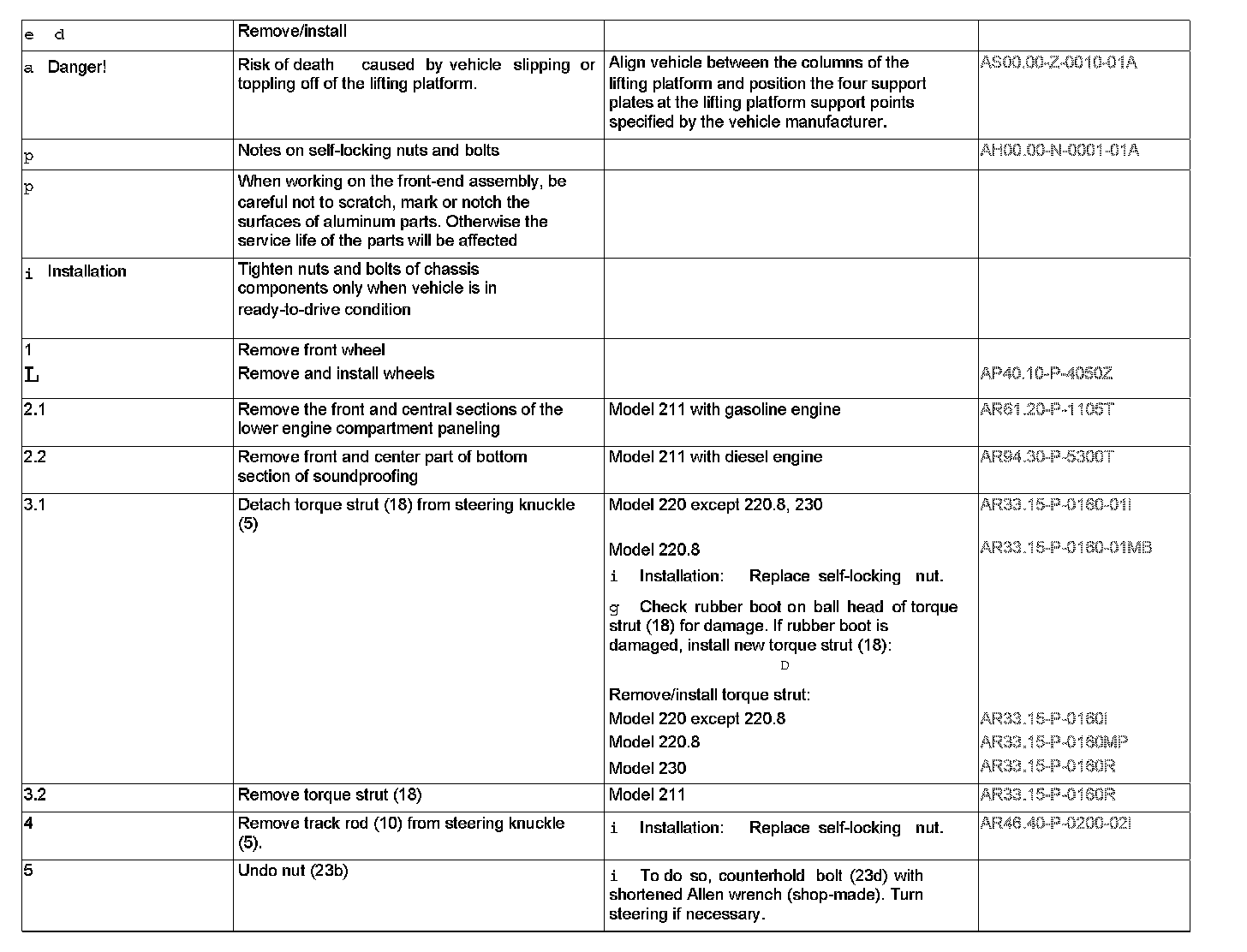

Steps 1-5:

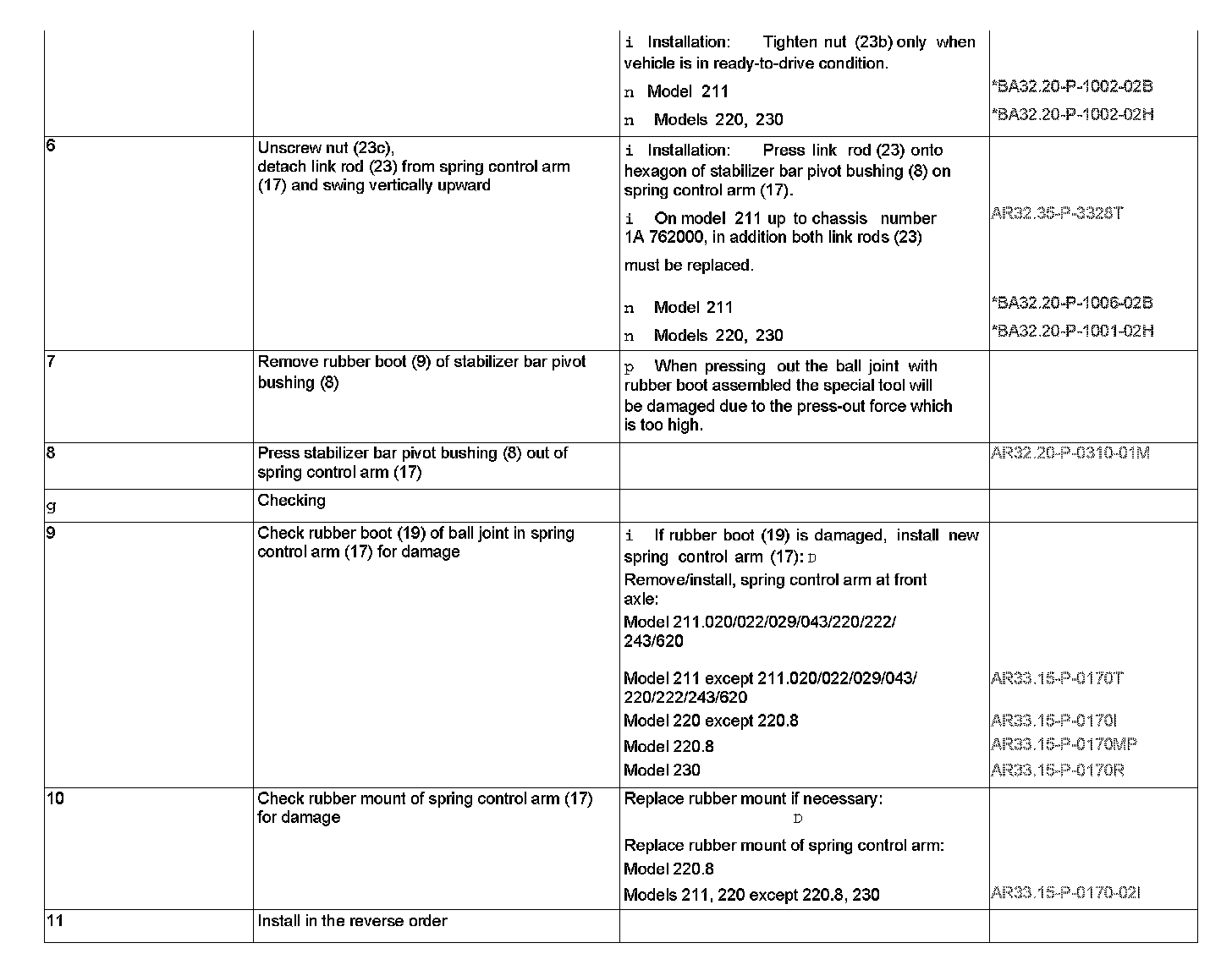

Remove/install Steps 6-11:

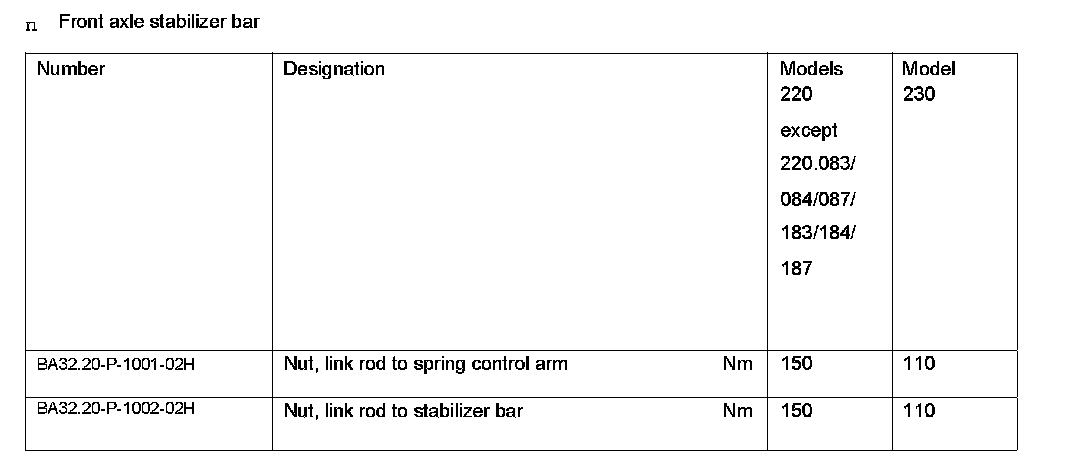

Front axle stabilizer bar:

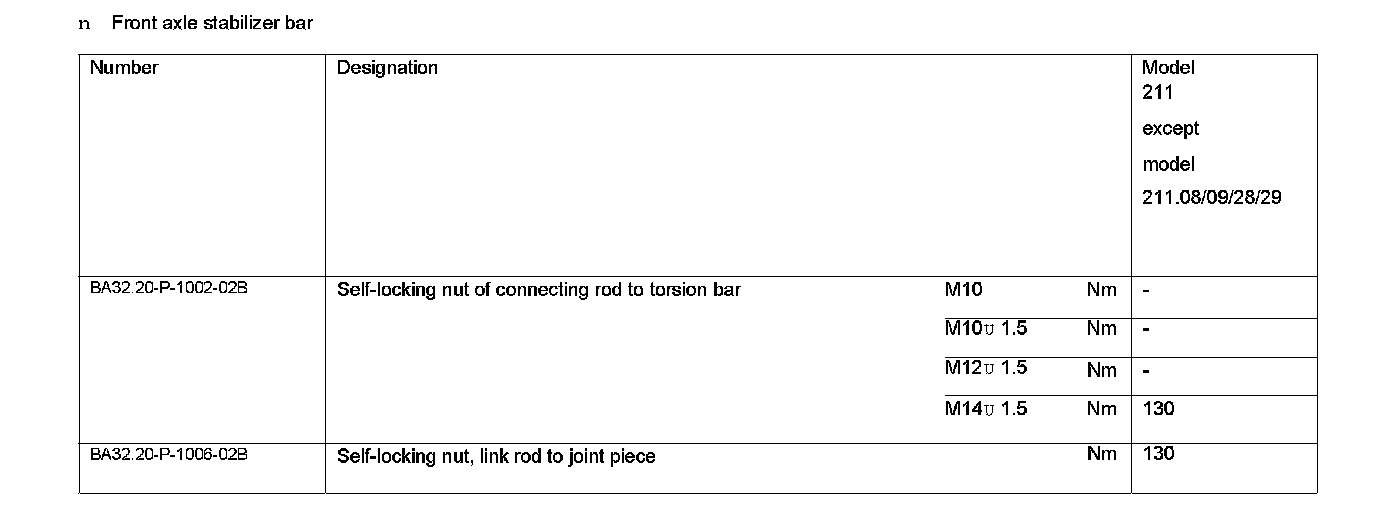

Front axle stabilizer bar:
