AR40.20-P-0322-01T Install Repair Bolt

AR40.20-P-0322-01T Install repair bolt

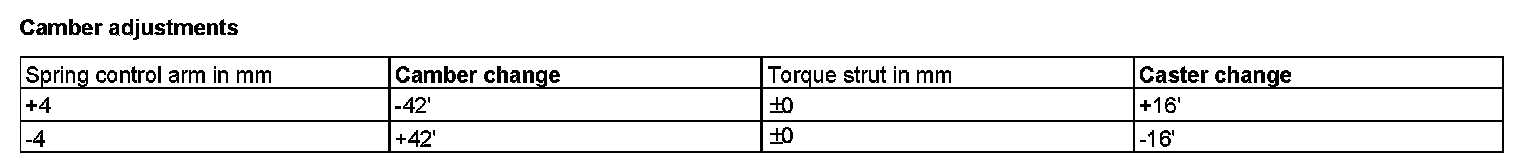

Camber Adjustments:

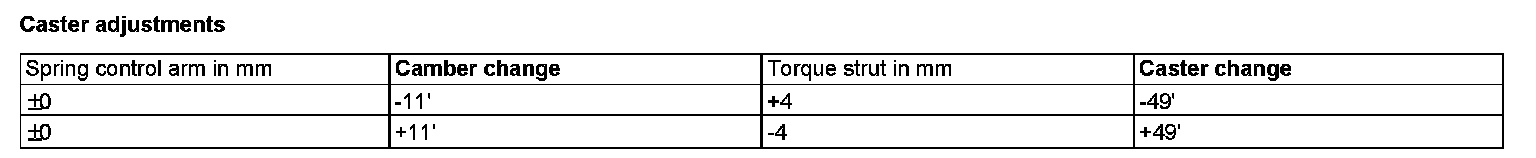

Caster Adjustments:

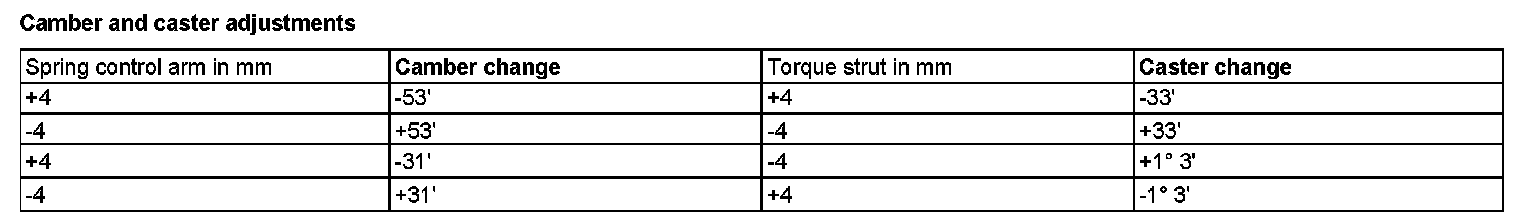

Camber And Caster Adjustments:

Component Identification:

1 Jack up vehicle at the front (the suspension must be fully rebounded).

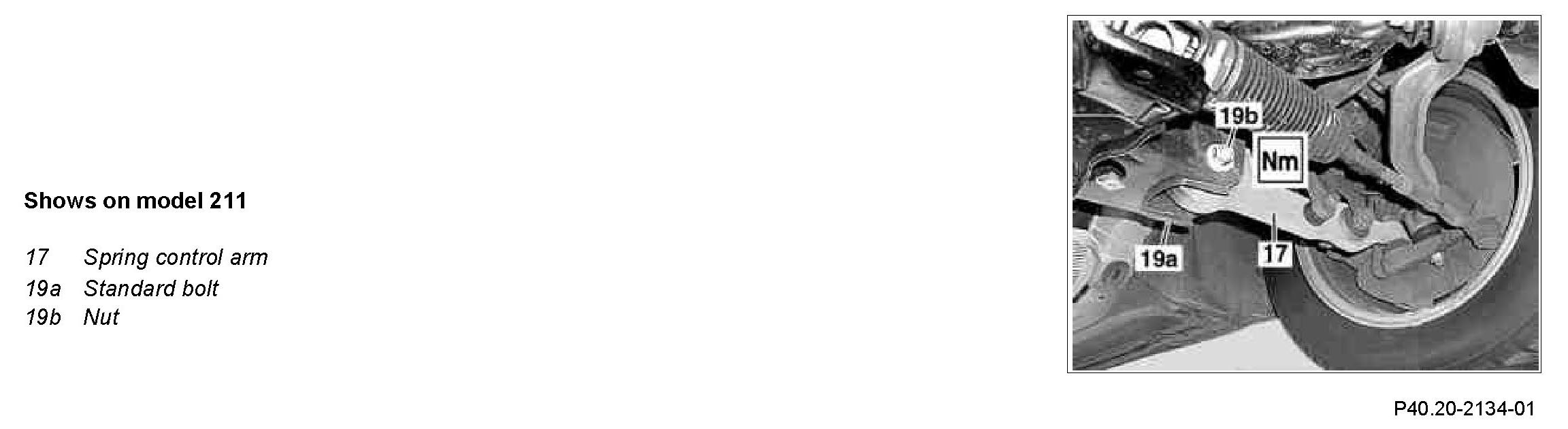

2 Remove series bolt (19a) with nut (19b) on spring control arm (17).

For camber correction.

Component Identification:

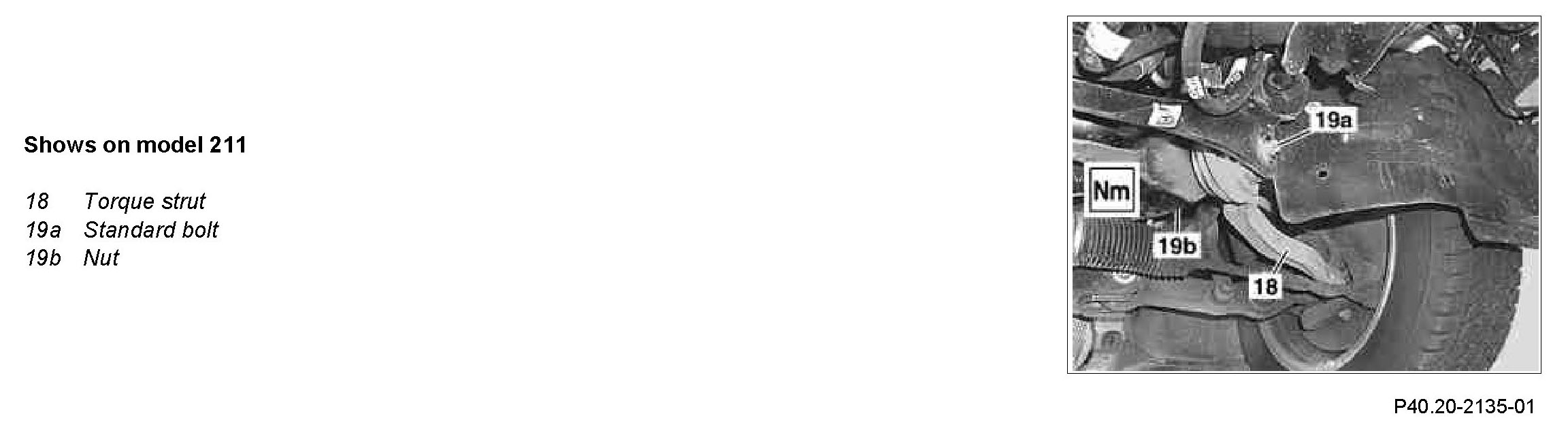

3 Remove series bolt (19a) with nut (19b) on torque strut (18).

For caster correction.

Component Identification:

4 For the adjustment of camber and caster replace the respective standard bolt (19a) on the torque strut (18) or spring control arm (17) by a repair bolt (19c).

Component Identification:

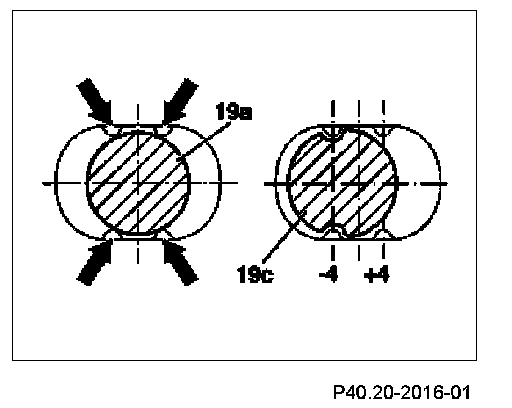

The standard bolt (19a) is centered by humps (arrows) in the rubber mount of the torque strut (18) or spring control arm (17). Due to grooves in the repair bolt (19c) this can be installed in the right or left position in the rubber mount, an adjustment range of the torque strut (18) or of the spring control arm (17) of 4 mm inwards or outwards occurring.

The repair bolt (19c) must not be twisted after fixing in position in the rubber mount of the torque strut (18) or of the spring link (17). Do not yet tighten nut (19b) to enable the rubber mount on the torque strut (18) or of the spring control arm (17) to rotate when the vehicle is rocked to settle the suspension.
