AR35.20-P-0114-01I Remove/Install Spring Control Arm Rubber Mount

AR35.20-P-0114-01I Remove/install spring control arm rubber mount

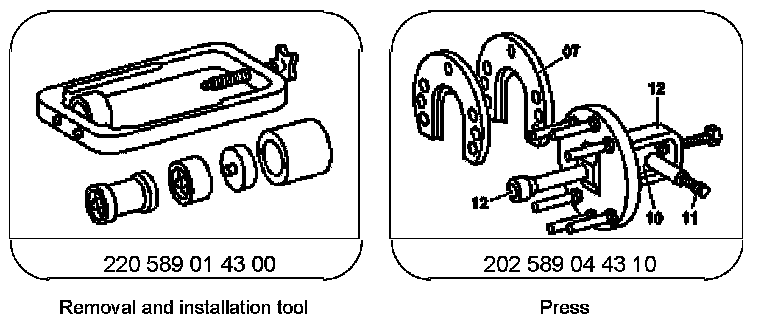

Special Tools:

Removing

Component Identification:

Model 215, 220

1.1 Detach exhaust bracket from rear axle carrier.

Model 211, 216, 220, 230

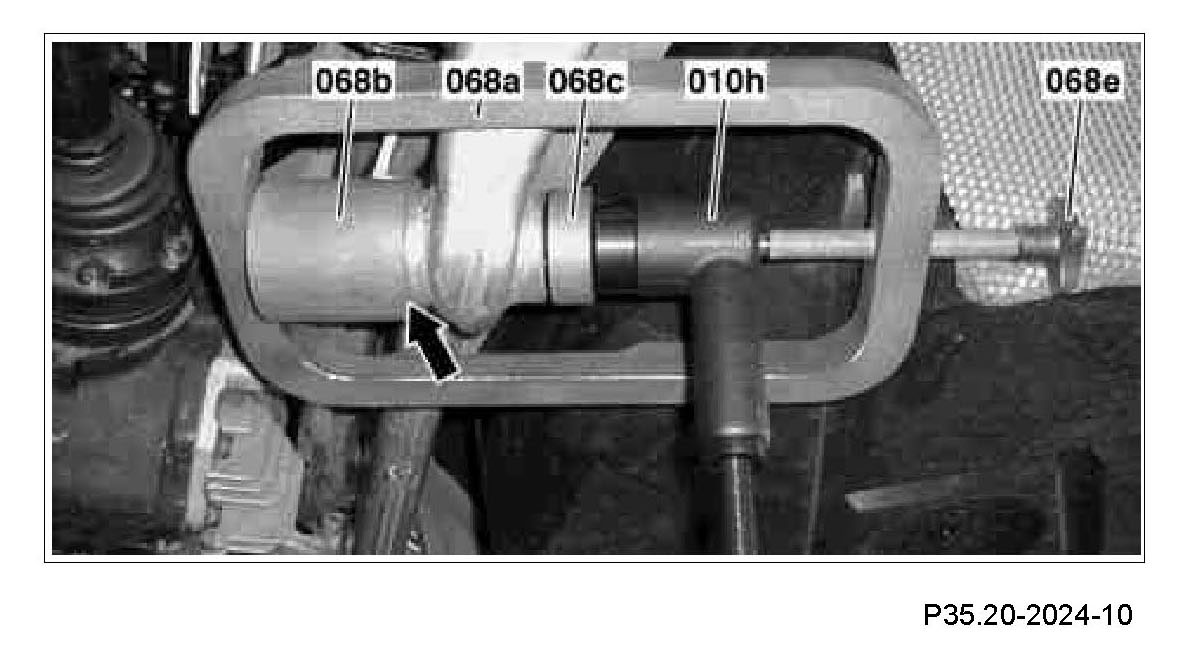

2 Mount sleeve (068b) on bracket (068a).
3 Position removal and insertion tool using thrust piece (068c) and press (010h) on rear axle carrier.
4 Fix press (010h) and thrust piece (068c) in position by tightening the hand wheel (068e)

Pay attention to the chamfer (arrow) on the sleeve (068b) It must fit exactly against the rear axle carrier.

Component Identification:

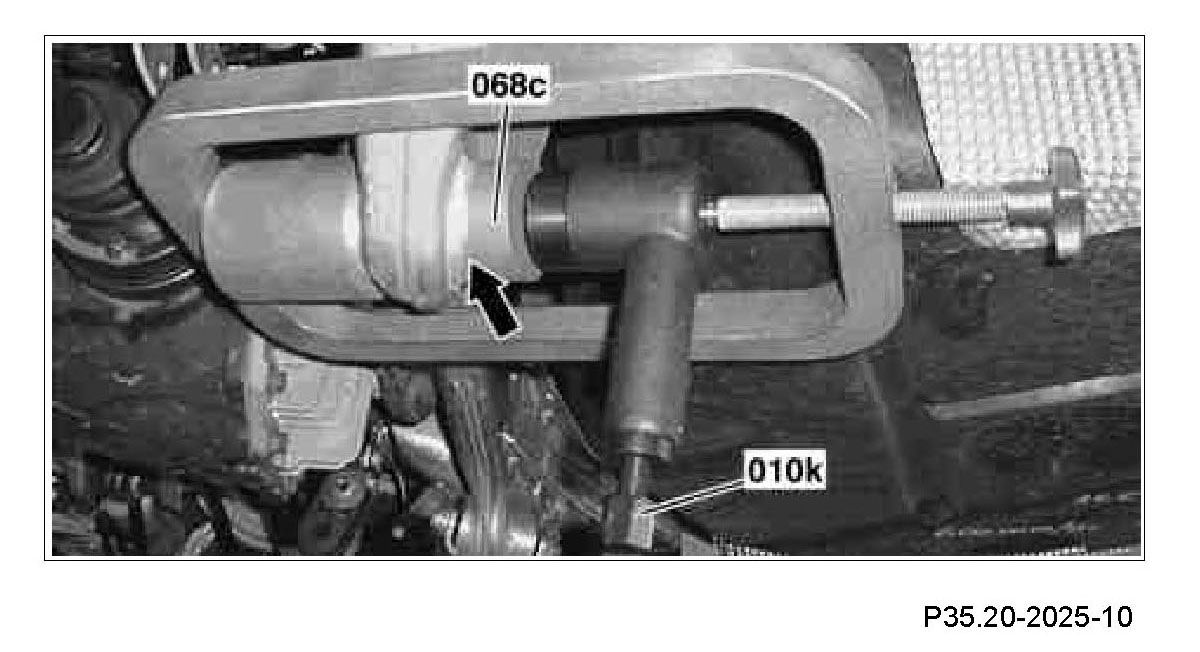

5 Press rubber mount part of the way out until the thrust piece (068c) lies against the rear axle carrier (arrow). To do this screw in the pressure screw (010k) of the press (010h).

Pushing out the mount prevents the rubber bearing outer race from expanding. If the rubber mount is seized on the bracket (068a), apply a settling blow.

Component Identification:

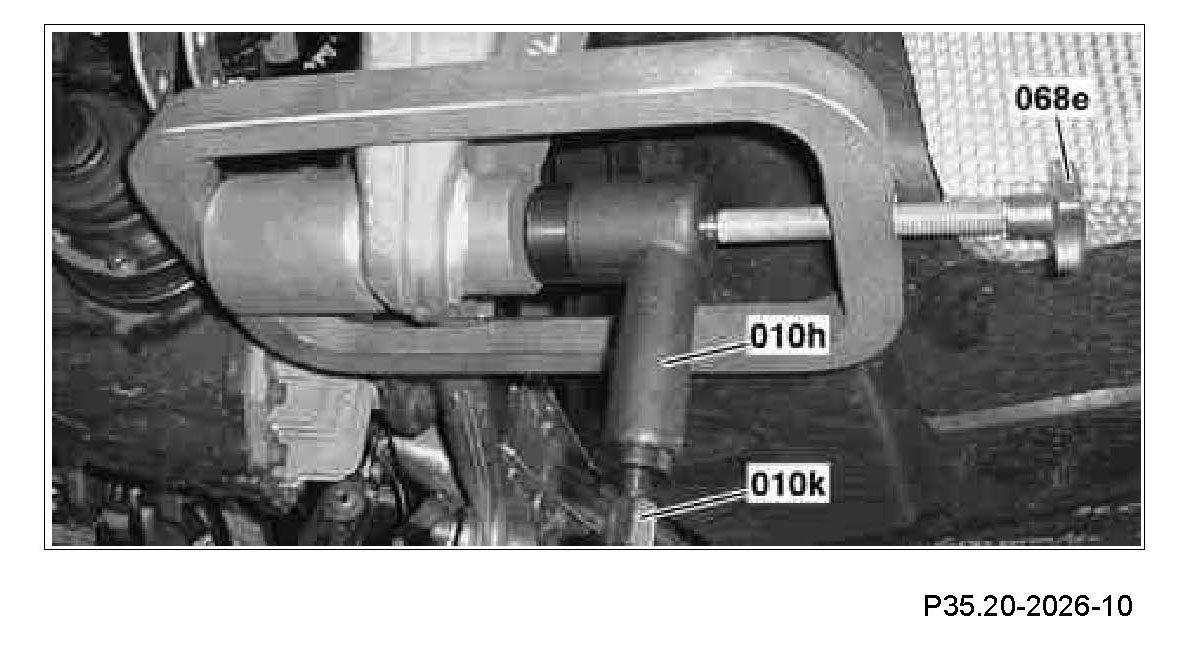

Removal and insertion tool of the rubber mount: To move out the piston, screw in the pressure screw (010k) of the press (010h) until the piston has moved out completely.

Due to the short stroke of the press (010h) this process must be repeated approx. 5 times.

To do this, the piston is to be moved back by turning back the pressure screw (010k) and simultaneously tightening the hand wheel (068e). The spindle of the hand wheel (068e) must always exert a little pressure onto the press (010h) so that the tools cannot fall out.

Component Identification:

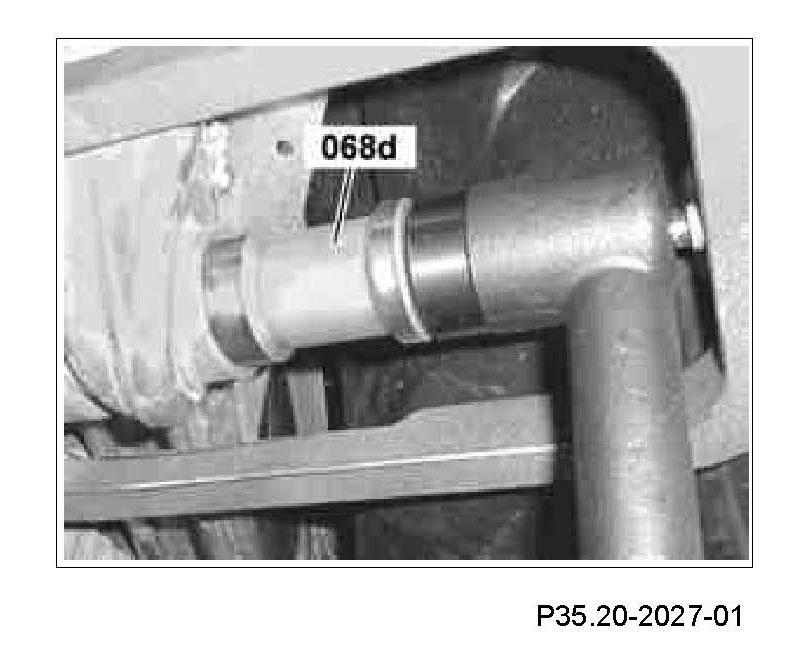

6 Insert the thrust piece (068d) and press out the rubber mount.

Install

Component Identification:

Model 211, 215, 220, 230

7 Replace sleeve (068b) on bracket (068a) by sleeve (0680.
8 Insert rubber mount (6b) into hole in rear axle carrier.

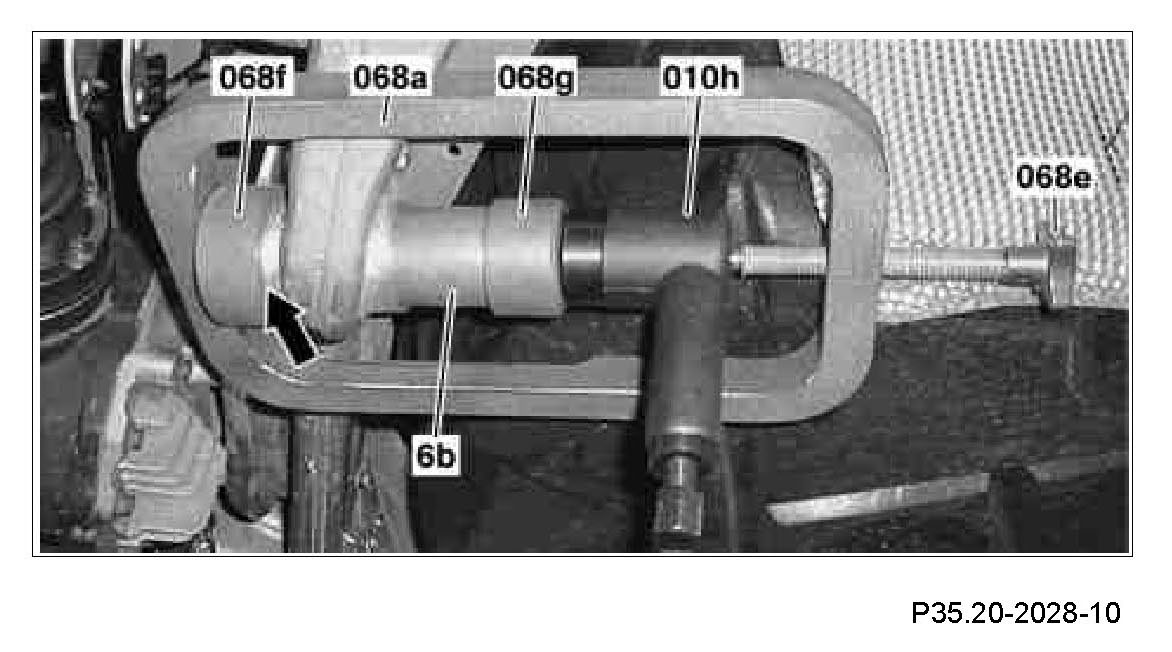

9 Position removal insertion tool with thrust piece (068g) and press (010h) on rear axle carrier.
10 Fix the press (010h) and thrust piece (068g) in position by tightening the hand wheel (068e).

Pay attention to the chamfer (arrow) on the sleeve (068f) It must fit exactly against the rear axle carrier.

Component Identification:

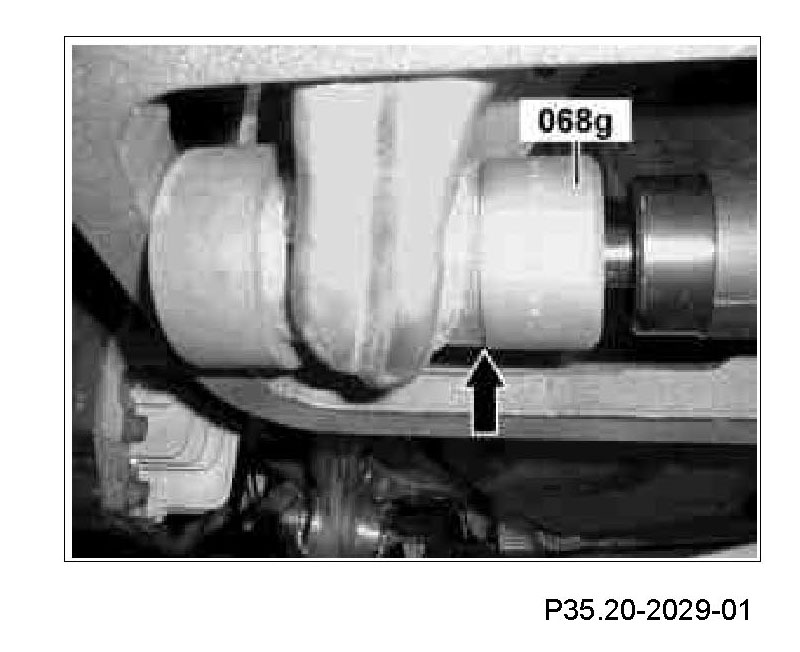

11 Press the rubber mount (6b) into the rear axle carrier until the thrust piece (068g) abuts the rear axle carrier (arrow).

Model 215, 220
12.1 Mount exhaust bracket on rear axle carrier.
