AR33.20-P-0429T Check Front Axle Supporting Joints
AR33.20-P-0429T Check Front Axle Supporting Joints
AR33.20-P-0429T Check front axle supporting joints

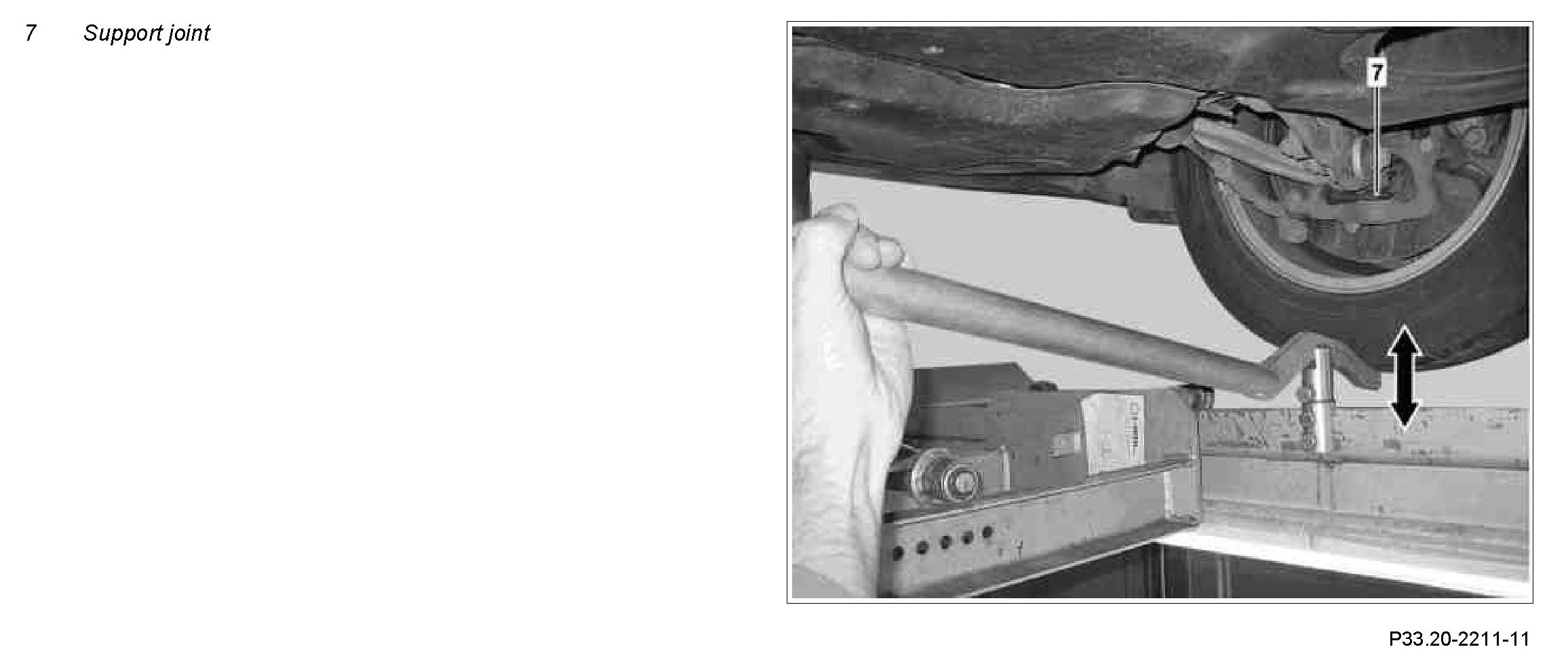

Component Identification:
Component Identification:

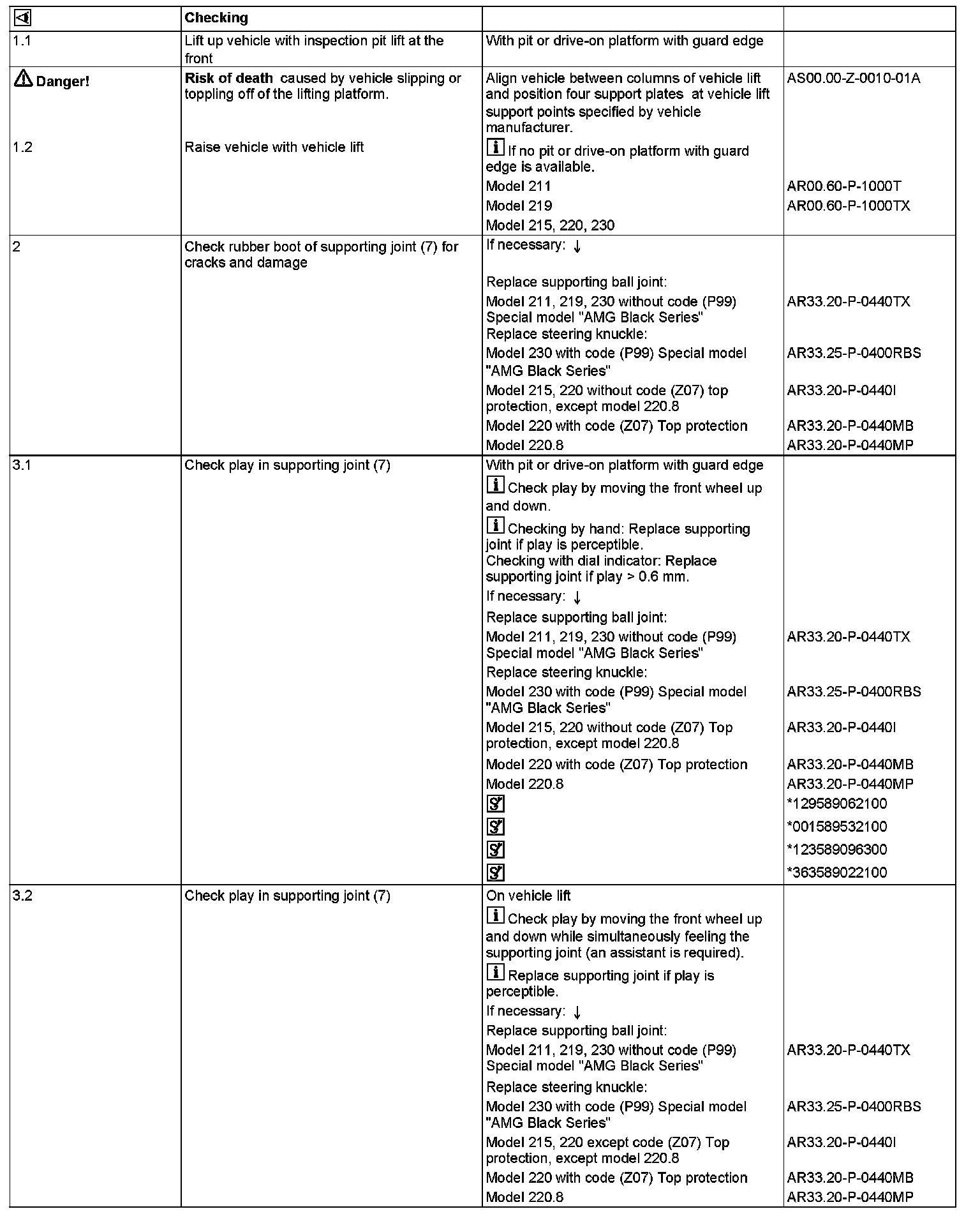

Steps 1.1-3.2:

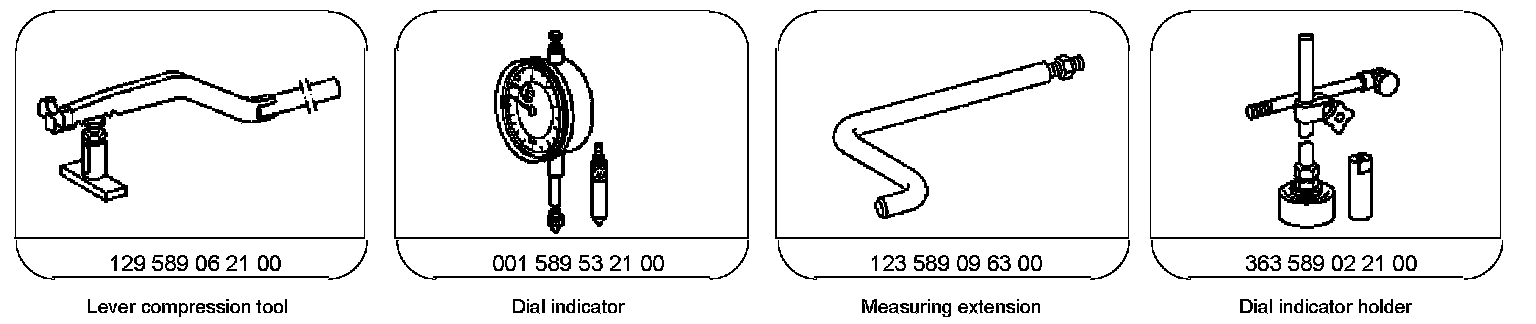

Special Tools:
