AP33.20-P-3353BA Inspect Front Axle Joint For Play, Inspect Rubber Boots

Inspect Front Axle Joint For Play, Inspect Rubber Boots

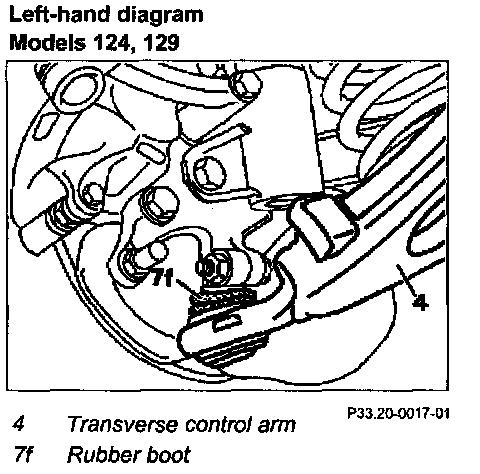

Left-hand Diagram Models 124, 129:

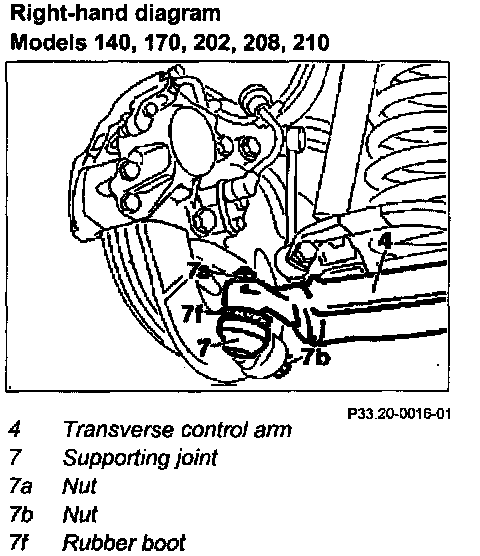

Right-hand Diagram Models 140, 170, 202, 208, 210:

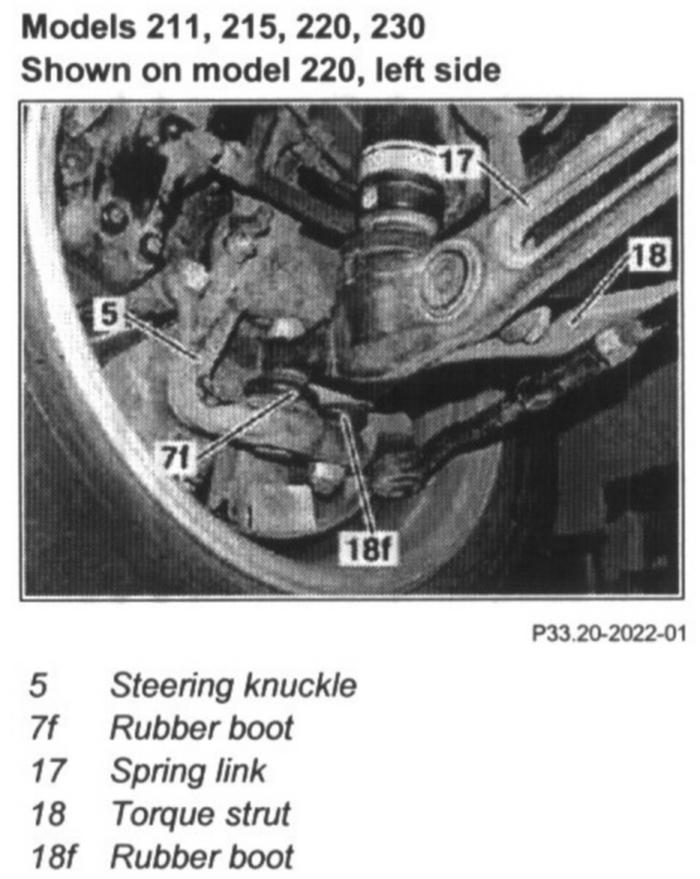

Models 211, 215, 220, 230 Shown On Model 220, Left Side:

1 Check rubber boot (7f) on supporting joint for leakage and condition.

CAUTION: If the rubber boot (7f) is leaking:
- Install new supporting joint (7) or lower transverse control arm (4):
- Install new supporting joint (7)
- Install new lower transverse control arm (4)

2 Check rubber boot (18f) on ball joint of torque strut (18) for leakage and condition.

CAUTION: If the rubber boot (18f) is leaking: Install new torque strut (18).


3 Check rubber boot on follower joint for leakage and condition.

CAUTION: If rubber boot is leaking (e.g. grease flowing out): Replace upper transverse control arm.

4 Check follower joint for play

CAUTION: If there is play in the follower joint: Replace upper transverse control arm.
