AR46.40-P-0200T Remove/Install Outer Tie Rod

Remove/Install Tie Rod

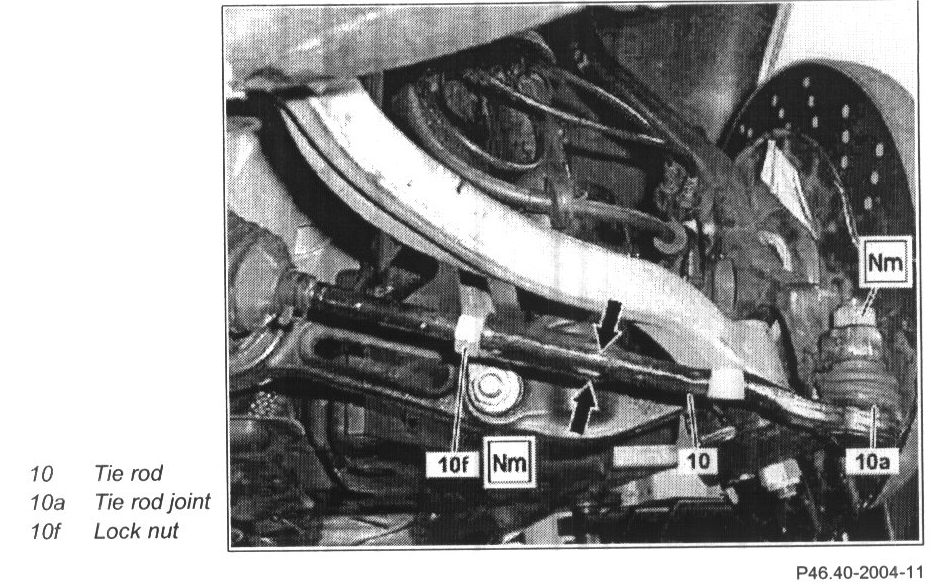

1 Press tie rod joint (10a) out of steering knuckle assembly.

CAUTION: Installation: Replace self-locking nut.

2 Loosen lock nut (10f) and unscrew tie rod (10)

NOTE: Counterhold the tie rod (10) to slacken the lock nut (10f) (arrows).

3 Install in the reverse order
4 Check front wheel toe and adjust if necessary.
