Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Component Tests and General Diagnostics >> Leaks at the Internal Steering Lines on Control Head Connection and/or Steering Gear Housing Connection [AF46.20-P-4045BU]

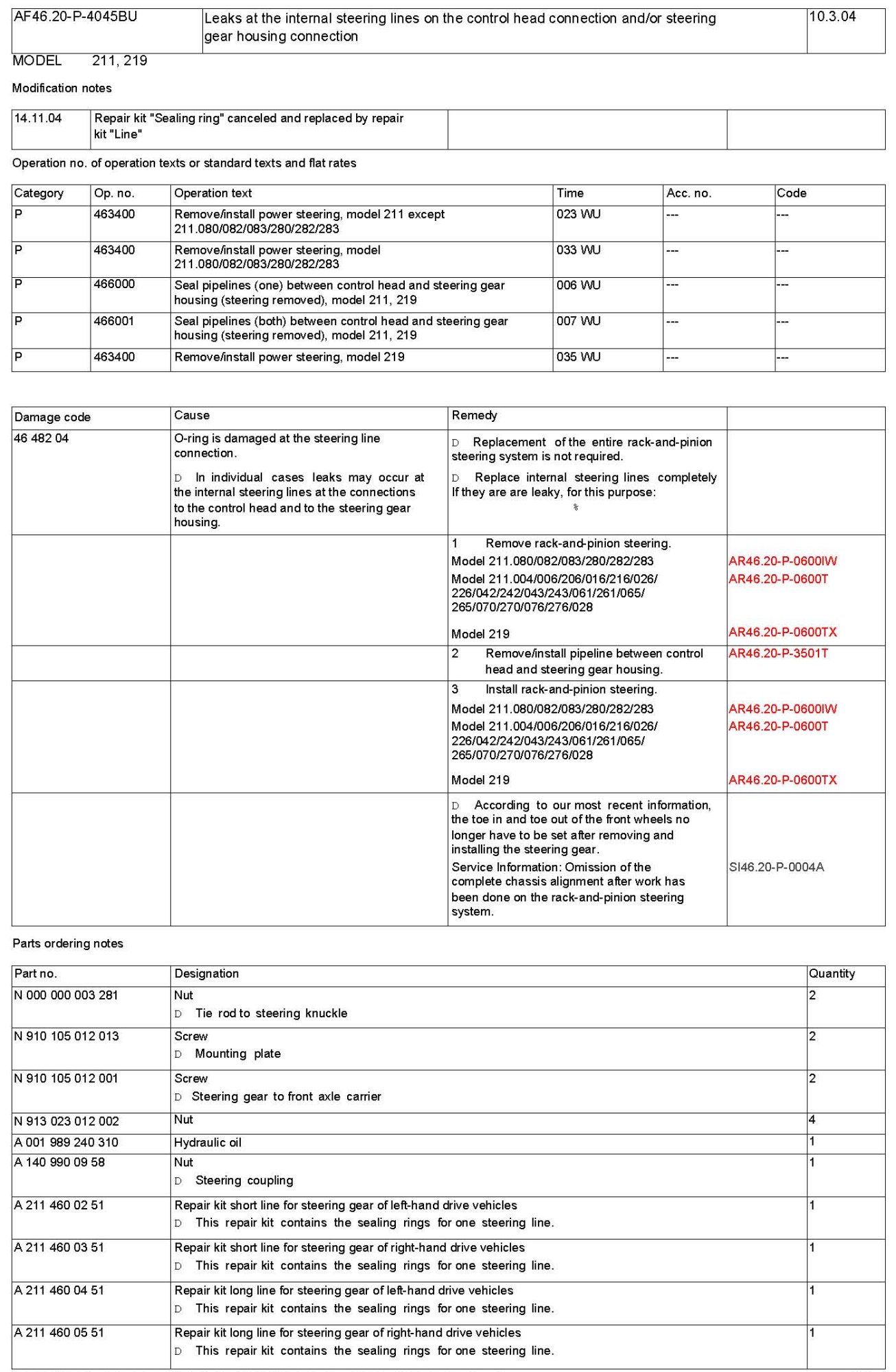

Leaks at the Internal Steering Lines on Control Head Connection and/or Steering Gear Housing Connection [AF46.20-P-4045BU]


Leaks at the internal steering lines on control head connection
