AP46.00-P-4653F Check Track Rod and Drag Link Linkage For Play, Check Rubber Boots



AP46.00-P-4653F Check track rod and drag link linkage for play, check rubber boots

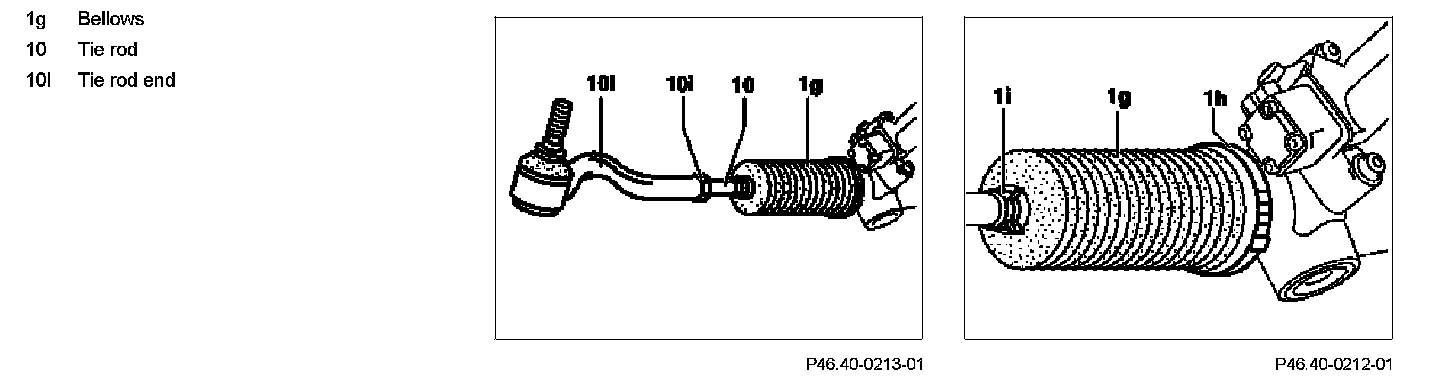

Component Identification:

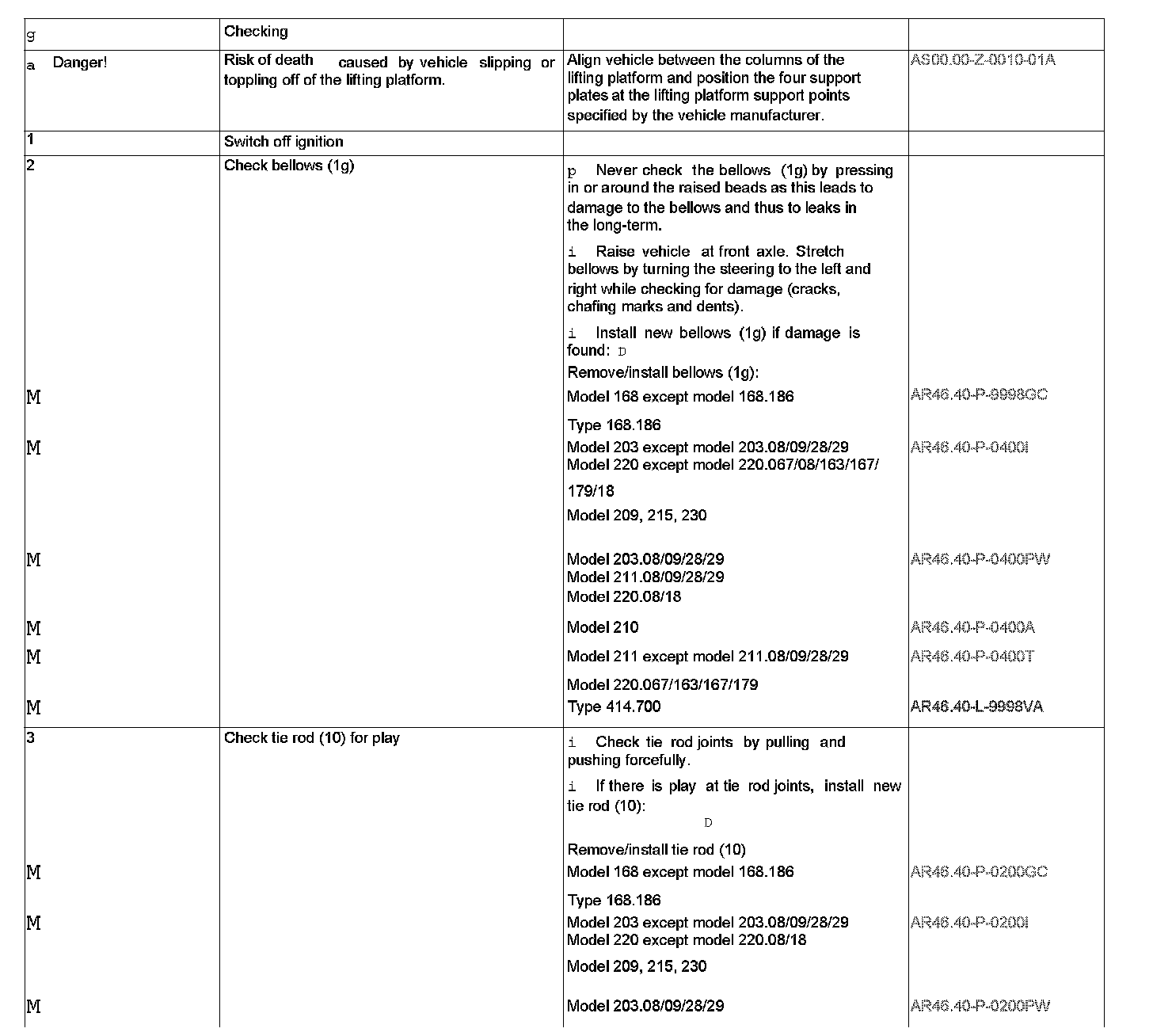

Steps 1-3:




Remove/install Step 4:
