AR46.11-P-0003T Remove/Install Steering Wheel Heater Electronics (SHE)

Removing, Installing Steering Wheel Heater Electronics (SHE)

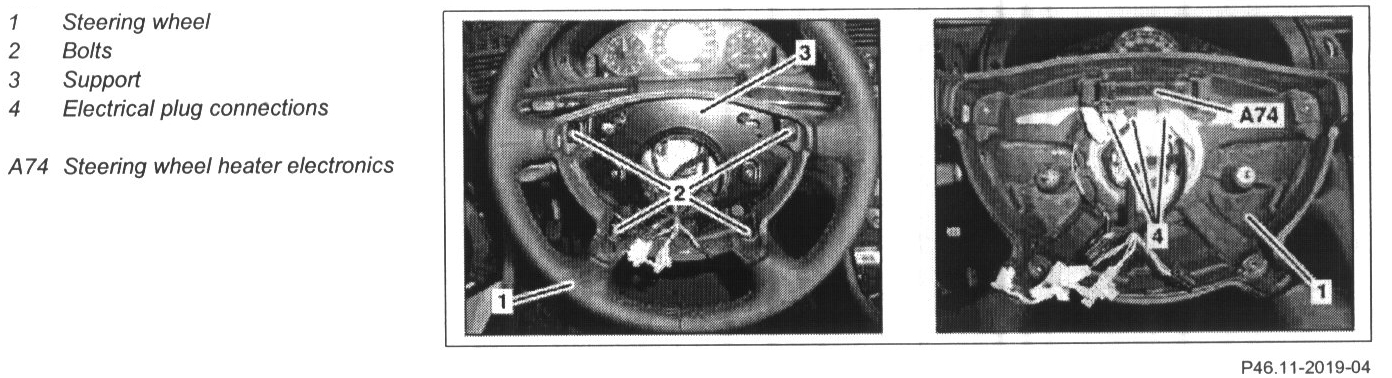

1 Remove airbag unit from steering wheel (1)
2 Unscrew screws (2) and remove support (3)
3 Remove steering wheel heater electronics (A74) from steering wheel (1) so that electrical connectors (4) can be accessed
4 Unplug electrical connectors (4) and remove steering wheel heater electronics (A74)
5 Install in the reverse order.
