AR46.20-P-3015P Check/Adjust Center Steering Position on Steering Gear



AR46.20-P-3015P Check and adjust center steering position on steering gear

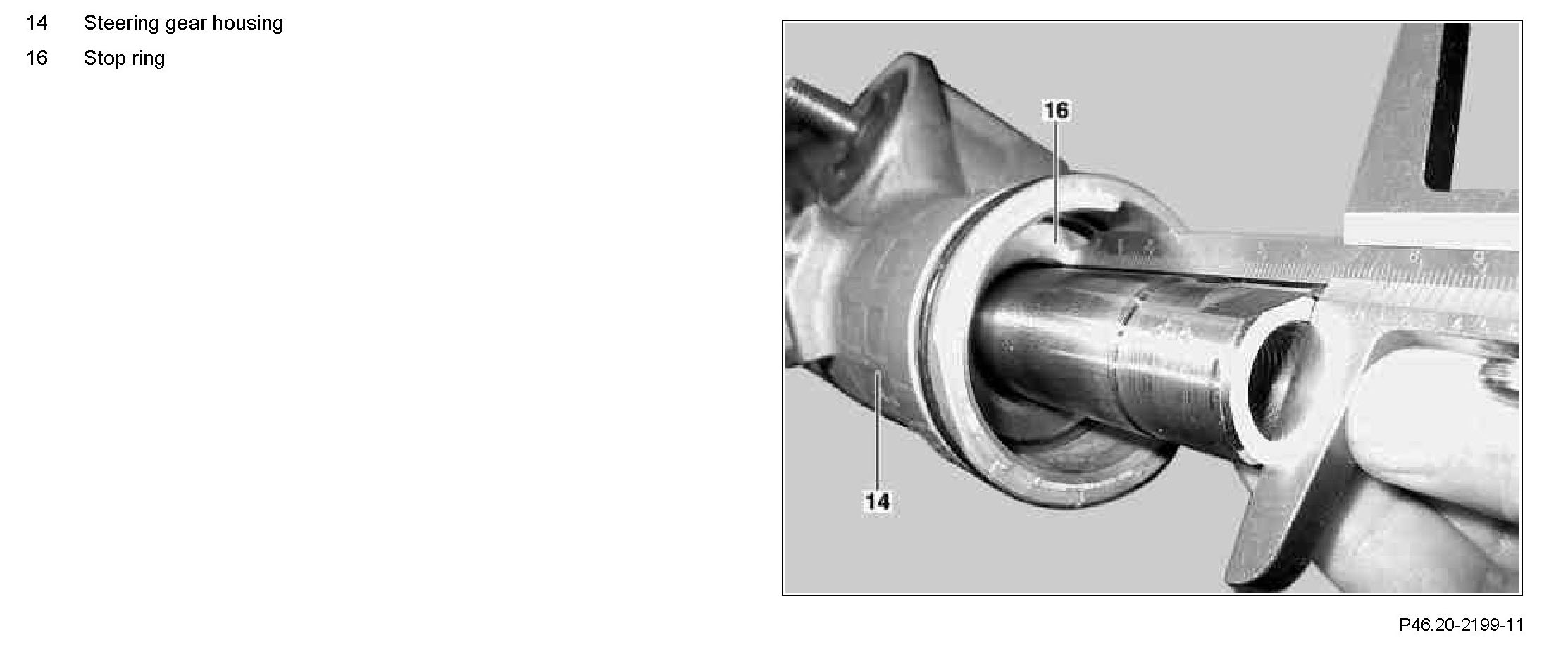

Component Identification:

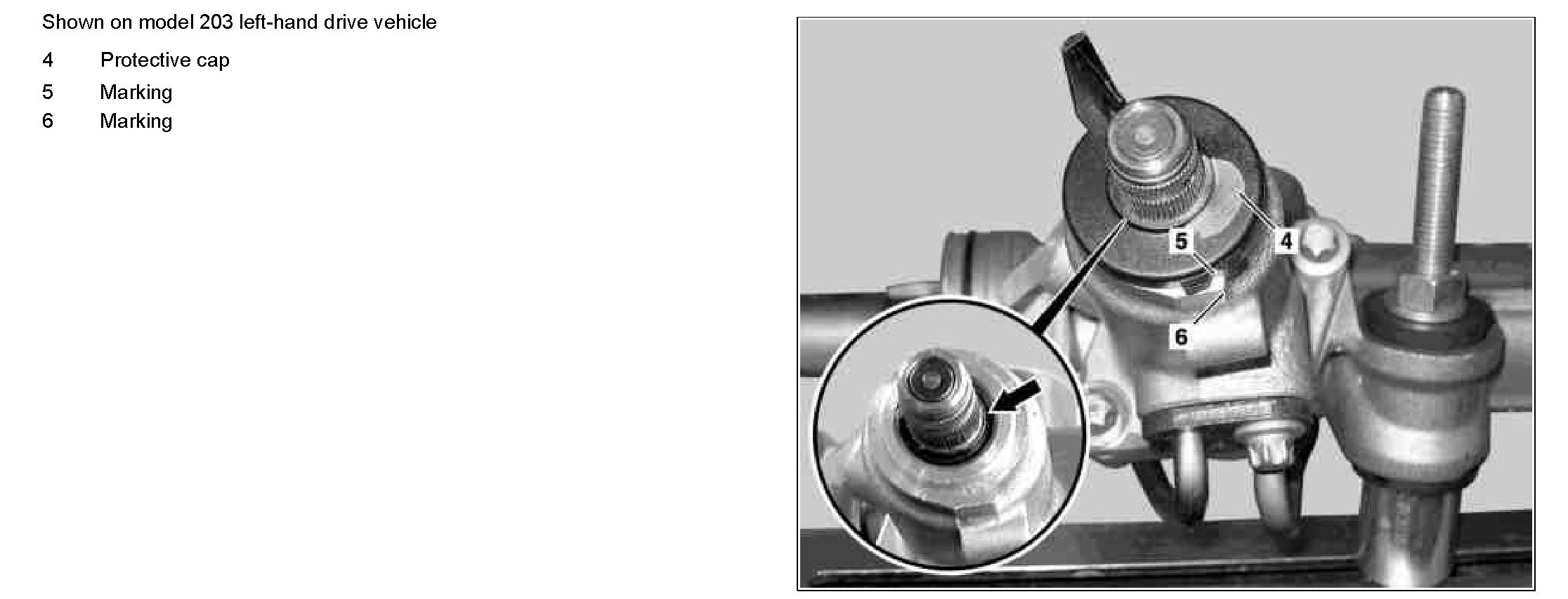

Component Identification:

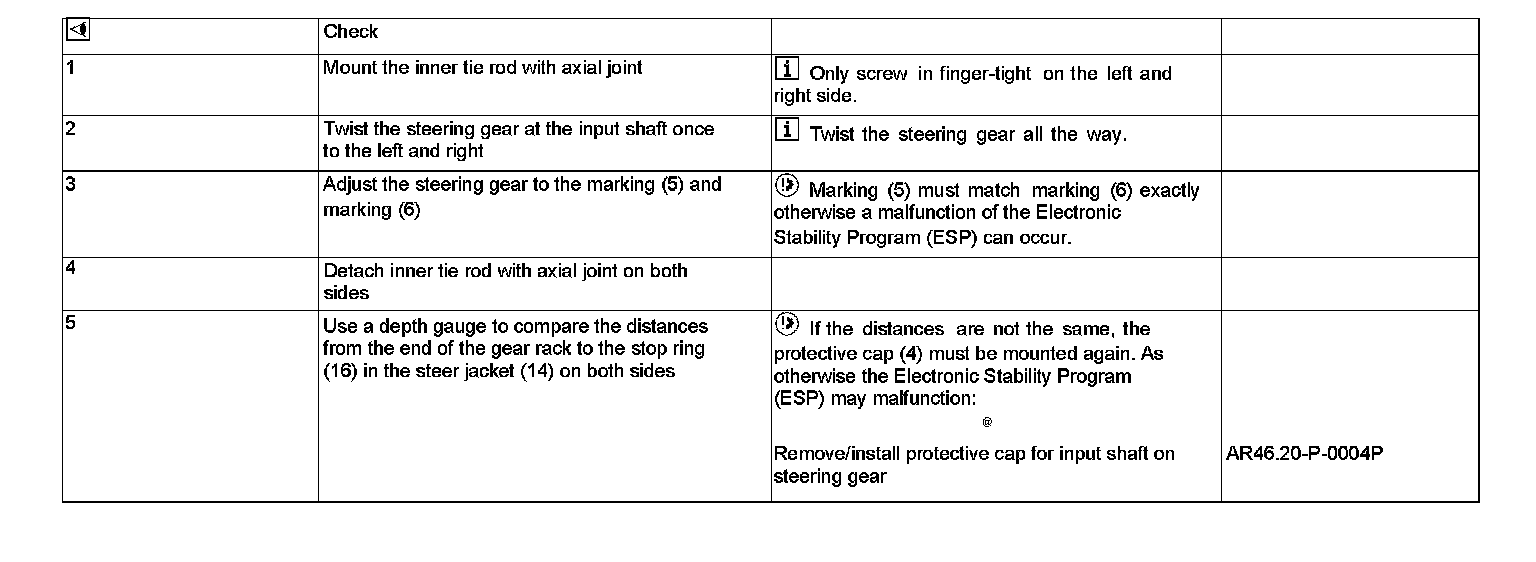

Steps 1 - 5:
