Steering Gear Mount: Service and Repair

AR46.20-P-0600-02I Removing and installing rubber mounts on rack-and-pinion steering mounting

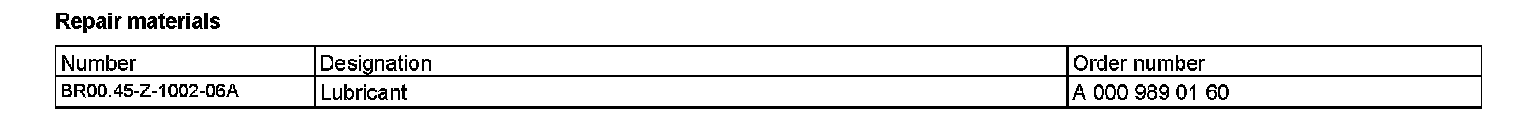

Repair materials

Repair materials:

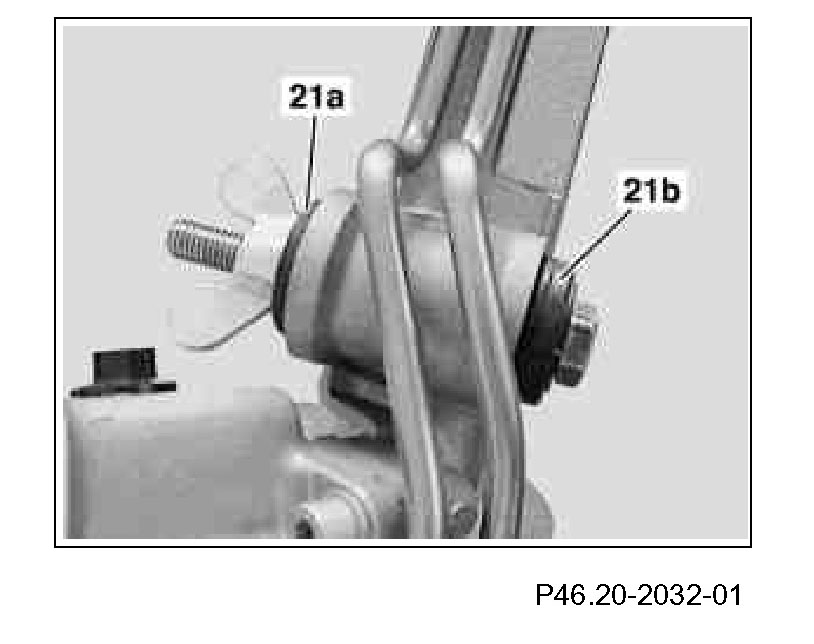

Component Identification:

Remove
1 Press out divided rubber mount (21a, 21b) using a suitable tool.

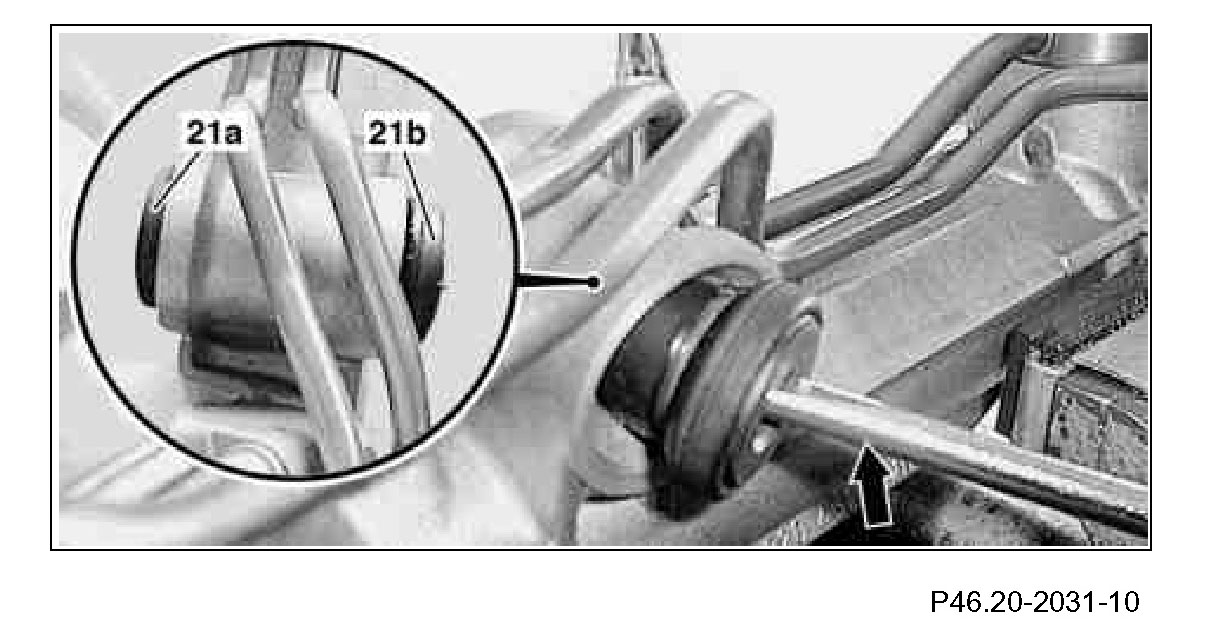

Component Identification:

Install
2 Rub the circumference of the divided rubber mounts (21a, 21b) with liquid lubricant (Naphtolen H).
3 Hammer in divided rubber mounts (21a, 21b) as far as possible using a rubber hammer.
4 Draw in divided rubber mounts (21a, 21b) completely using bolt and wing nut.
