AR46.10-P-0600-06T Remove/Install Height Adjustment Motor Gear Mechanism

AR46.10-P-0600-06T Remove/install height adjustment motor gear mechanism
- with CODE (275) Memory package (driver's seat, steering column, mirrors)

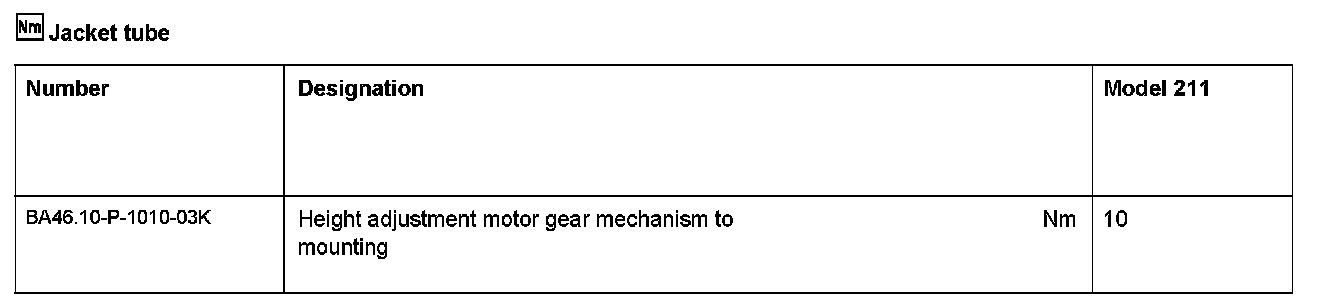

Jacket Tube:

Remove

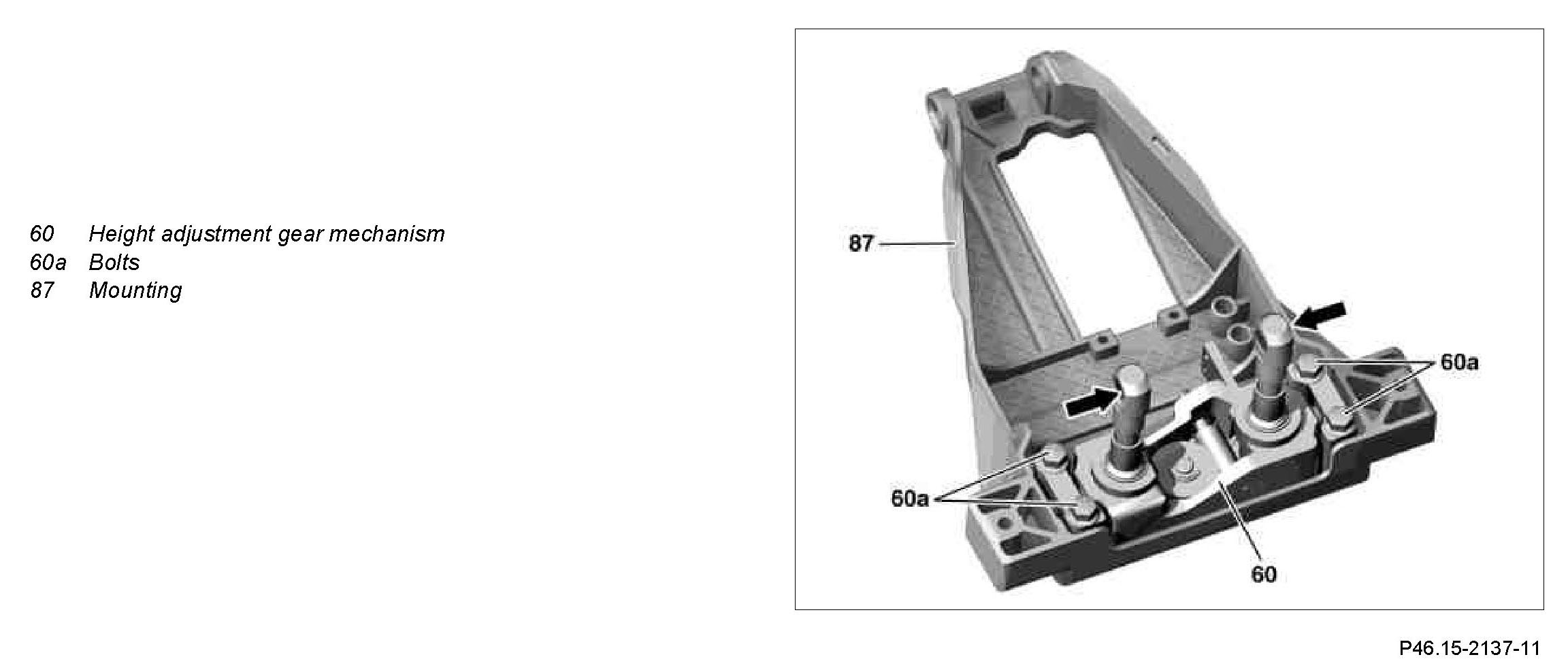

Component Identification:

1 Remove bolts (60a) of height adjustment gear mechanism (60) and remove height adjustment gear mechanism (60) from mounting (87).

Install
2 Insert height adjustment gear mechanism (60).
3 Fit bolts (60a) of height adjustment gear mechanism (60) and tighten.

Do not tighten the bolts (60a) until the mounting (87) is installed on the jacket tube.

4 Check alignment of the two bolt holes (arrows). To do this, feed a suitable bolt through both bolt holes and, if necessary, rotate the bolt in order to adjust the height.
