AR46.10-P-0600-05T Remove/Install Height Adjustment Motor

AR46.10-P-0600-05T Remove/install height adjustment motor
- with CODE (275) Memory package (driver's seat, steering column, mirrors)

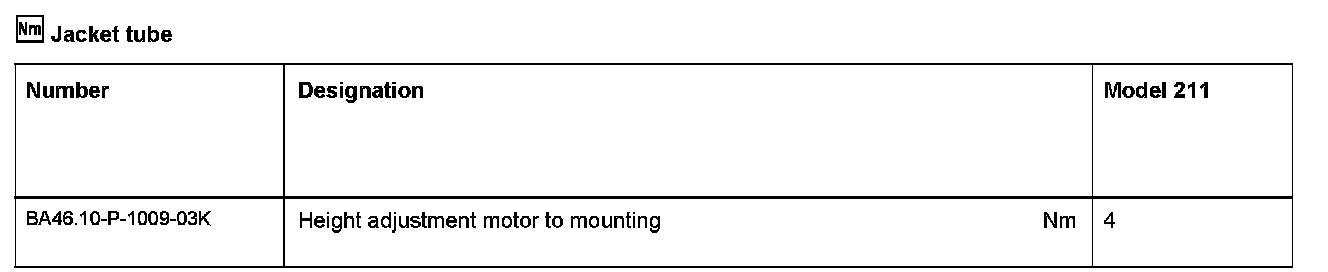

Jacket Tube:

Remove

Component Identification:

1 Unclip electrical connector for height adjustment up/down motor (M20x2) from cable holder (61).
2 Unclip cable holder (61).
3 Remove bolts (1) from height adjustment up/down motor (M20m2).
4 Remove height adjustment motor (M20m2), detaching gear mechanism coupling (60e) from height adjustment gear mechanism (60).
5 Detach gear mechanism coupling (60e) from height adjustment motor (M20m2).

Install
6 Push gear mechanism coupling (60e) onto height adjustment motor (M20m2).
7 Insert height adjustment motor (M20m2), pushing gear mechanism coupling (60e) onto height adjustment gear mechanism (60).
8 Fit bolts (1).
9 Align height adjustment motor (M20m2) centrally to mounting recess (arrow) and tighten bolts (1).
10 Clip in cable holder (61).
11 Clip electrical connector for height adjustment motor (M20x2) into cable holder (61).
