SM46.00-P-0002A Check Steering-Wheel Torque



SM46.00-P-0002A Check steering-wheel torque

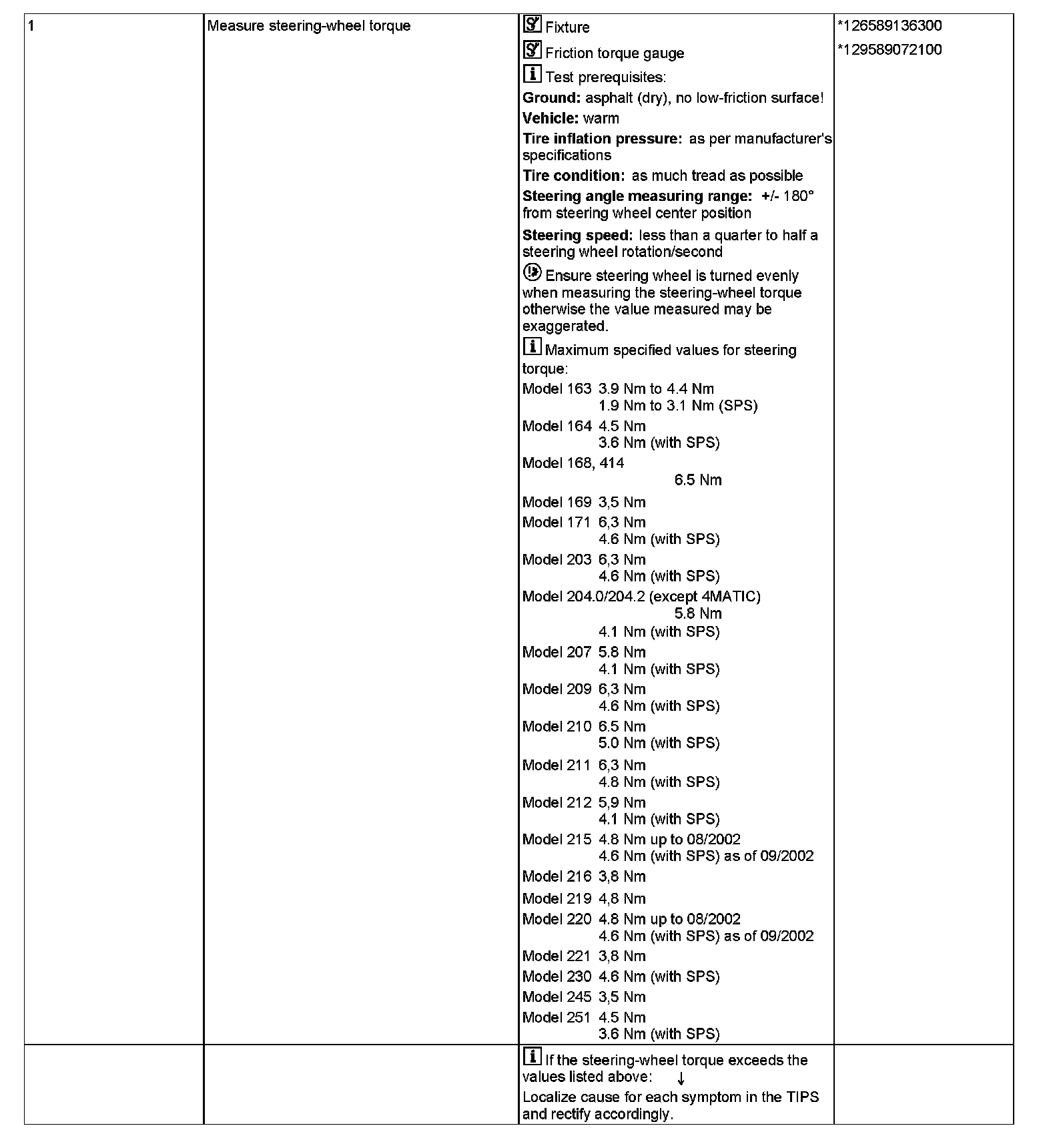

Check steering-wheel torque:

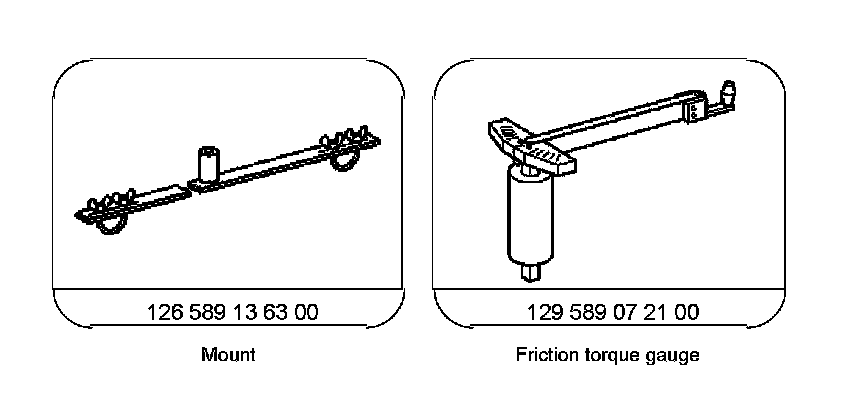

Special Tools:
