AR46.30-P-0100TS Checking Oil Pressure of Power Steering Pump

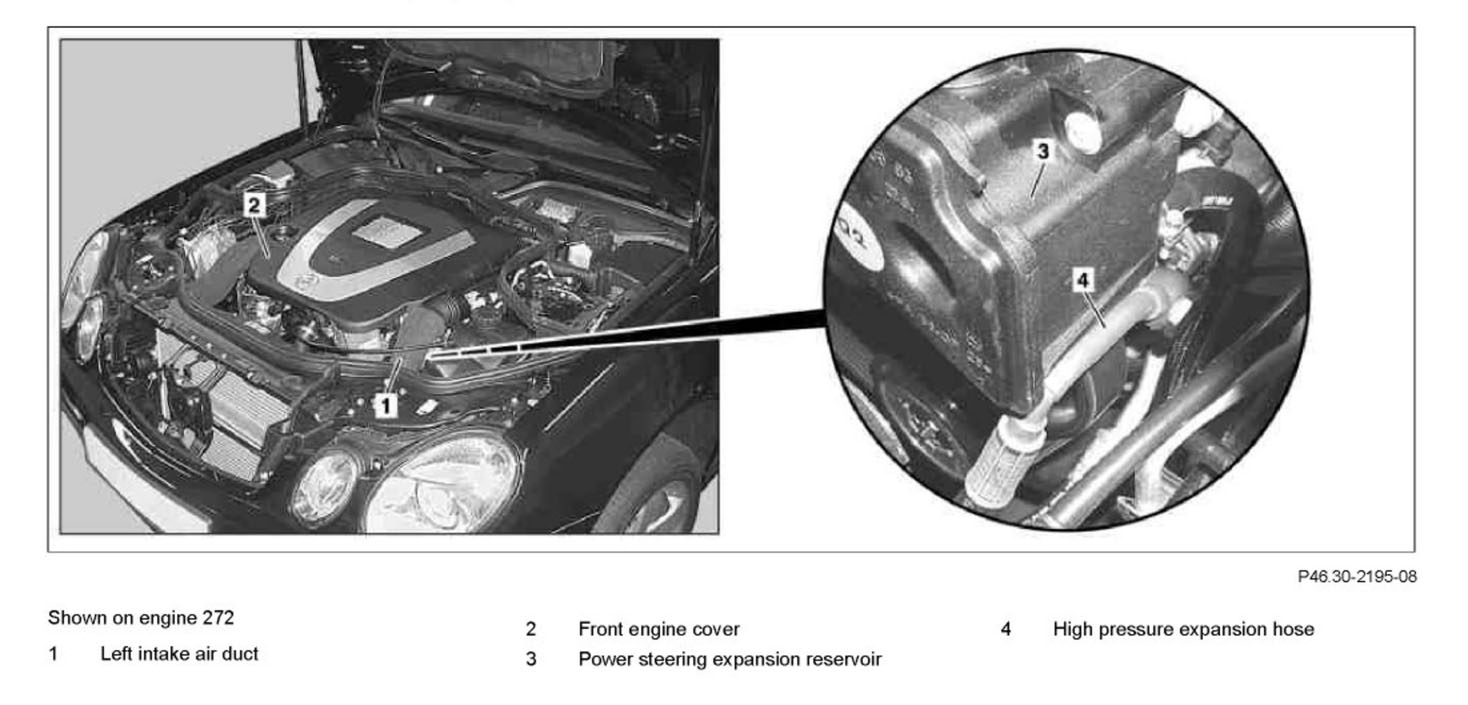

Component Identification:

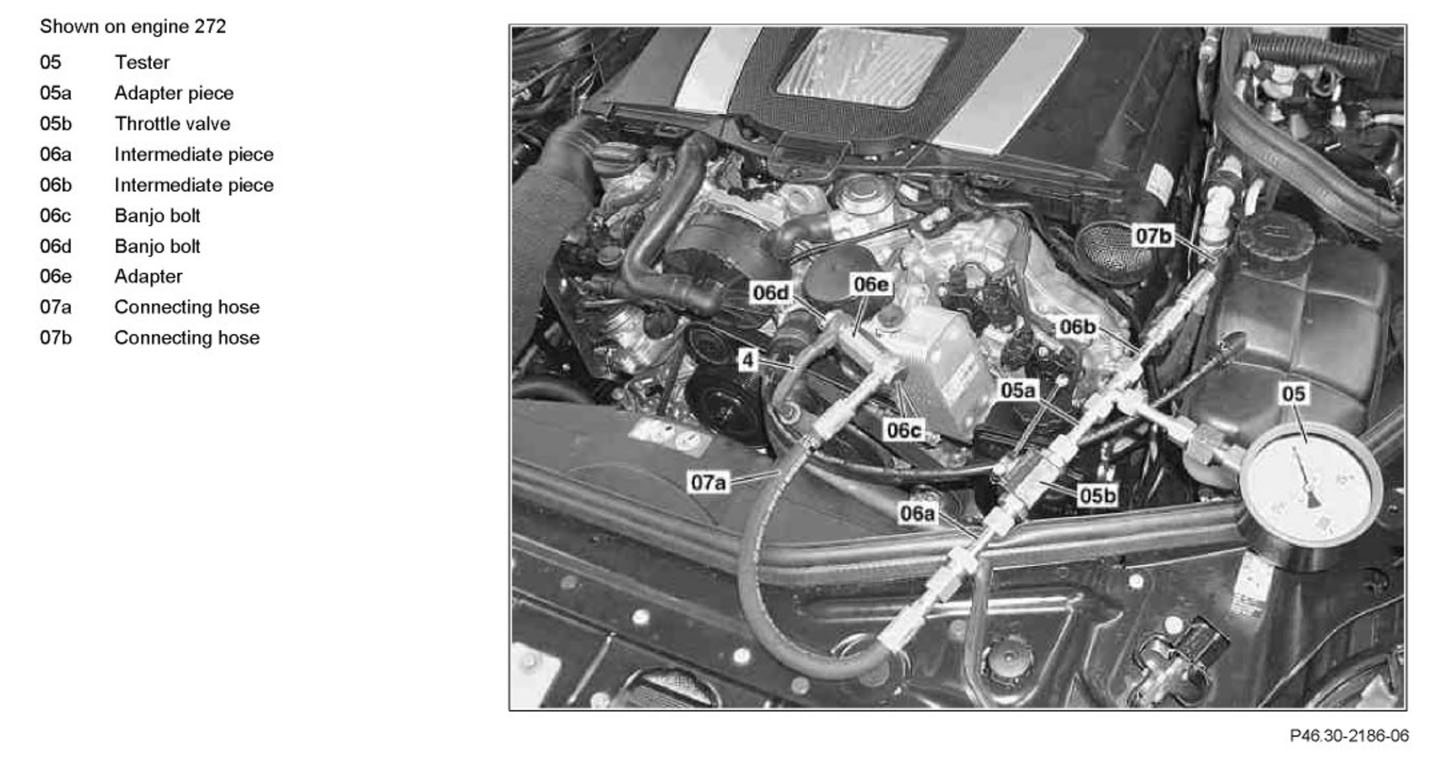

Component Identification:

Steps 1-5:

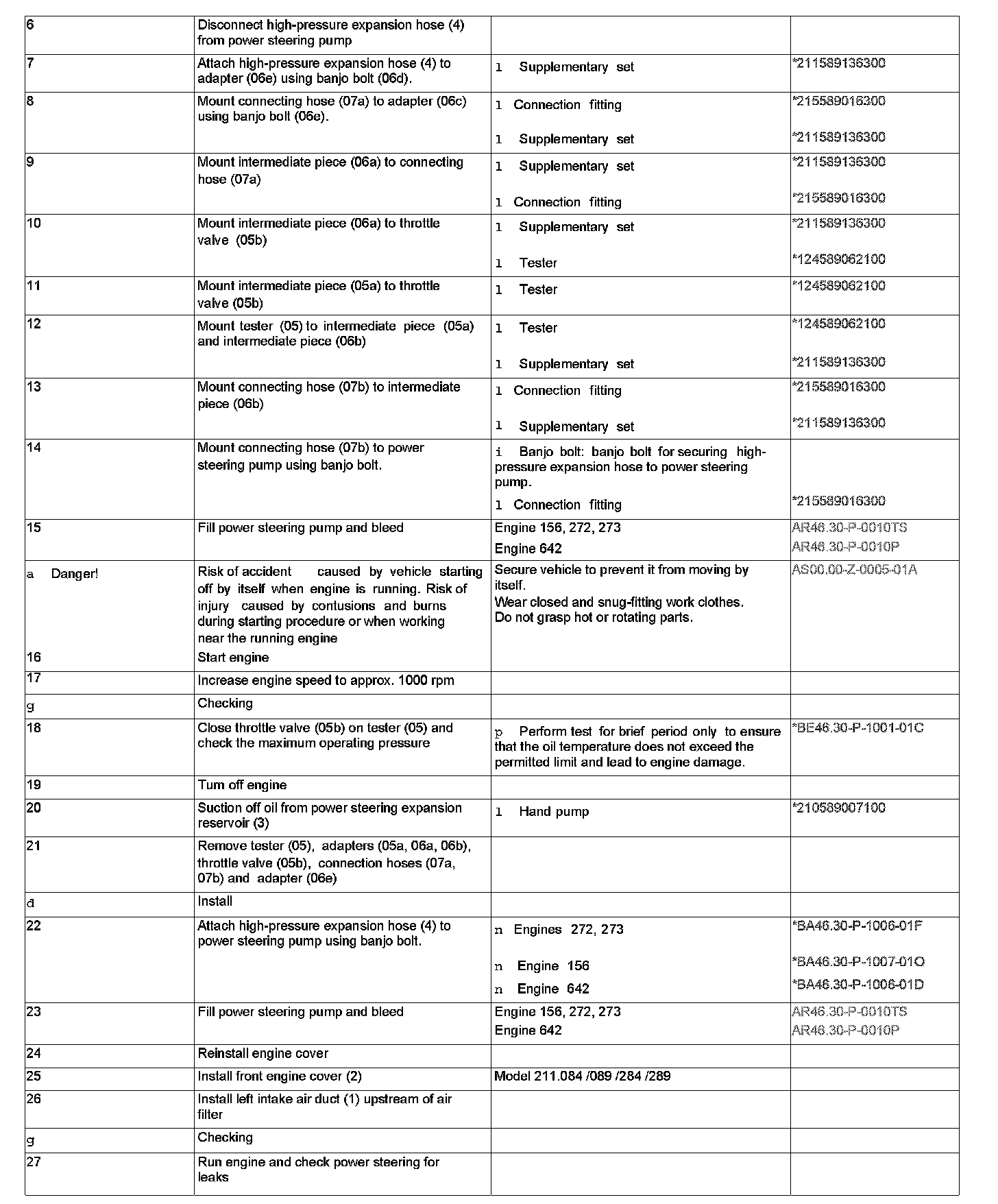

Remove/install Steps 6-27:

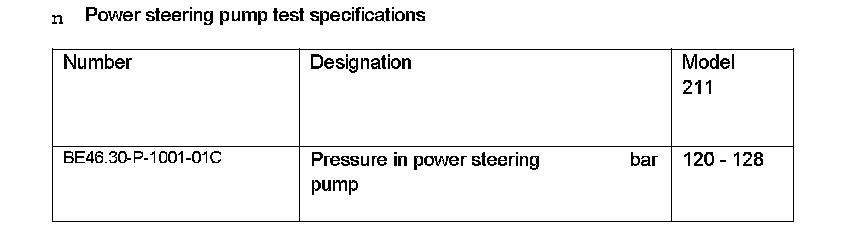

Power steering pump test specifications:

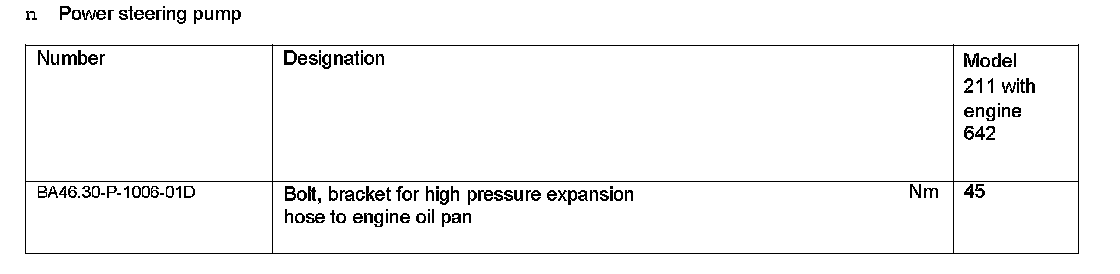

Power steering pump:

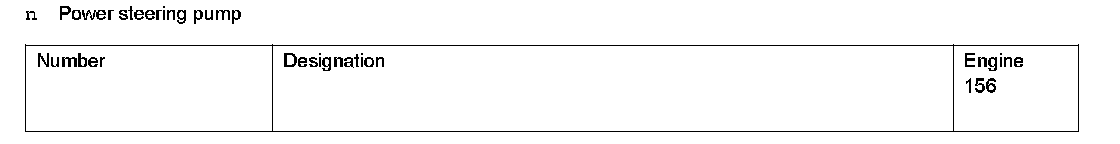

Power steering pump:

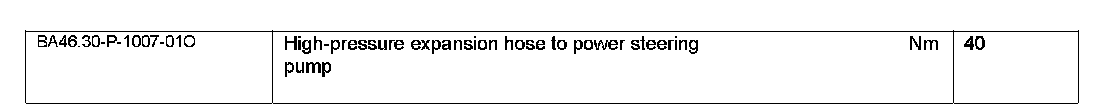

Power steering pump:

Power steering pump:

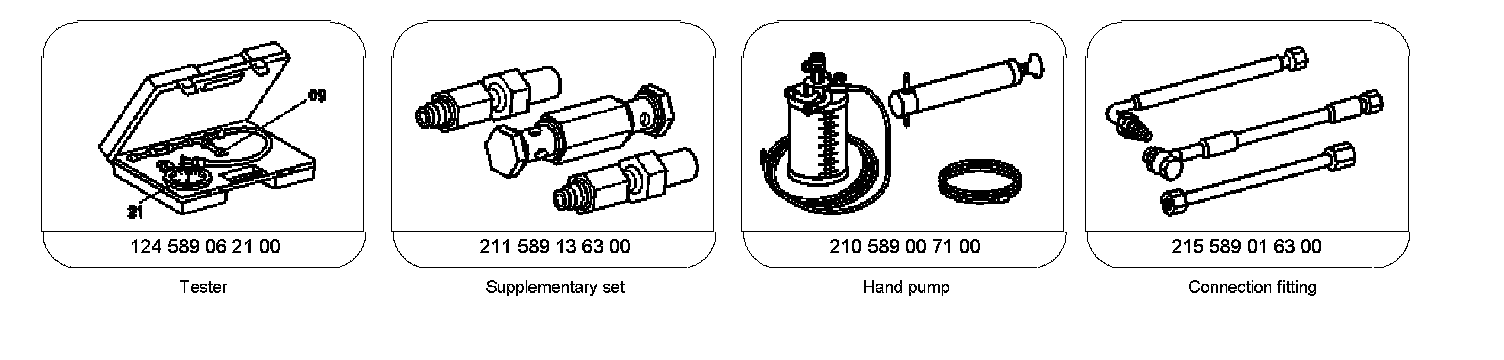

Special Tools:
