E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Power Steering
>>
Power Steering Pump
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR46.30-P-0500TI Remove/install
power steering pump

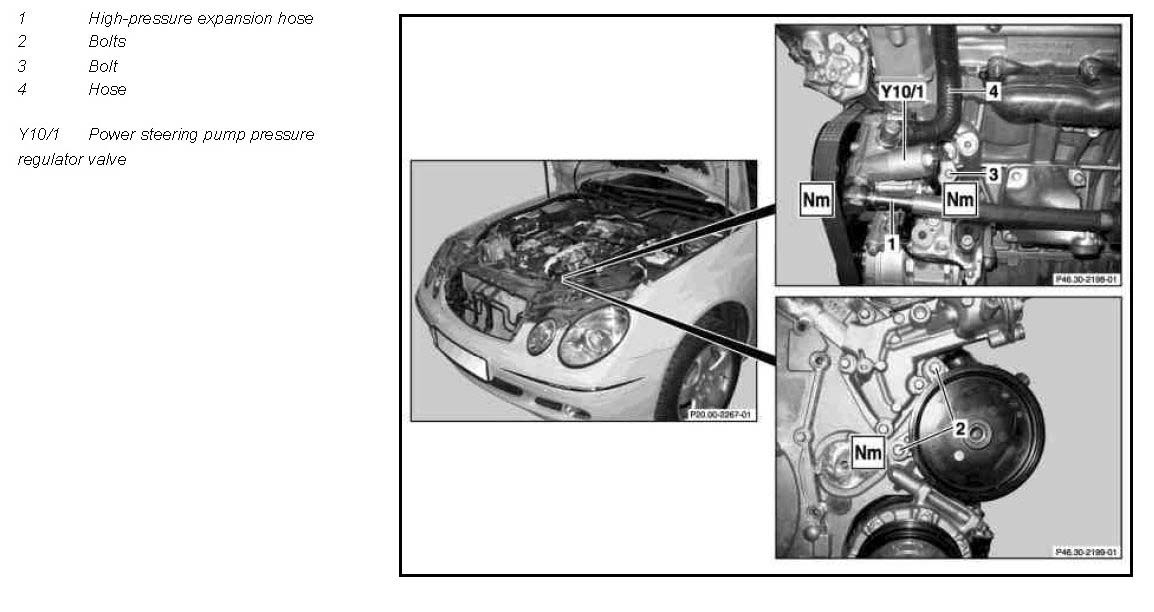

Component Identification:

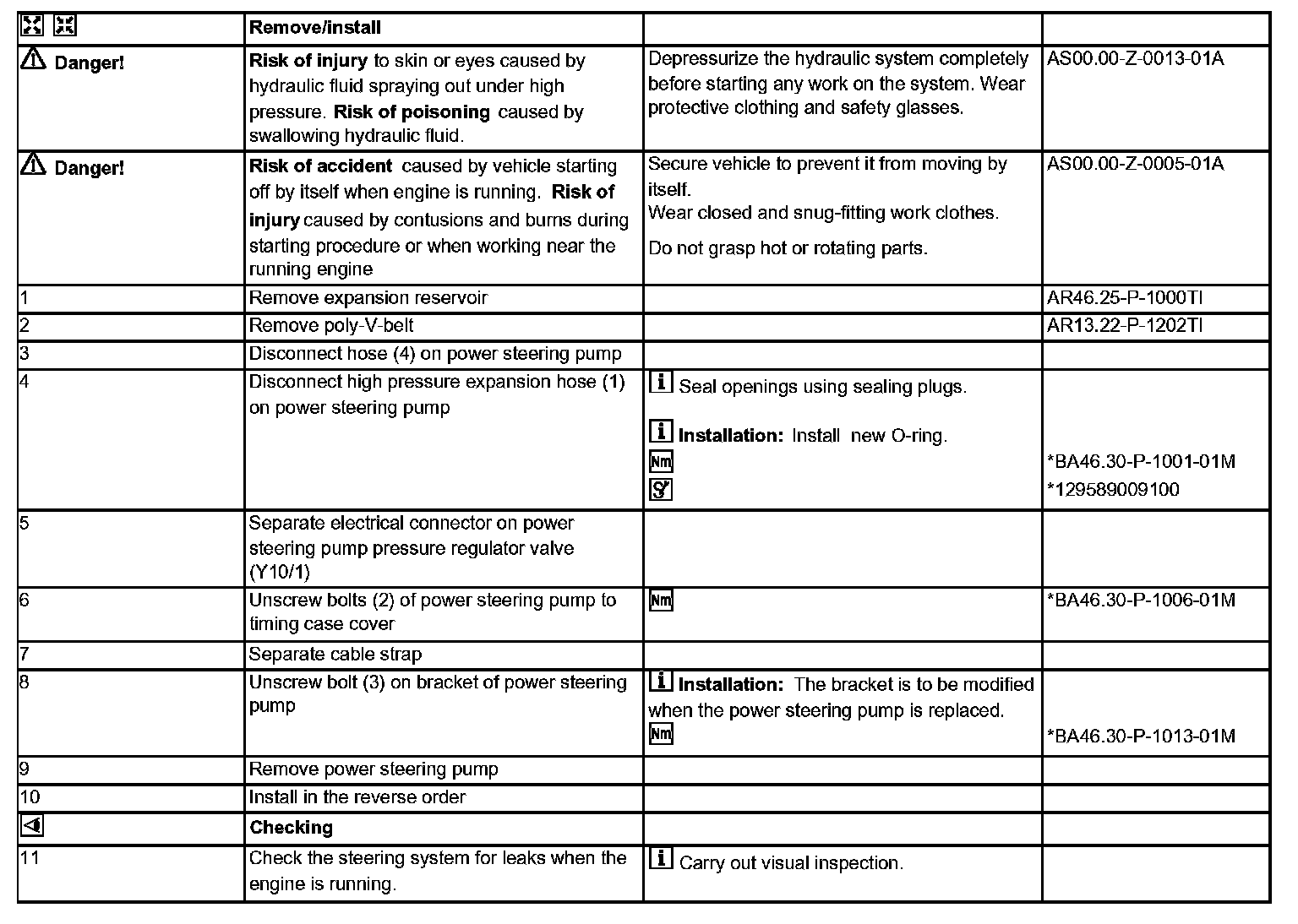

Remove/install Steps 1-11:

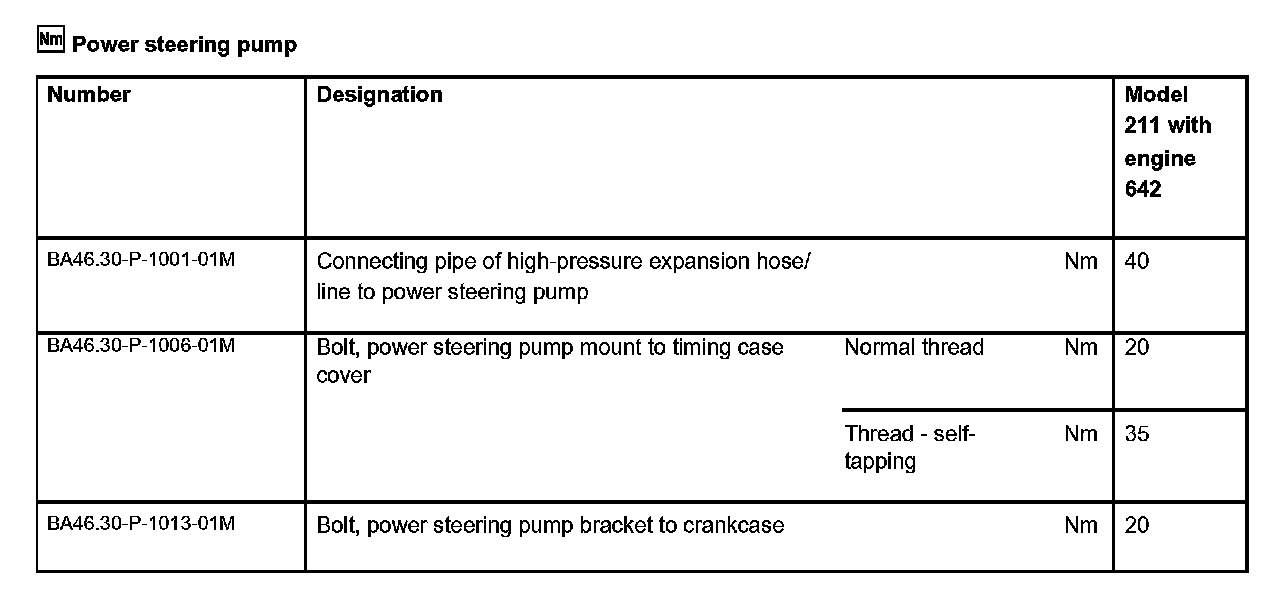

Power steering pump:

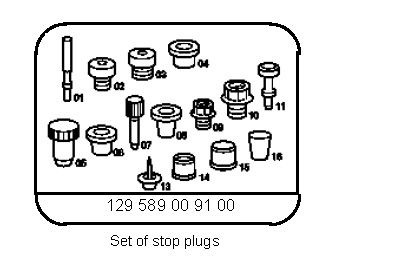

Special Tools:
