Power Steering Fluid Cooler: Service and Repair



AR46.25-P-3020TS Remove/install power steering radiator

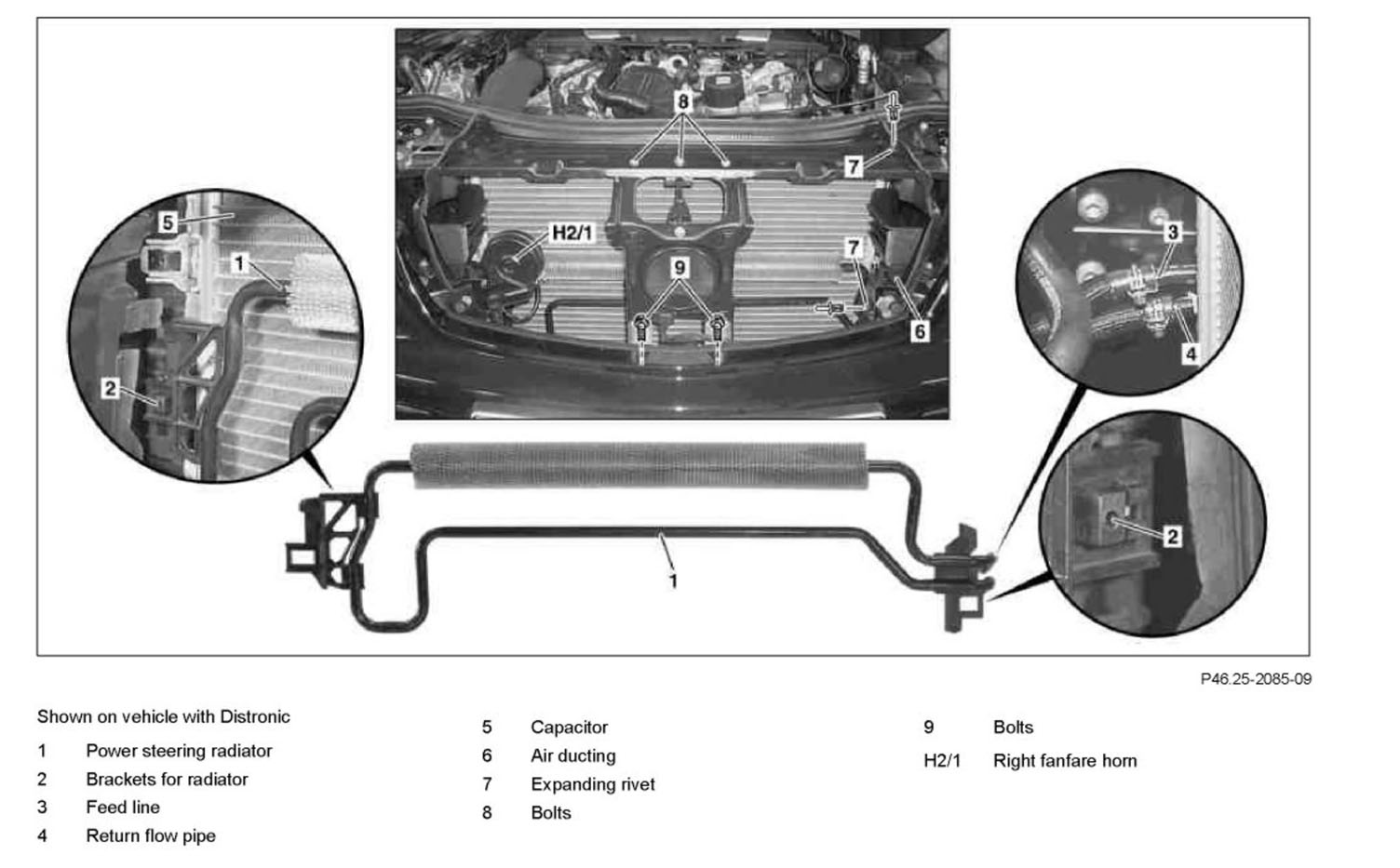

Component Identification:

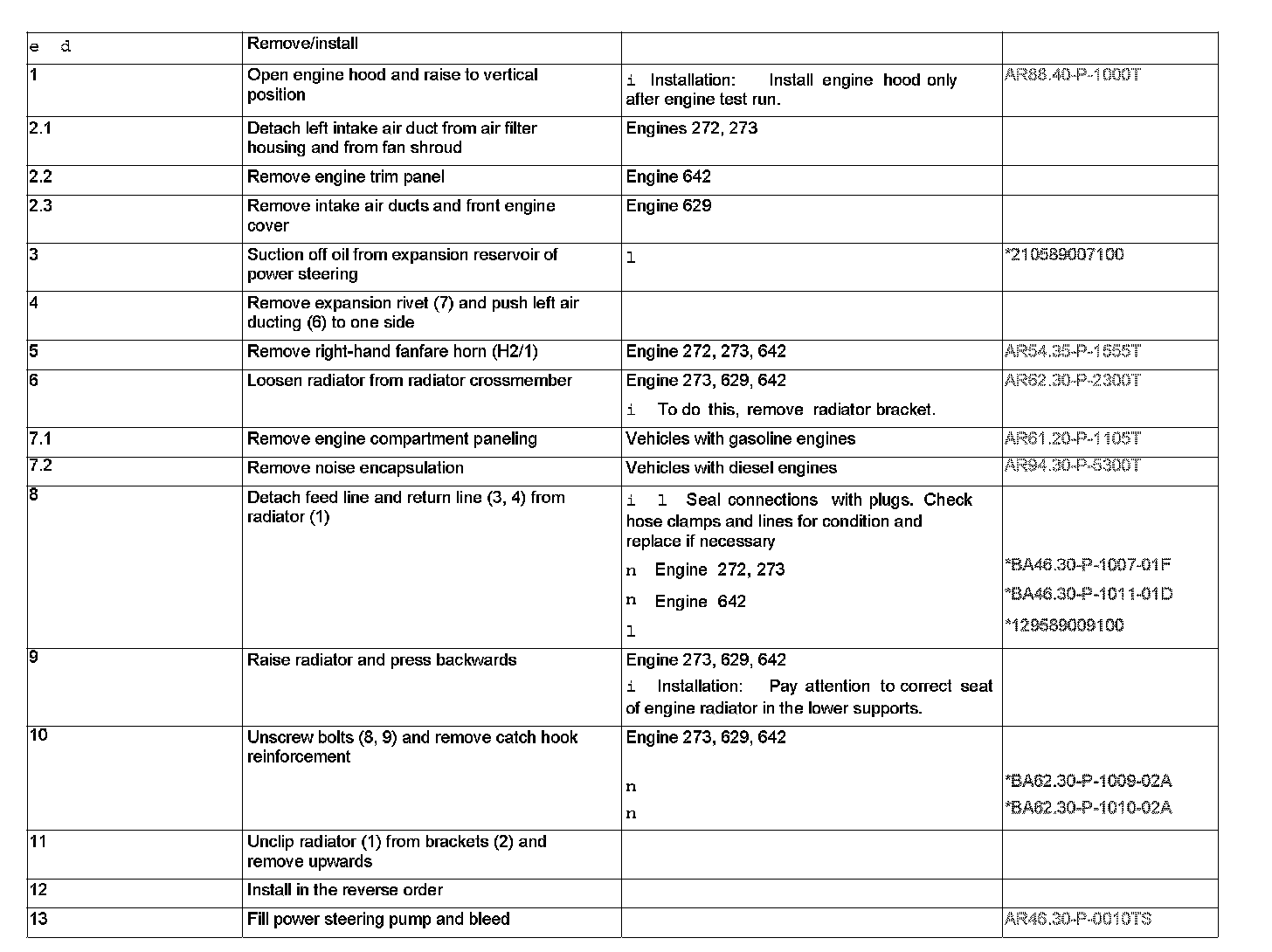

Steps 1-13:

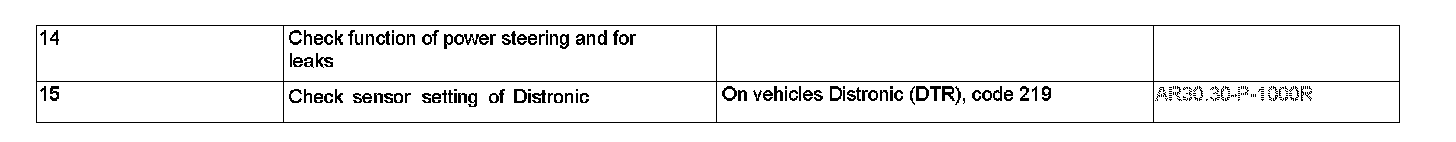

Remove/install Steps 14-15:

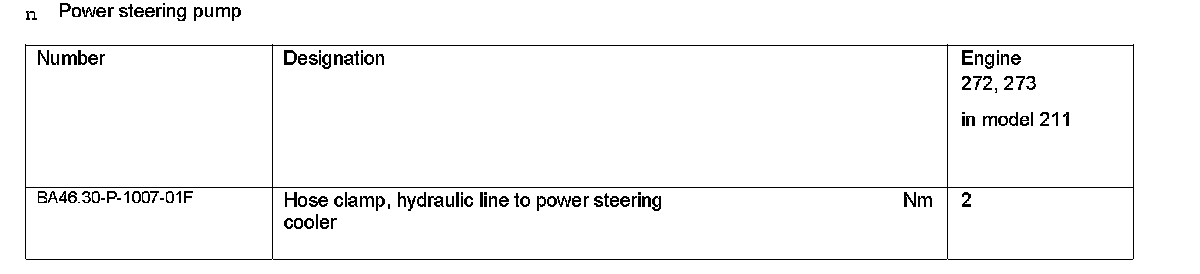

Power steering pump:

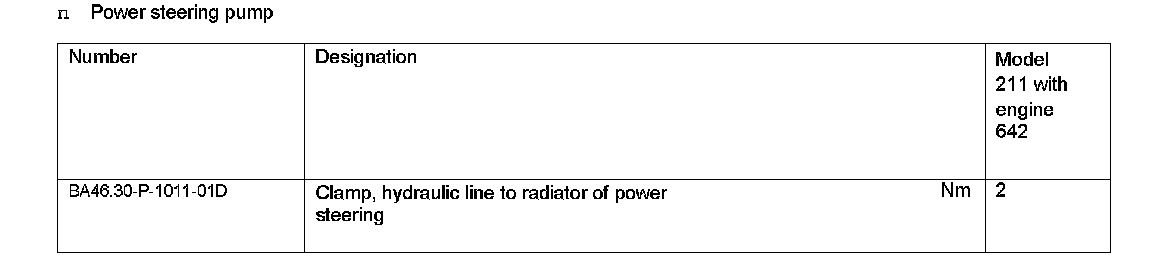

Power steering pump:

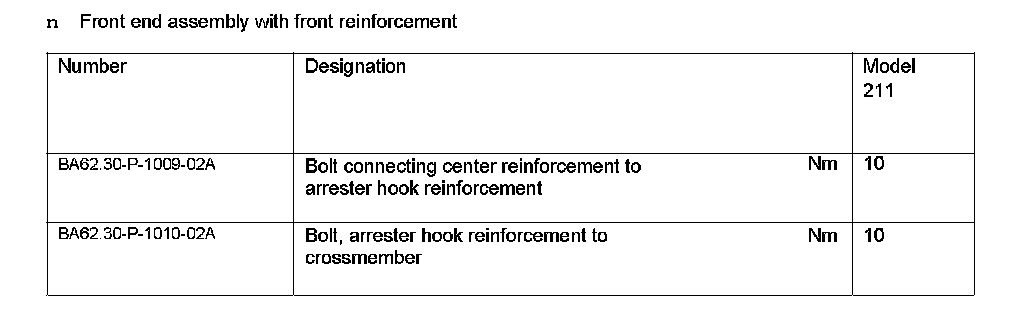

Front end assembly with front reinforcement:




Special Tools:
