AR40.20-P-0263T Adjust Camber and Caster At The Front Axle



AR40.20-P-0263T Adjust camber and caster at the front axle

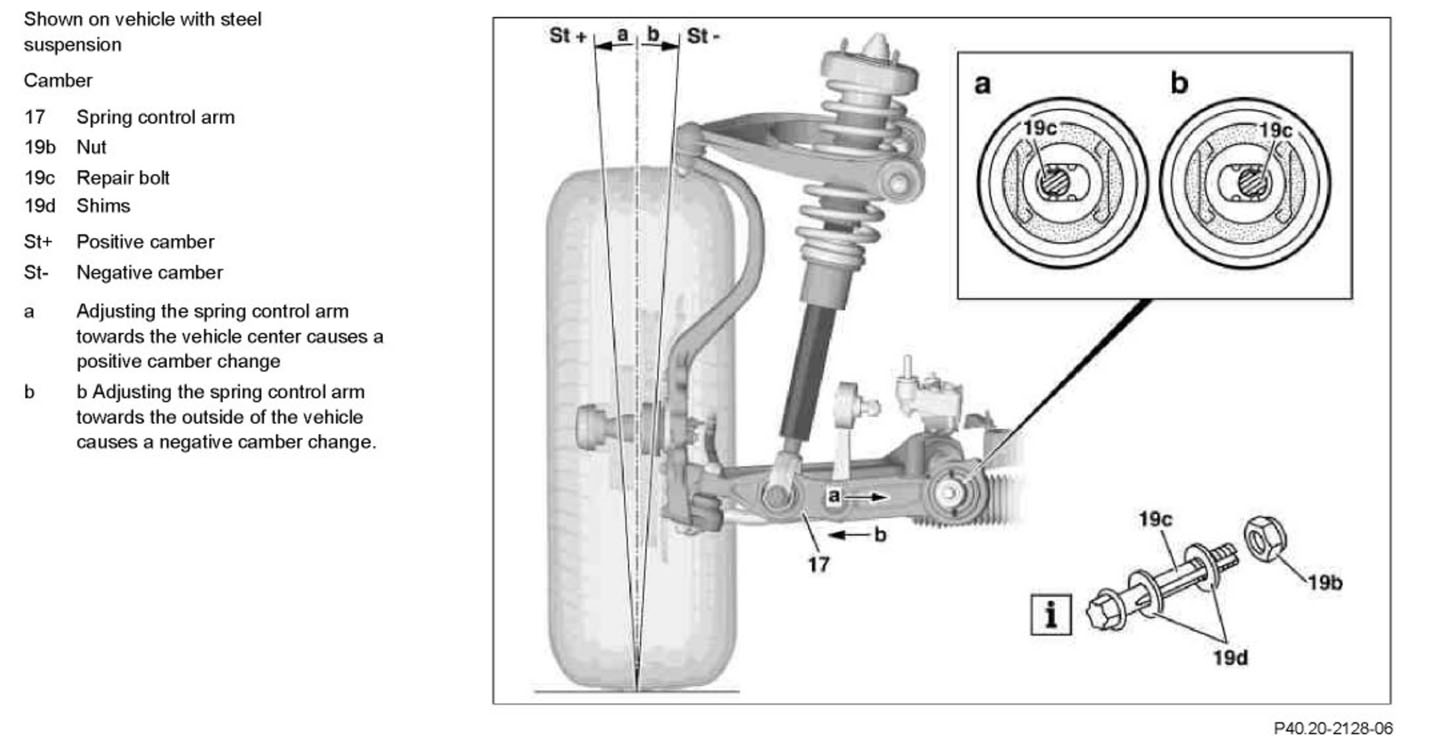

Component Identification:




Component Identification:




Step 1:




Remove/install Steps 2-3:

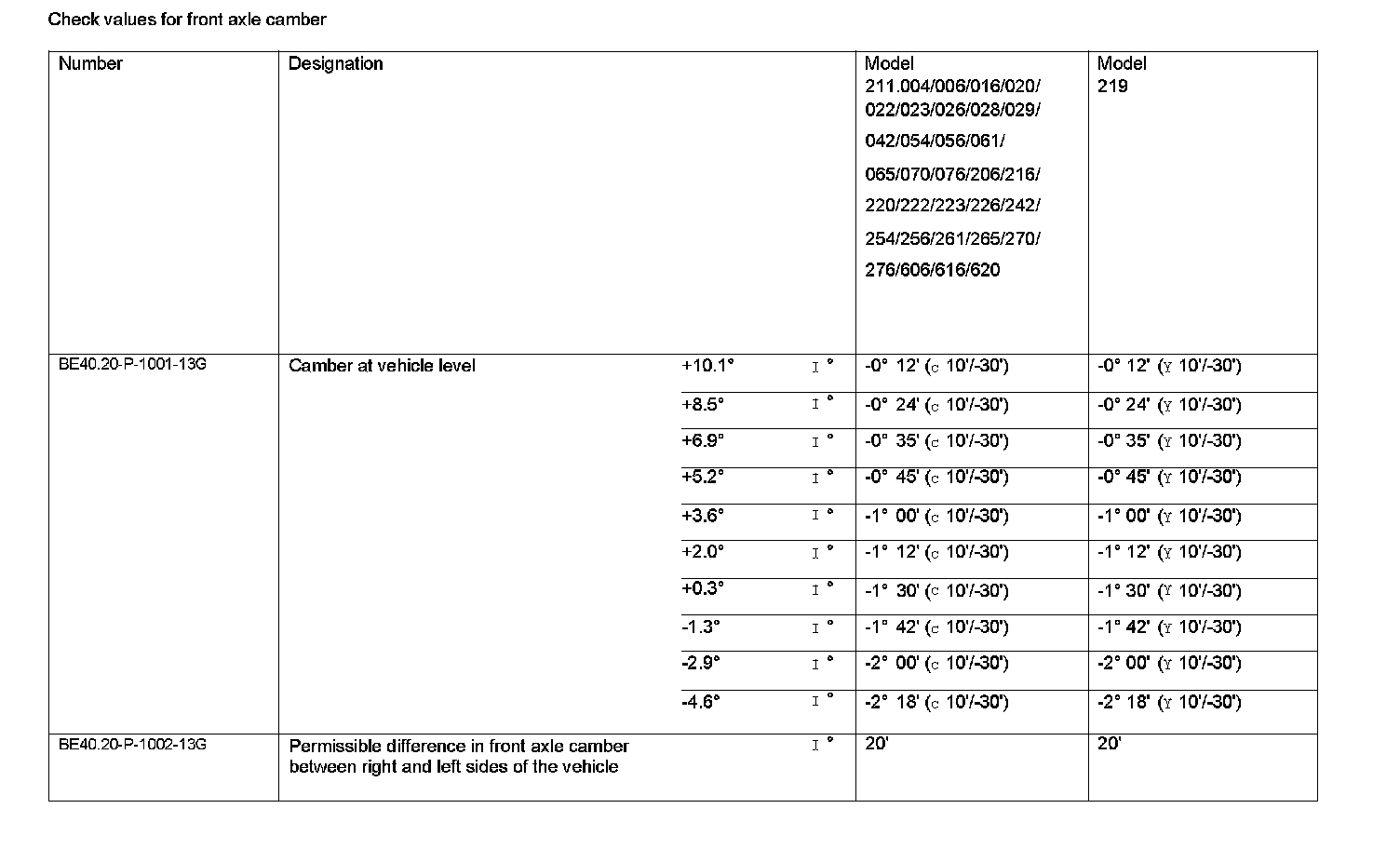

Check values for front-axle camber:




Check and adjustment values for caster:




Wheel location, hub:




Wheel location, hub:




Wheel location, hub:
