Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Lock >> Ignition Lock Cable >> Service and Repair

Ignition Lock Cable: Service and Repair



AR27.60-P-0122T Remove/install ignition lock control cable

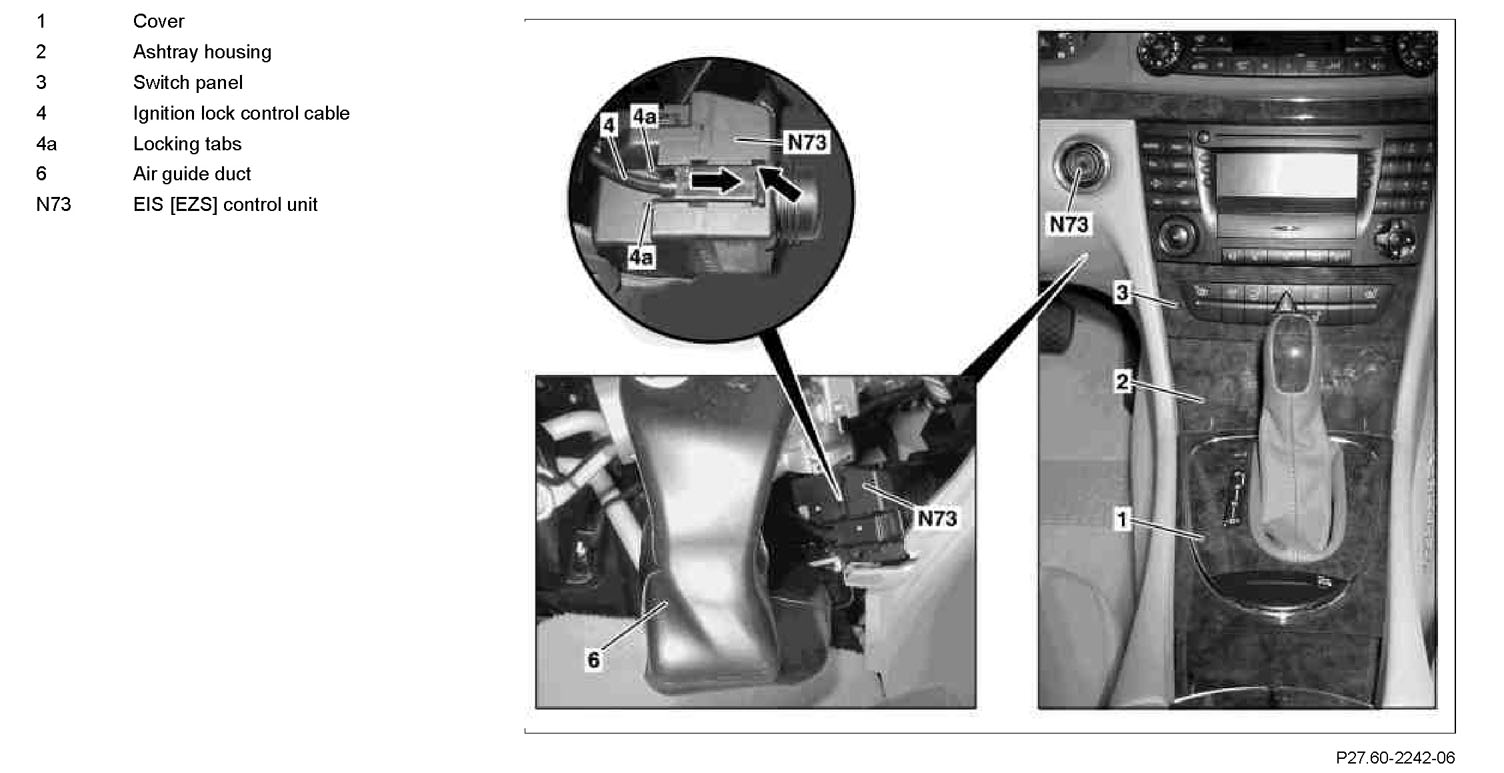

Component Identification:

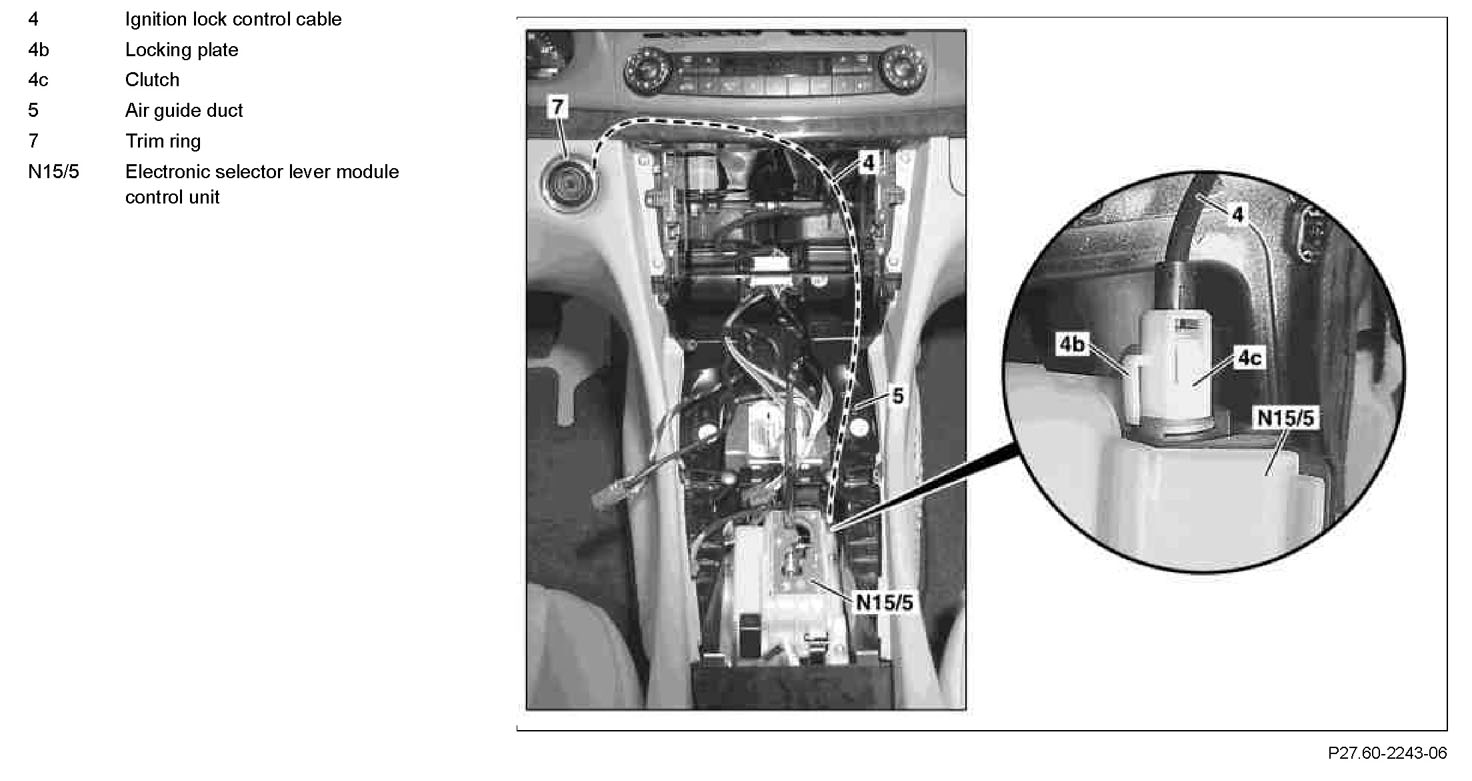

Component Identification:

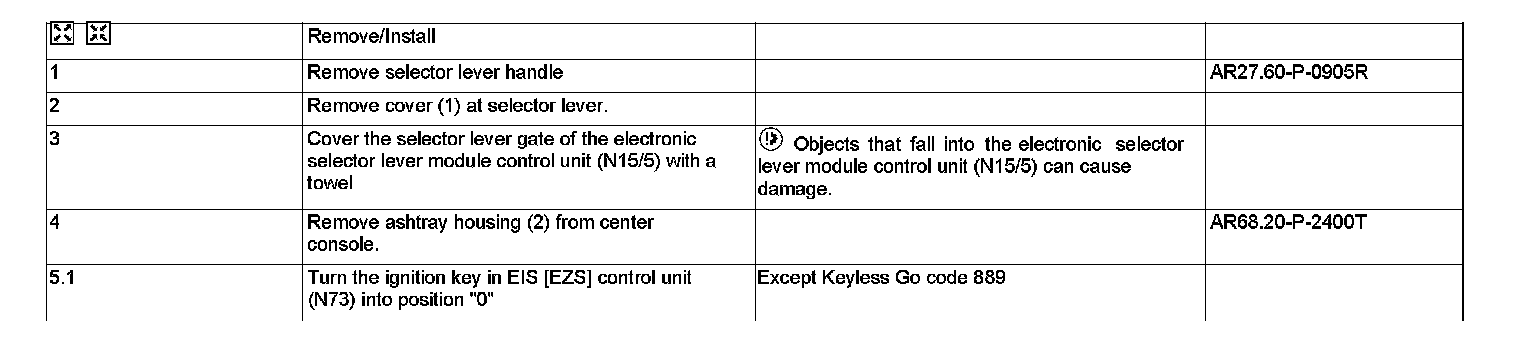

Steps 1 - 5.1:






Steps 5.2 - 17:

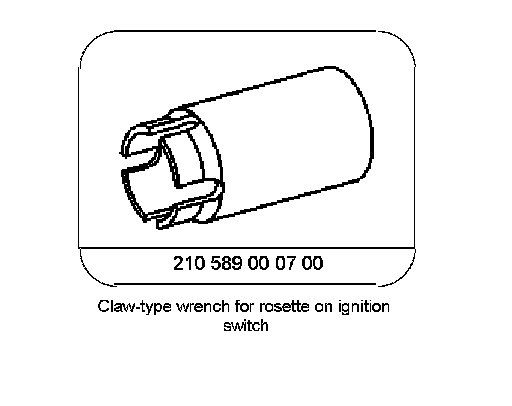

Special Tools:
