AR54.10-P-1000TX Remove/Install 12 Volt Socket
Component Identification:

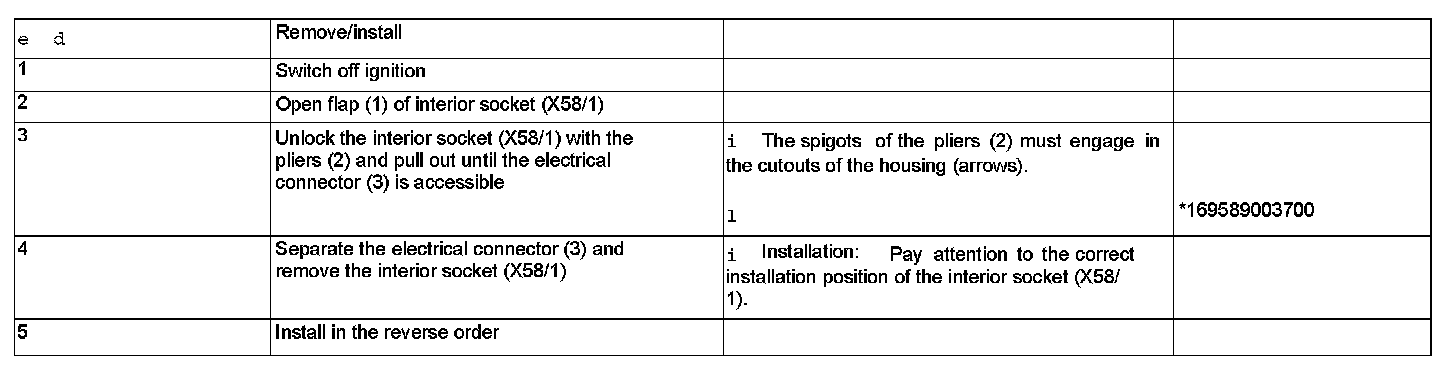

Steps 1 - 5:

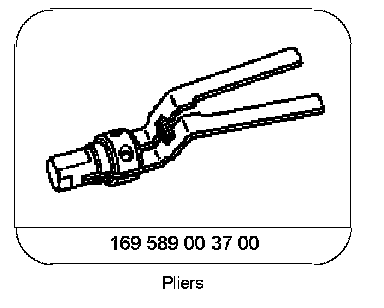

Special Tools:
