AR15.40-P-5012TI Test Backup Fuse For Alternator
AR15.40-P-5012TI Test Backup Fuse For Alternator
AR15.40-P-5012TI Test backup fuse for
alternator

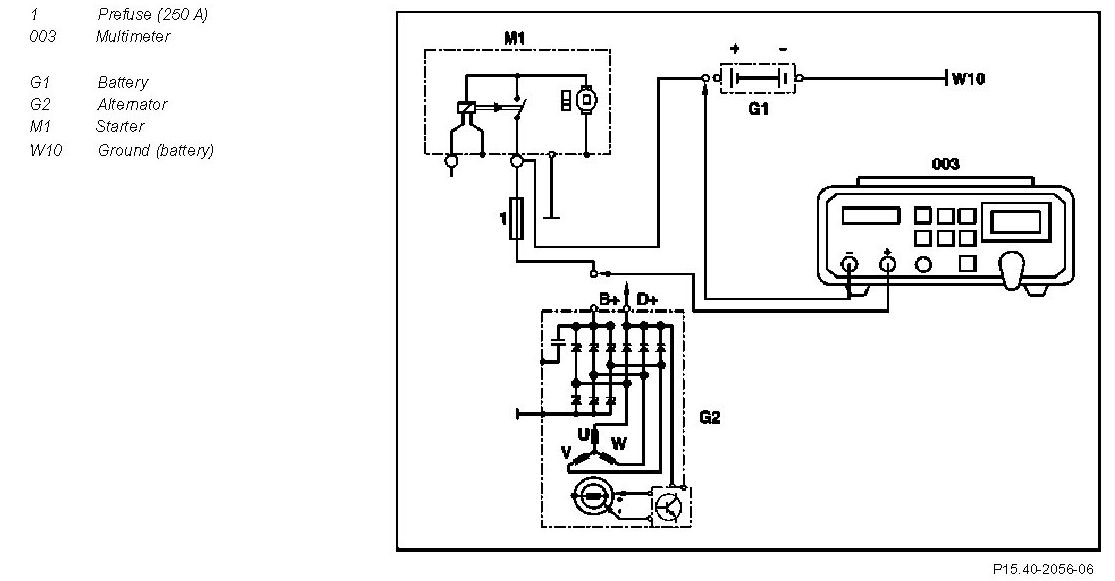

Component Identification:

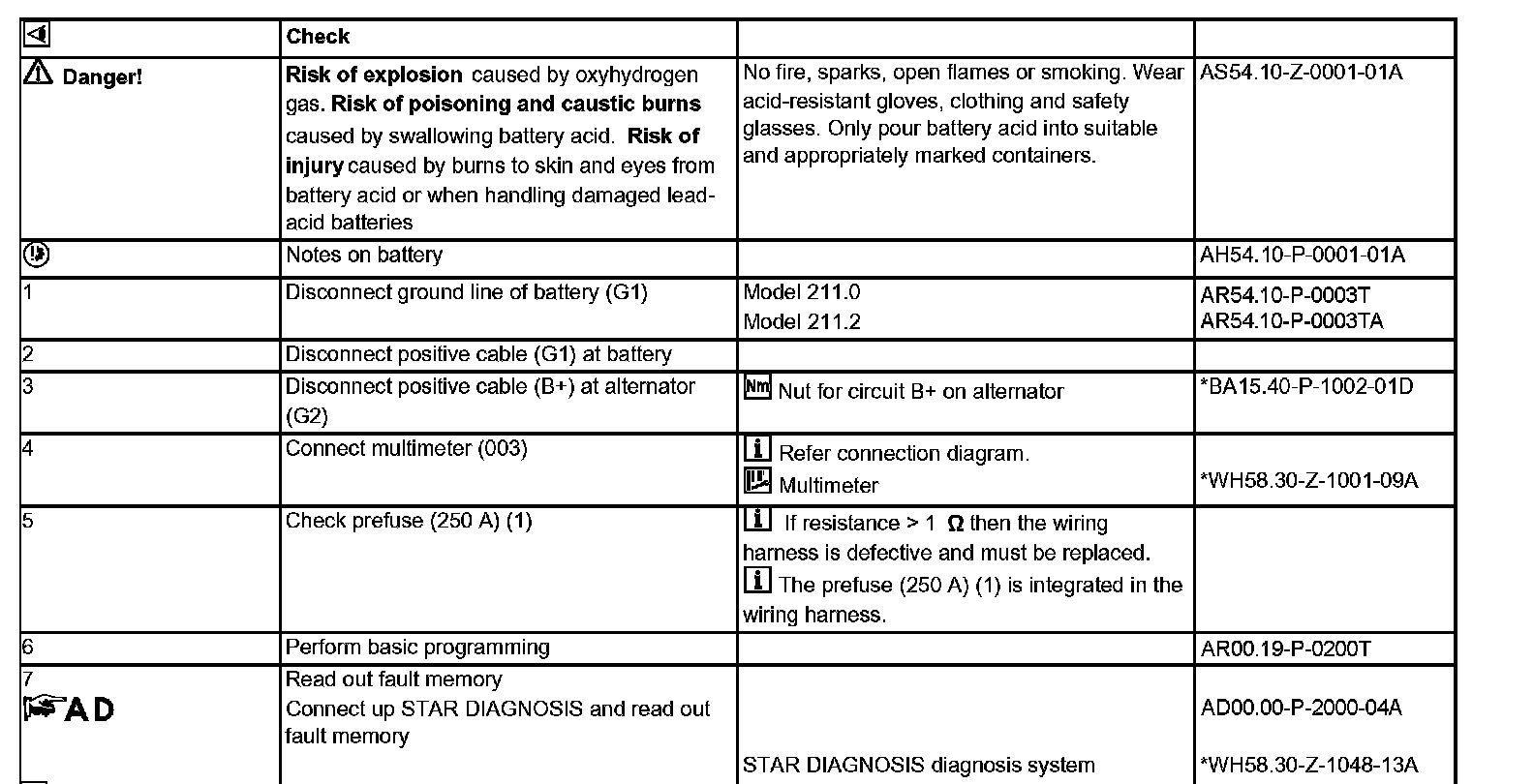

Steps 1-7:

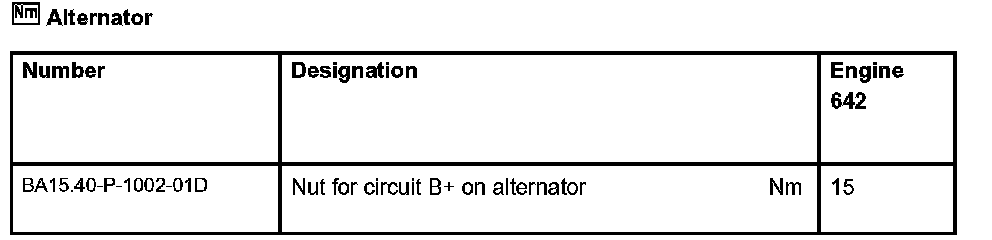

Alternator:
Commercially available tools:
